Compressor Control Valve Assembly: Service and Repair

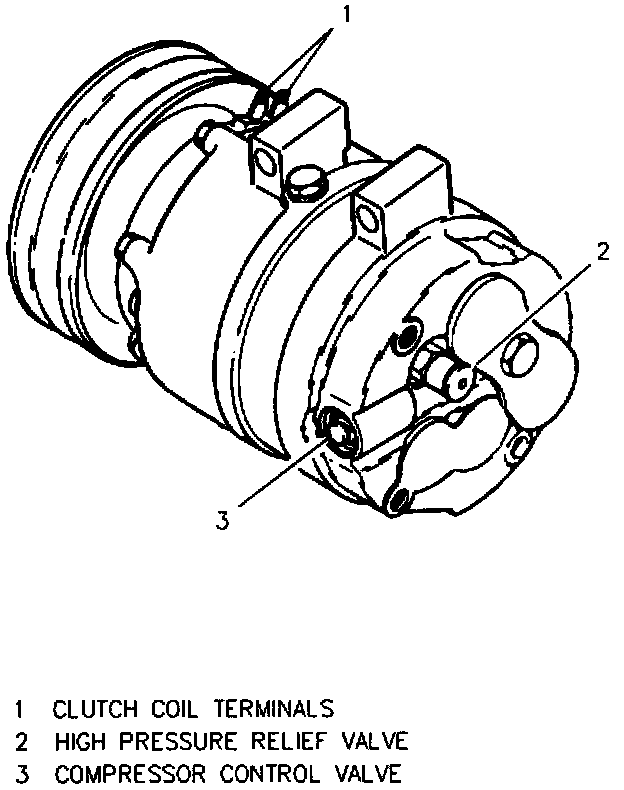

V-5 Compressor:

Tools Required:
^ J 39500 R-134a Refrigerant Recovery, Recycling, and Recharging (ACR4) System
^ J 5403 Internal Snap Ring Plier

Remove or Disconnect

1. Negative battery cable.
2. Recover refrigerant.
3. Raise vehicle.
4. Control valve retaining ring using internal snap ring pliers or J 5403.
5. Control Valve.

Install or Connect

1. Control Valve.
2. Control valve retaining ring using internal snap ring pliers or J 5403.
3. Lower vehicle.
4. Evacuate and recharge refrigerant system.
5. Negative battery cable.
