Lower Intake Manifold Torque

NOTICE: Failure to tighten vertical bolts before the diagonal bolts may cause an oil leak.





^Apply sealer GM P/N 12345382 or equivalent to the lower intake manifold bolt threads.

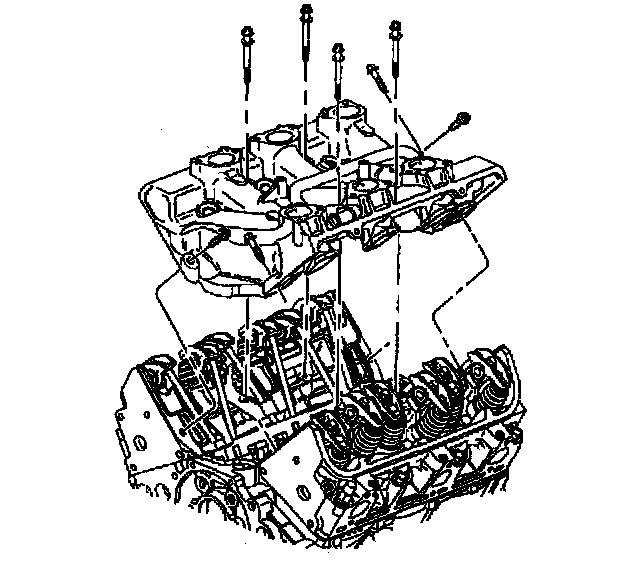

^Install the lower intake manifold bolts.

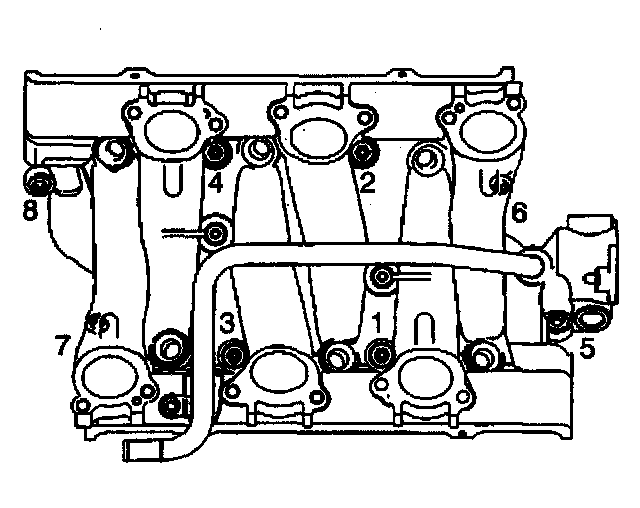

^Tighten the bolts in sequence to 13 Nm (115 inch lbs.).
