Park Brake Cable Replacement (Front)

REMOVAL PROCEDURE
1. Raise the vehicle and suitably support.

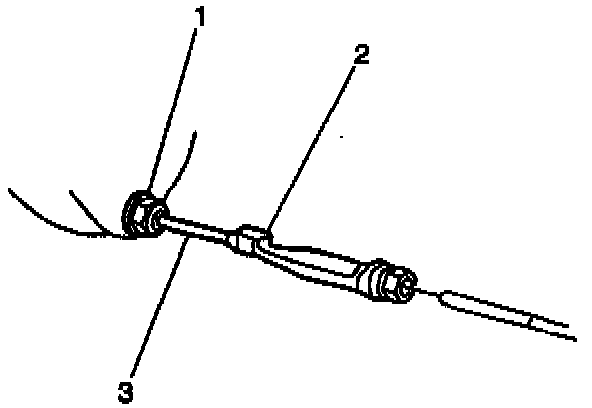

2. Loosen the adjuster (2).
3. Disconnect the front cable (3) from the adjuster (2).
4. Disconnect the cable retaining nut (1) at the underbody.
5. Lower the vehicle.

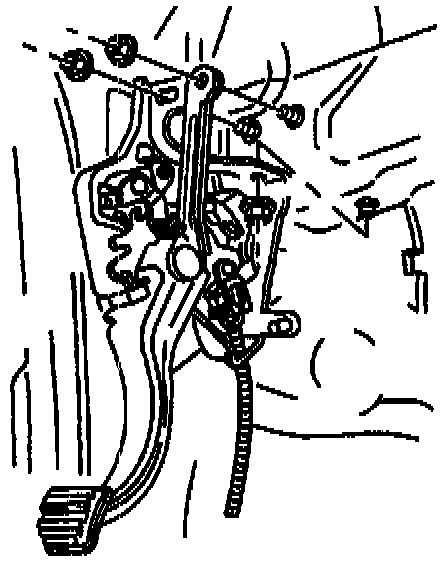

6. Remove the cable (1) from the lever assembly.

INSTALLATION PROCEDURE

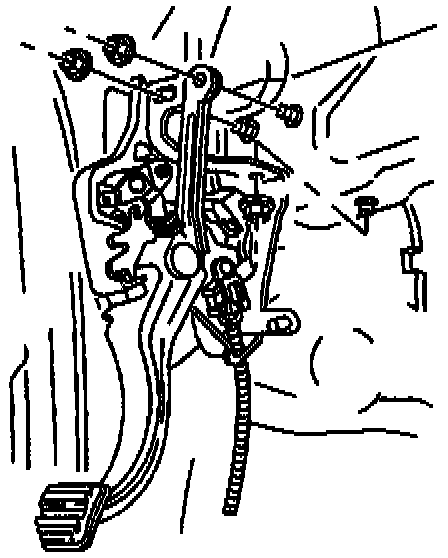

1. Connect the cable (1) to the lever assembly.
2. Raise and suitably support the vehicle.





3. Connect the cable retaining nut (1) at the underbody.
^ Tighten Torque nut to 22 Nm (16 ft. lbs.).

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

4. Connect the front cable (3) to the adjuster (2).
5. Adjust the parking brake cable. Refer to Park Brake Cable Inspection (Adjustment).
