Drive Belt Tensioner Installation

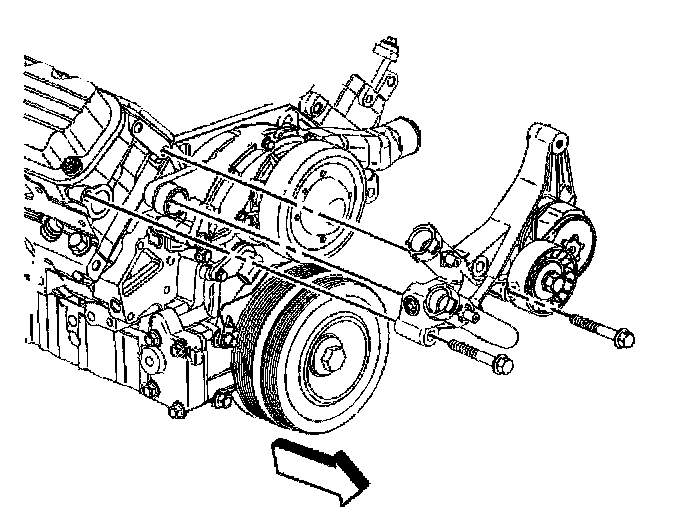

1. Install the drive belt tensioner.
2. Install the heater water bypass inlet pipe to the lower intake manifold and to the tensioner.
3. Install the tensioner bolts.
^ Tighten the bolts to 50 Nm (37 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.
