Cabin Temperature Sensor / Switch: Service and Repair

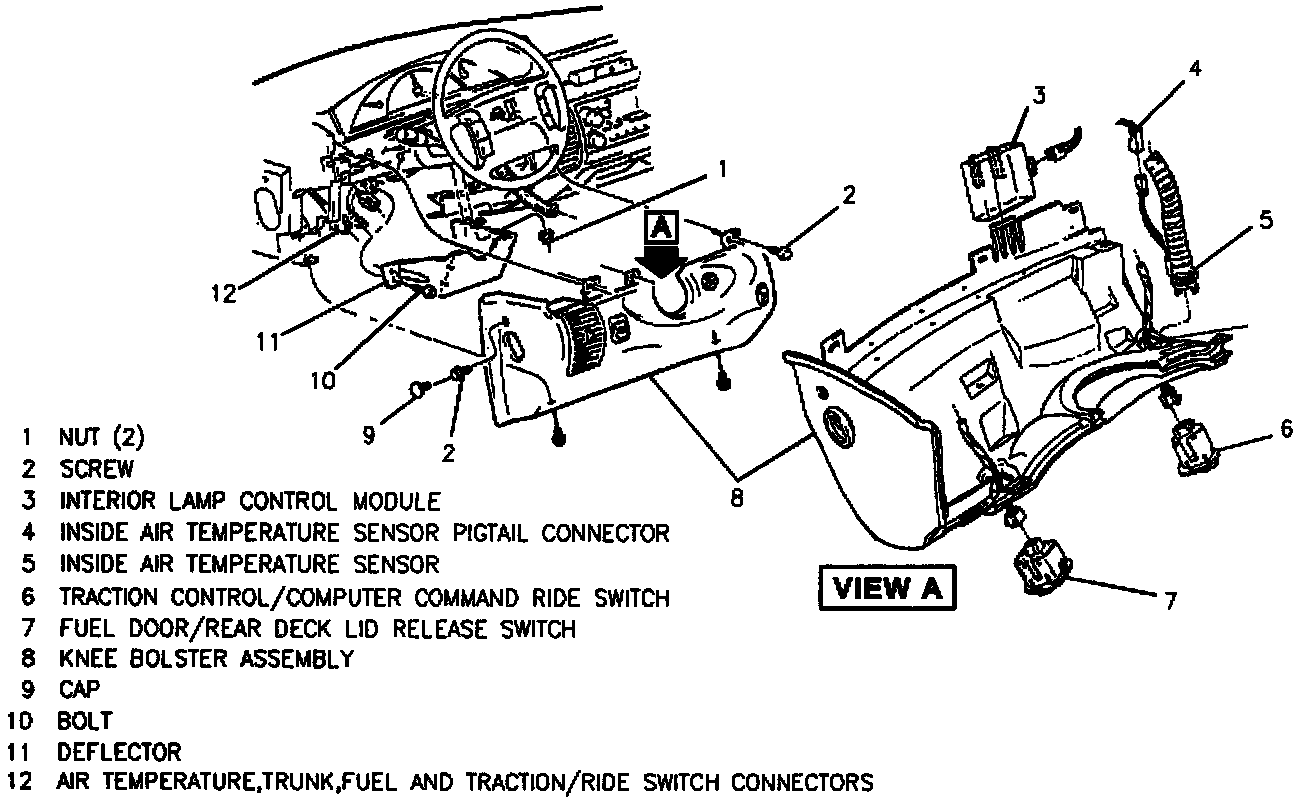

Inside Air Sensor And Aspirator:

Remove or Disconnect

1. Wood grain panel.
- Two screws in IP compartment and pop out.
2. Knee bolster assembly.
3. Sensor Grille.
4. Sensor from knee bolster heater and A/C control.
- Release retainer clips through grille hole.
5. Electrical connector.
6. Sensor from aspirator tube.

Install or Connect

1. Sensor to aspirator tube.
2. Electrical connector.
3. Sensor to knee bolster.
4. Sensor grille to knee bolster.
5. Knee bolster to IP.
6. Wood grain panel to IP.
