Remove or Disconnect

Description:

Removal Procedure
1. Disable the SIR system. Refer to Disabling the SIR System.
2. Remove the IP upper trim pad. Refer to Instrument Panel, Gauges, and Console.

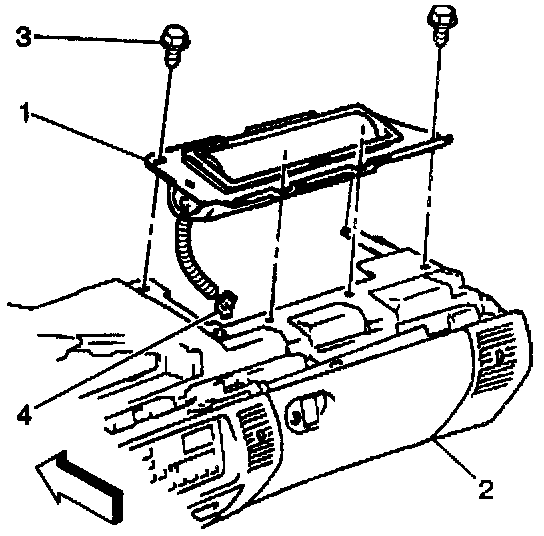

3. Remove the inflatable restraint IP module mounting fasteners (3).
4. Remove the inflatable restraint IP module (1) from the IP (2).
