Manual Valve Link and Oil Dam Disassemble

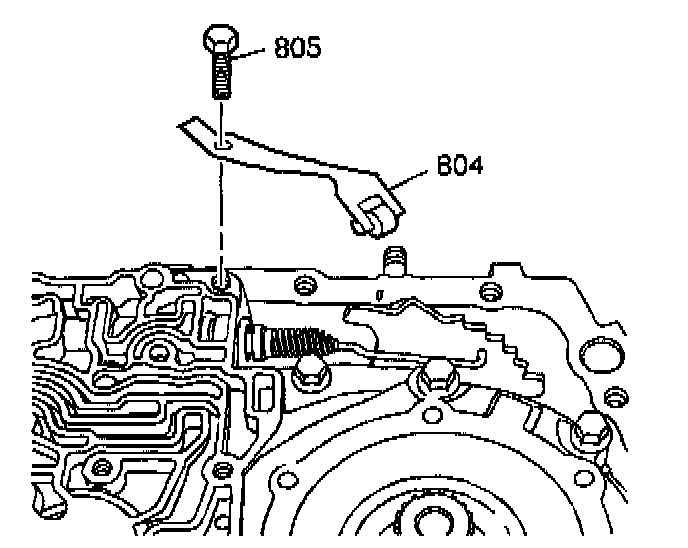

1. Remove the manual shift detent bolt (805).
2. Remove the manual shift detent assembly (804).

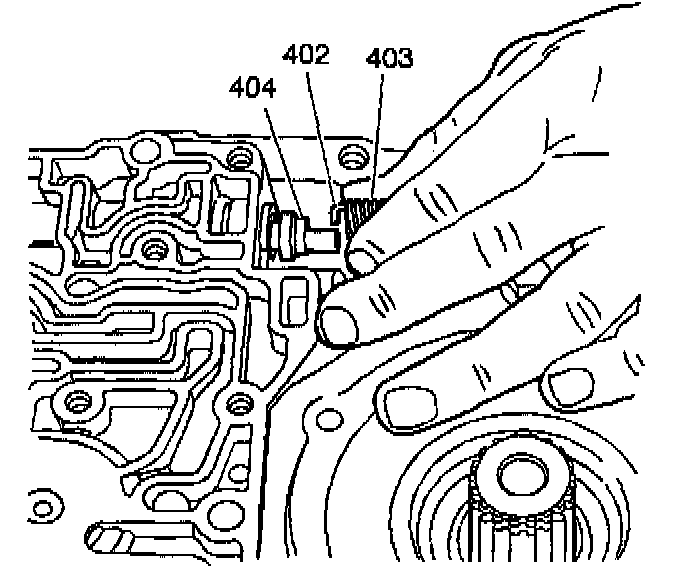

3. Compress the manual valve link spring (403).
4. Lift the manual valve link (402) off of the manual valve (404).
5. Position the manual valve link (402) so that the valve will not interfere with the case cover removal.

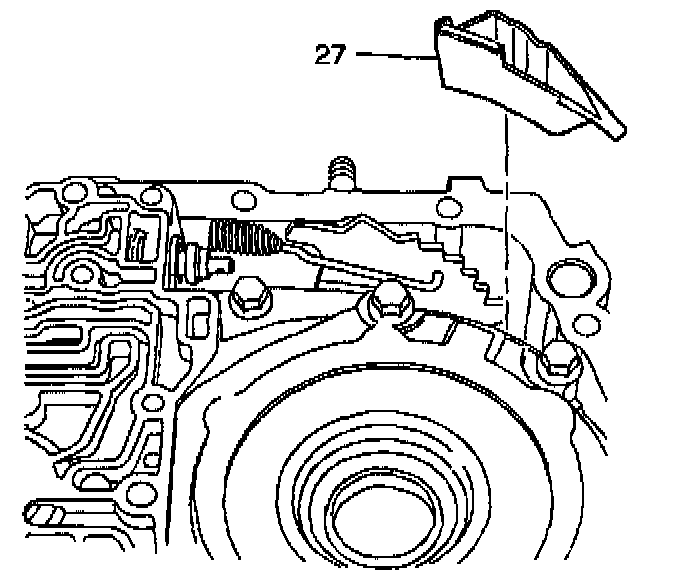

6. Remove the oil dam (27) from the case.

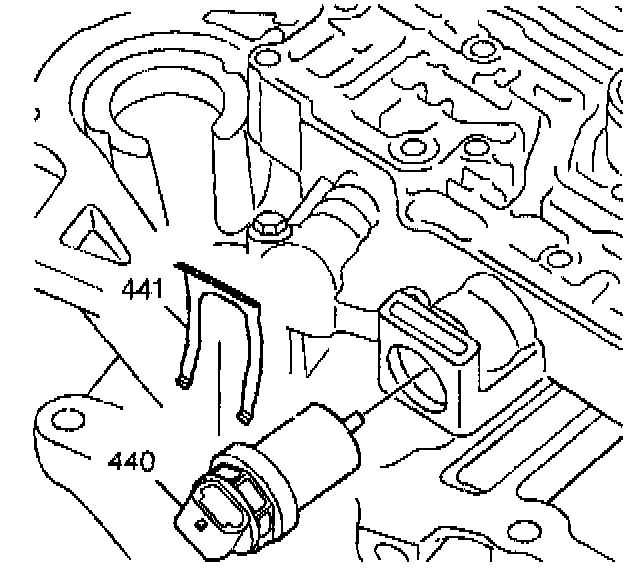

7. Using a small screwdriver, pry the input speed sensor clip (441) out of the case cover (400).

IMPORTANT: Handle the speed sensor carefully, it is very delicate

8. Carefully pull the input speed sensor (440) out of the case cover (400).
