Power Window Switch

Removal Procedure

1. Disconnect the negative battery cable.

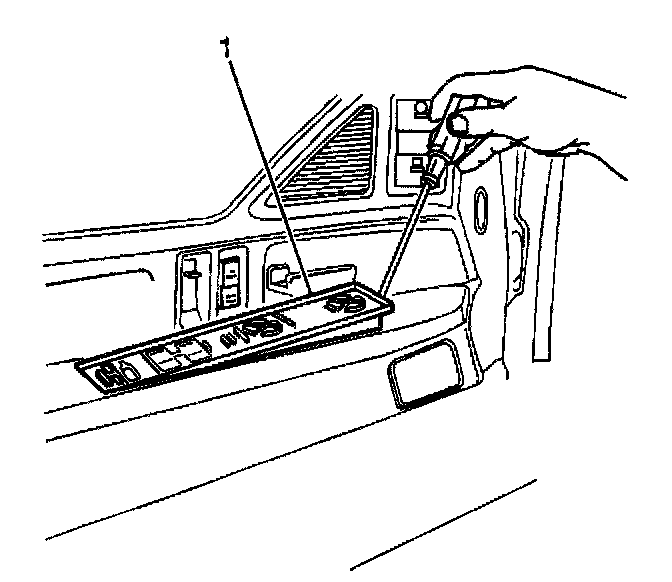

2. Insert a small, flat-blade tool between the switch plate and the trim panel.
3. Disengage the switch plate retainer clips.
4. Lift the switch plate (1).

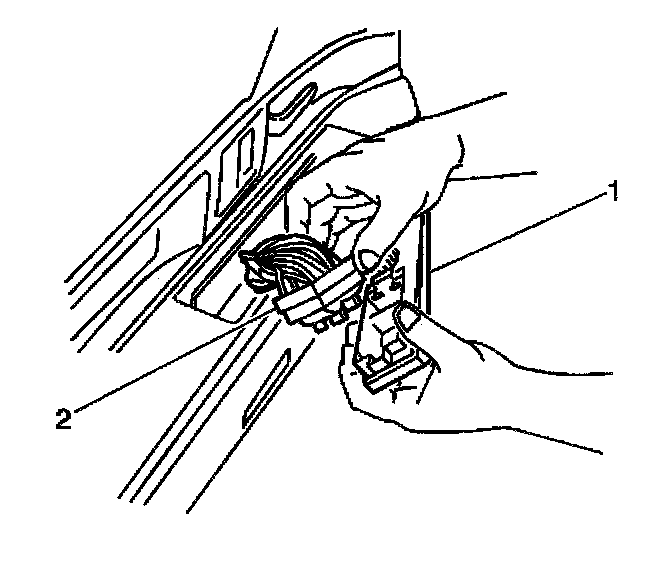

5. Disconnect the electrical connectors (2).
6. Disengage the window switch retainers.
7. Remove the window switch (1).

Installation Procedure

1. Install the window switch (2) to the switch plate (1).
2. Connect the electrical connectors.
3. Install the switch plate (1) in the trim panel.
^ Push inward the switch plate in order to secure.
4. Connect the negative battery cable.
