Front Fender Sound Insulator

REMOVAL PROCEDURE

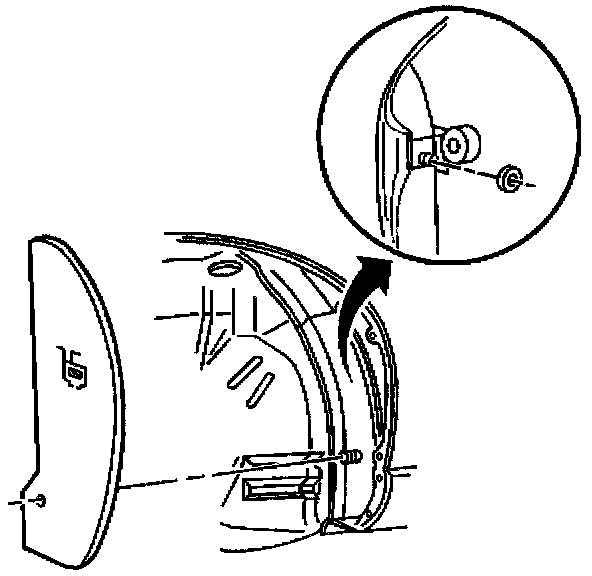

Fender Sound Insulator Replacement: Front - Removal Procedure:

1. Remove the front fender liner.
2. Remove the front fender insulator tabs.
3. Remove the front fender insulator.

INSTALLATION PROCEDURE

Fender Sound Insulator Replacement: Front - Installation Procedure:

1. Align the front fender insulator to the inner tender.
2. Install the front fender insulator tabs.
3. Align the front fender insulator to the flange of the fender to avoid interference with the front door edge.
4. Install the front fender liner.
