Outside Rear View Mirror

REMOVAL PROCEDURE

Rearview Mirror Replacement: Removal Procedure:

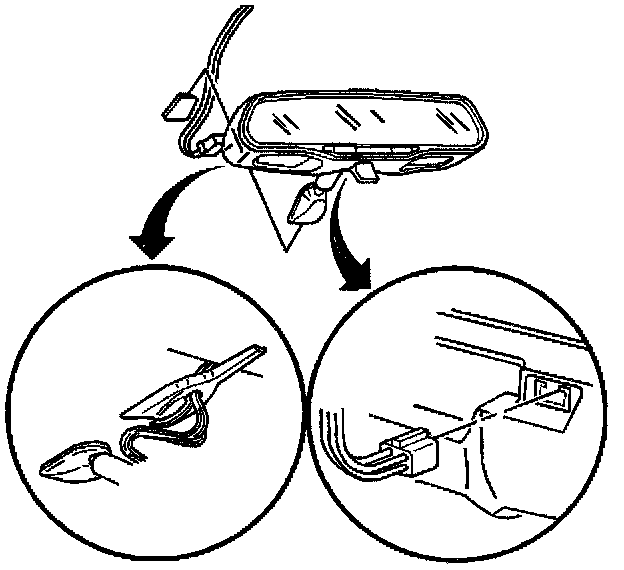

1. Remove the wire harness cover, if a lighted rearview mirror.

Rearview Mirror Replacement: Removal Procedure:

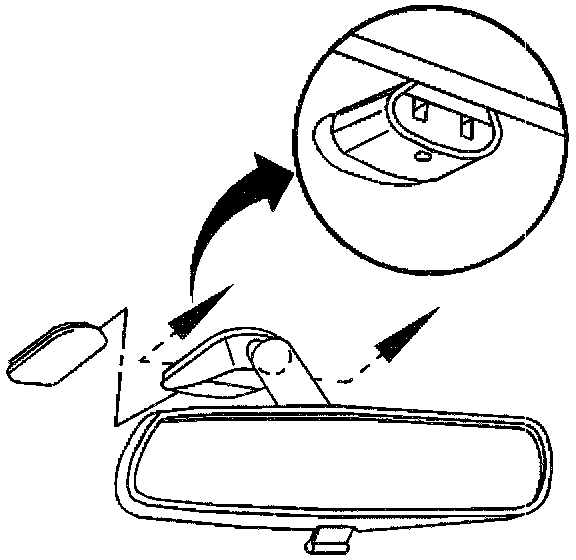

2. Remove the rearview mirror from the rearview mirror support by prying with a small flat-bladed tool.

Rearview Mirror Replacement: Removal Procedure:

3. Disconnect the electrical connector, if a lighted rearview mirror.

INSTALLATION PROCEDURE

Rearview Mirror Replacement: Installation Procedure:

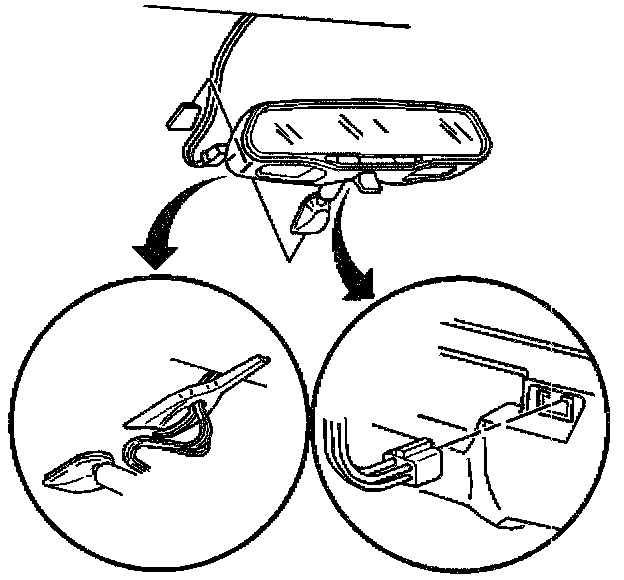

1. Connect the electrical connector, if a lighted rearview mirror.

Rearview Mirror Replacement: Installation Procedure:

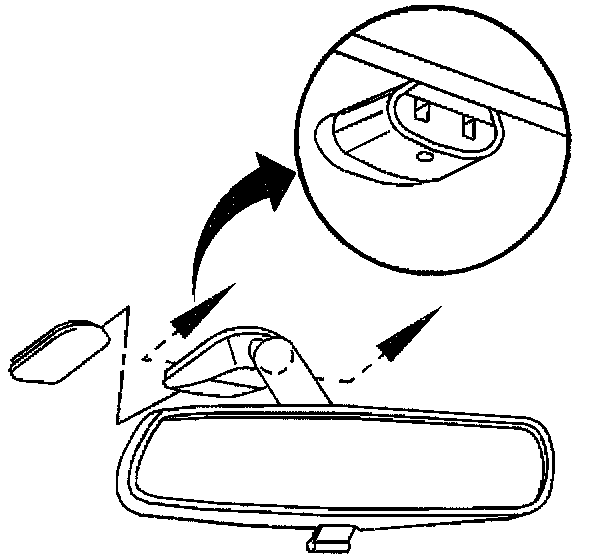

2. Install the rearview mirror to the rearview mirror support.

Snap the rearview mirror onto the support making sure the mirror is fully seated.

Rearview Mirror Replacement: Installation Procedure:

3. Install the wire harness cover, if a lighted rearview mirror.
