Connector Locations

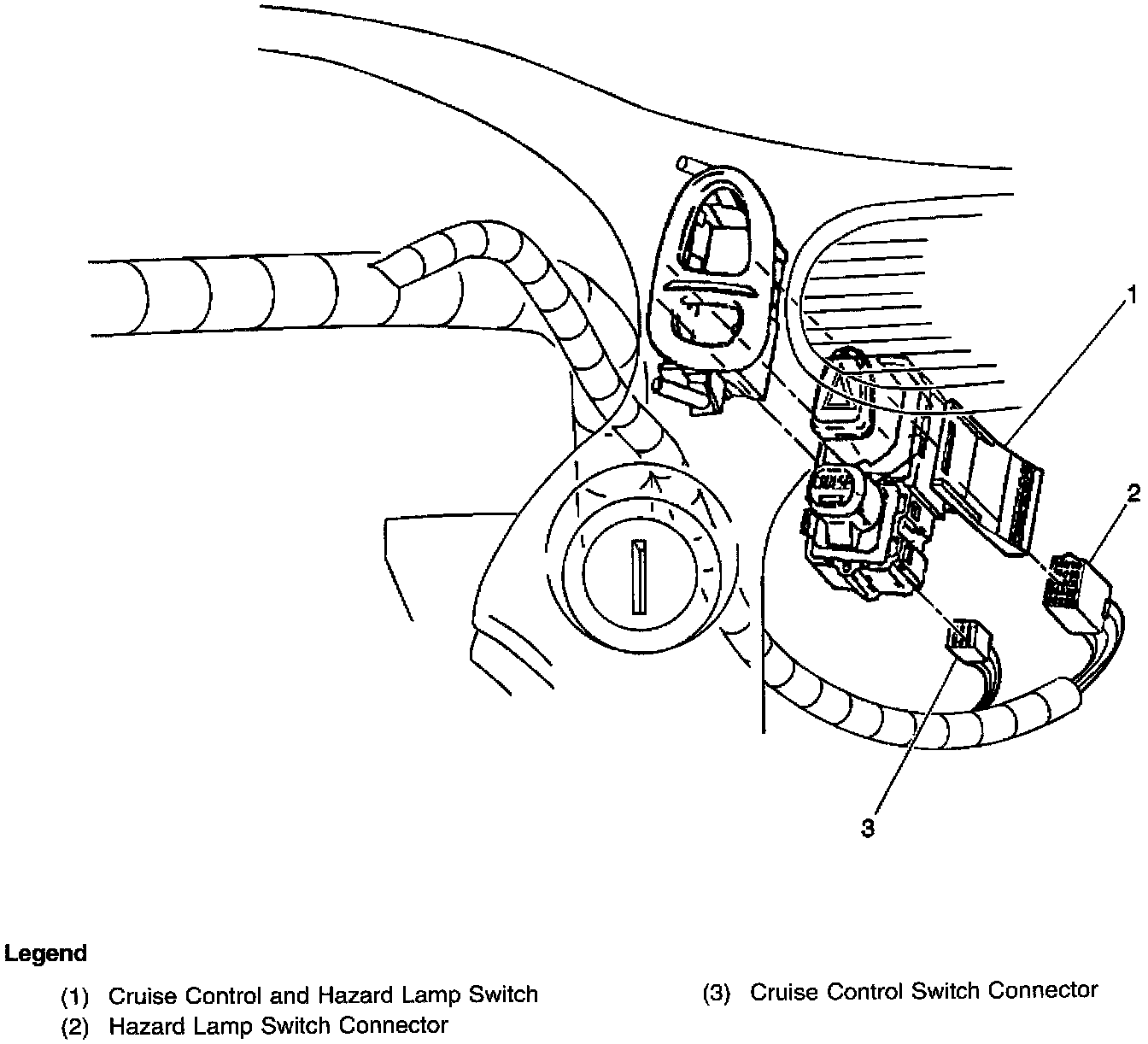

Cruise Control And Hazard Lamp Switch - LH Side Of Instrument Panel:

RCDLR, Cruise Control & Hazard Lamp SW, Ignition SW Instrument Cluster - LH Side Of I/P:

Center Of Instrument Panel:
