Electronic Brake Control Relay
Electronic Brake Control Relay

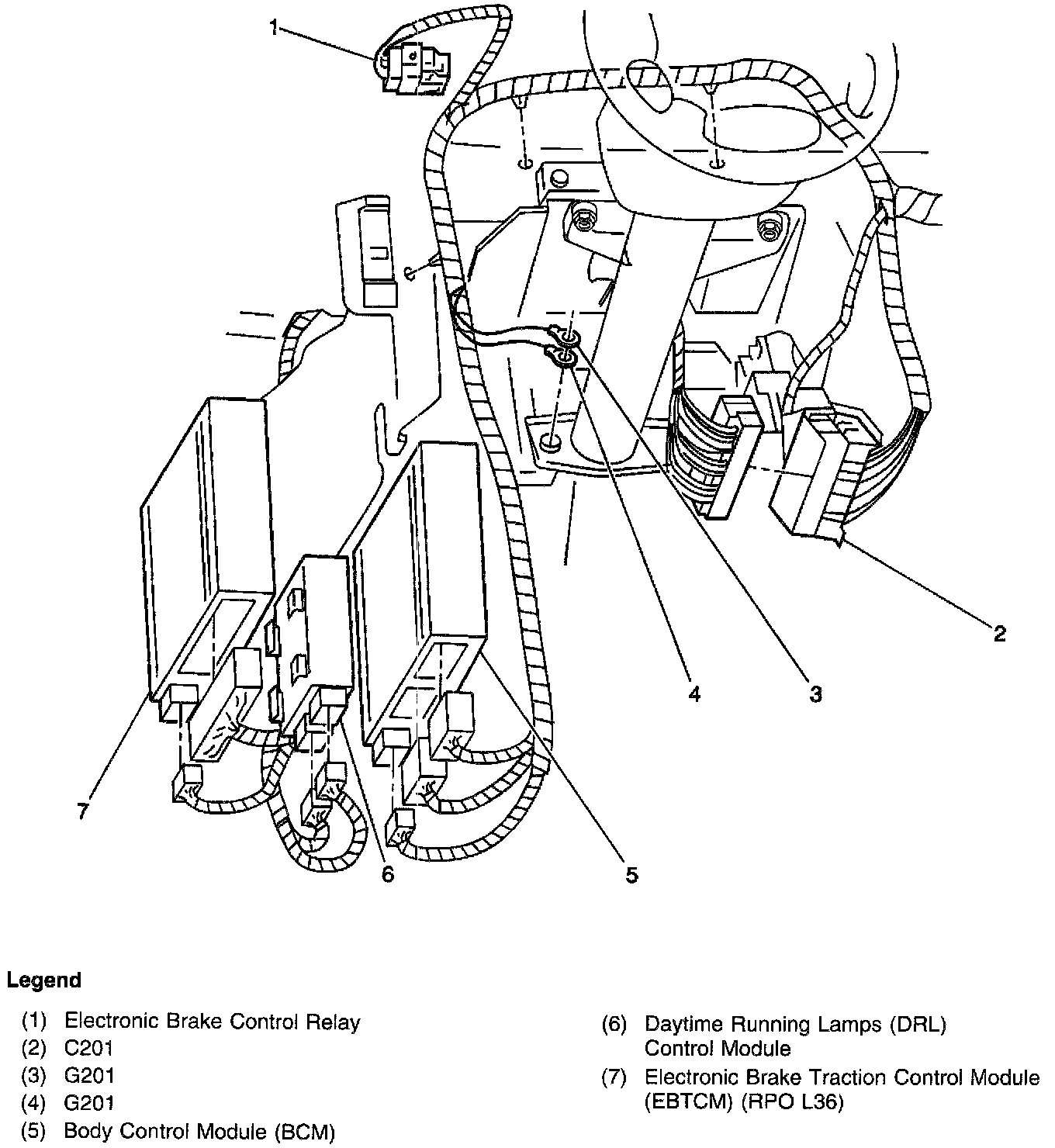

Electronic Brake Control Relay, C201, G201, BCM, DRL Module & EBTCM:
Below LH side of I/P, mounted to multipurpose bracket
