Rear Window Defogger Relay
Rear Window Defogger Relay

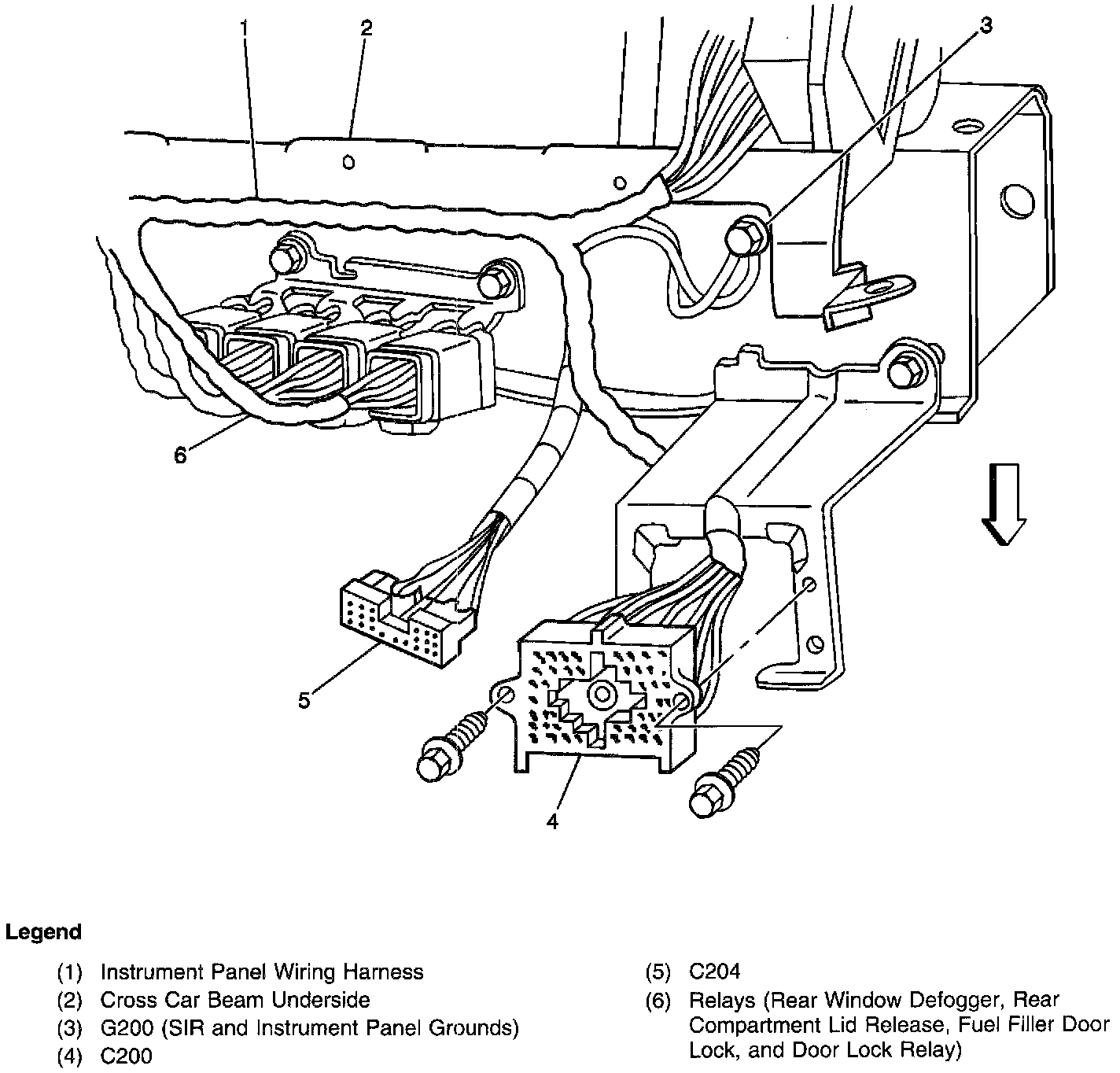

C200, C204 & Relays - Behind RH Side Of I/P:
Behind I/P compartment, attached to underside of cross-car beam
