Home >> Oldsmobile >> 1998 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Components >> Sensors >> Sun Load Sensor

Sun Load Sensor

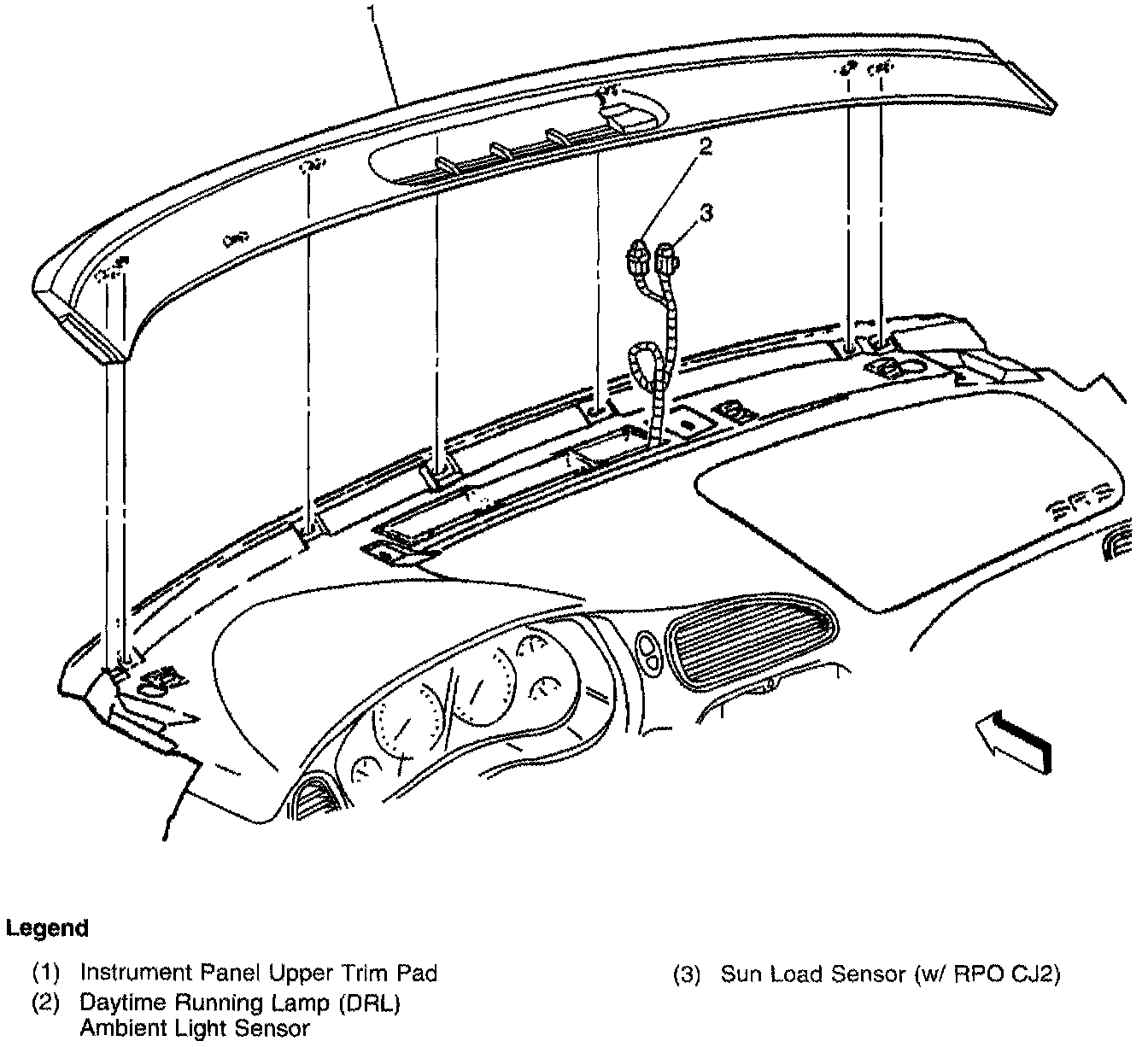

Sun Load Sensor And DRL Ambient Light Sensor: Top Of Instrument Panel:
