Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>
C2 Connector
C2 Connector

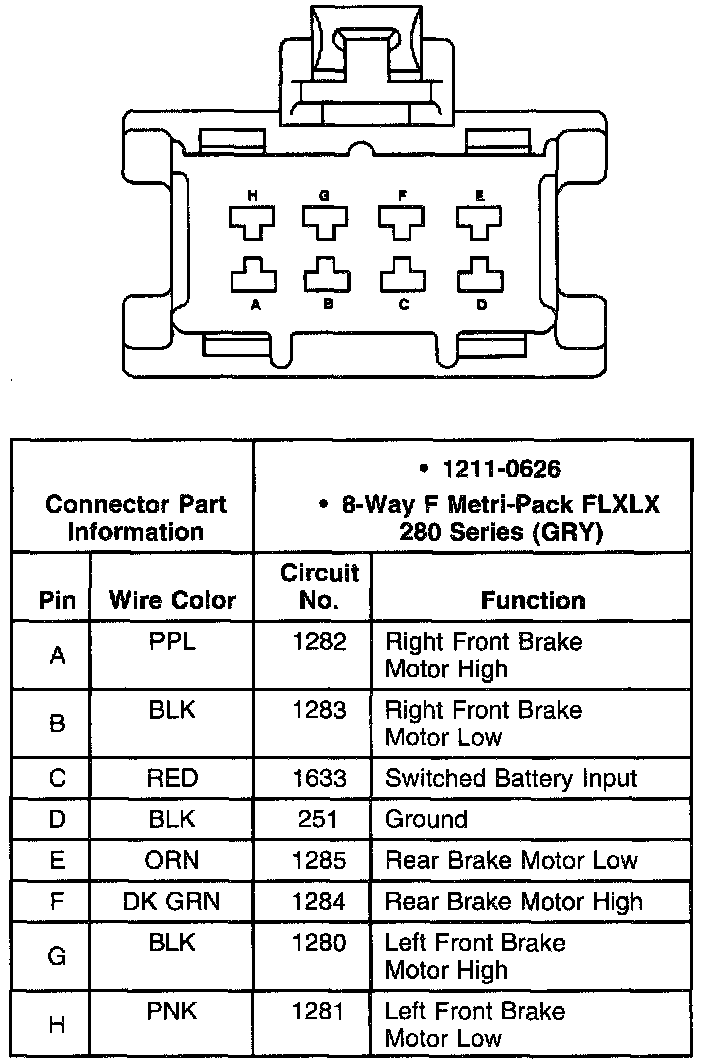

EBTCM Connector C2:
