Home >> Oldsmobile >> 1998 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C1 >> Pins 1 - 45

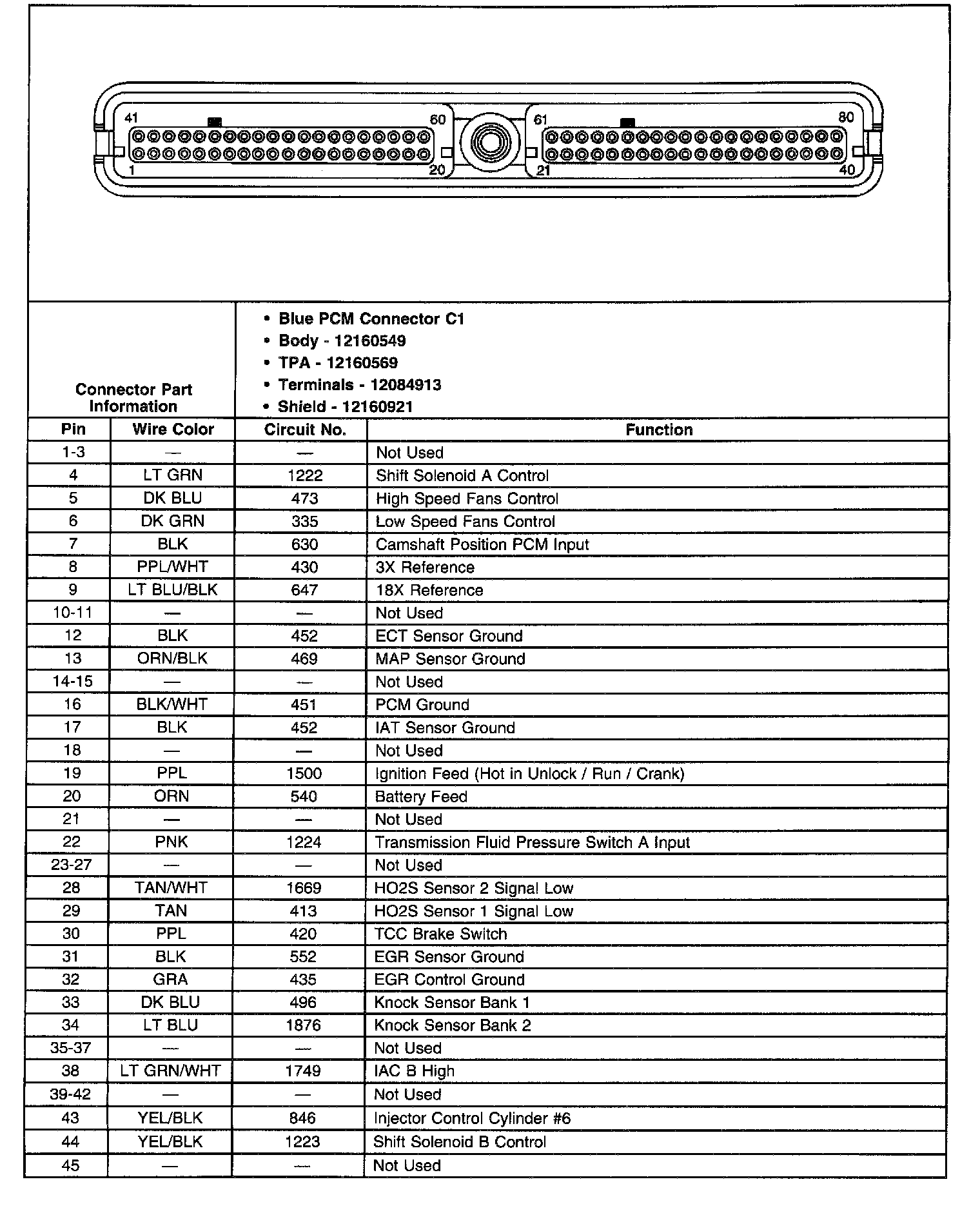

Pins 1 - 45
