Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Fuse Block
>>
C3
C3

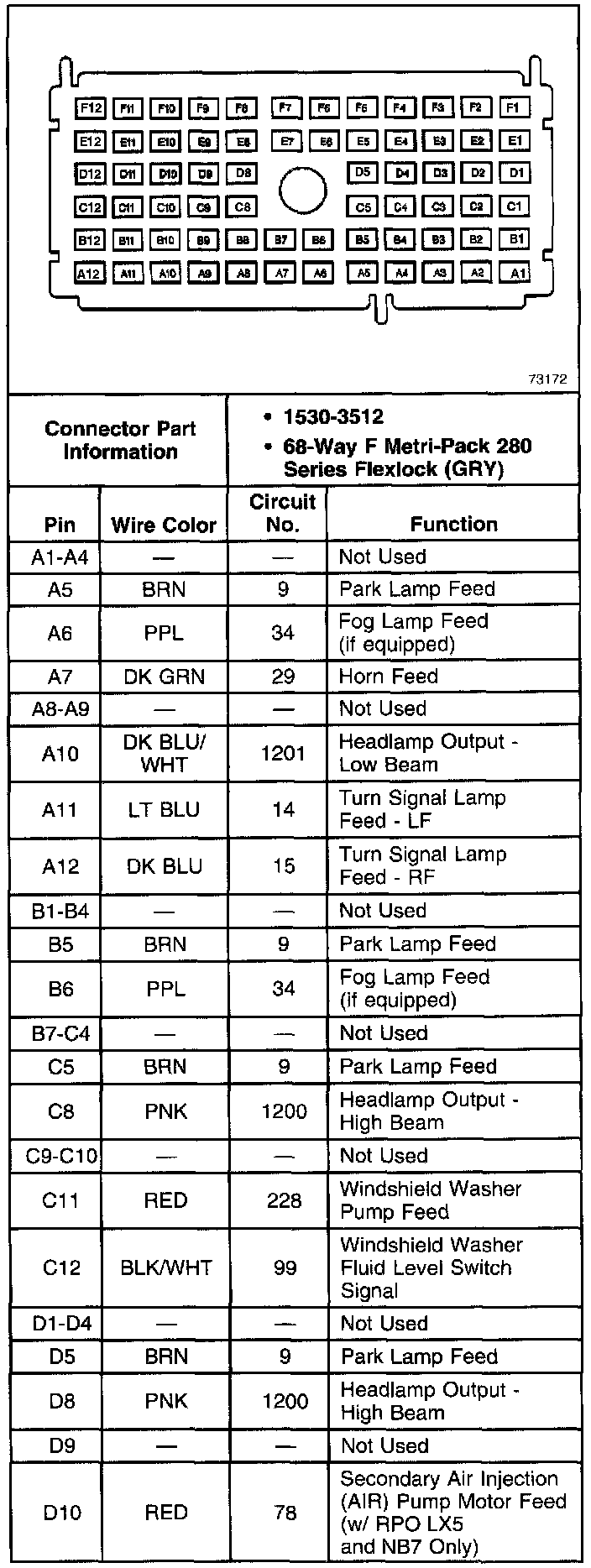

Undergood Accessory Wiring Junction Block: C3 (Part 1 Of 2):
Undergood Accessory Wiring Junction Block: C3 (Part 2 Of 2):
