Radio/Stereo
Radio/Stereo

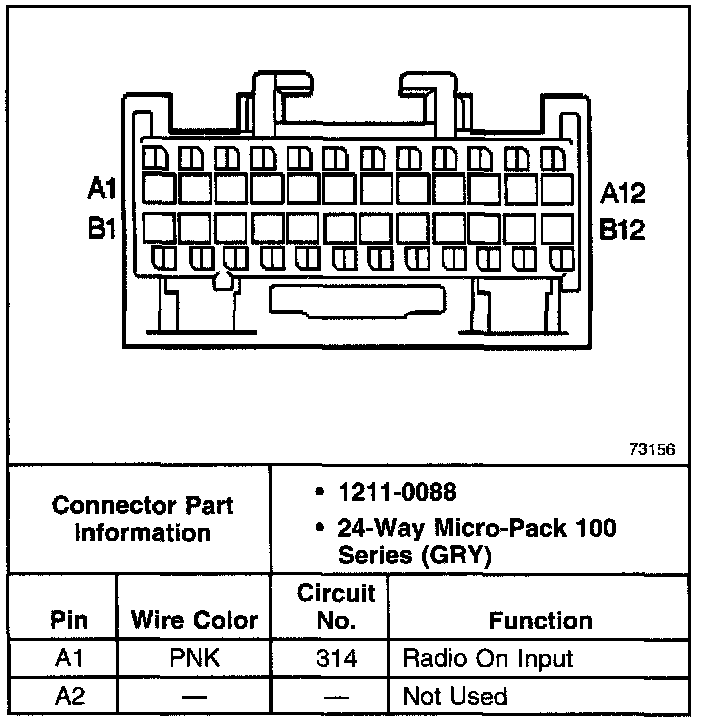

Radio:

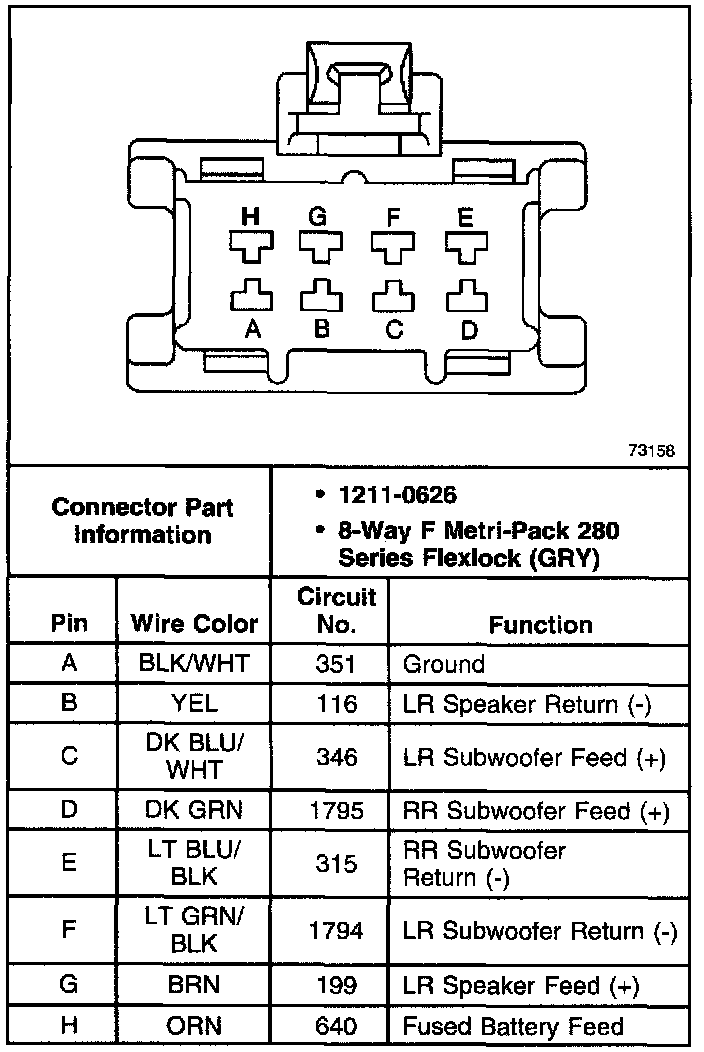

Bose(R) Low Frequency Audio Amplifier: C1:

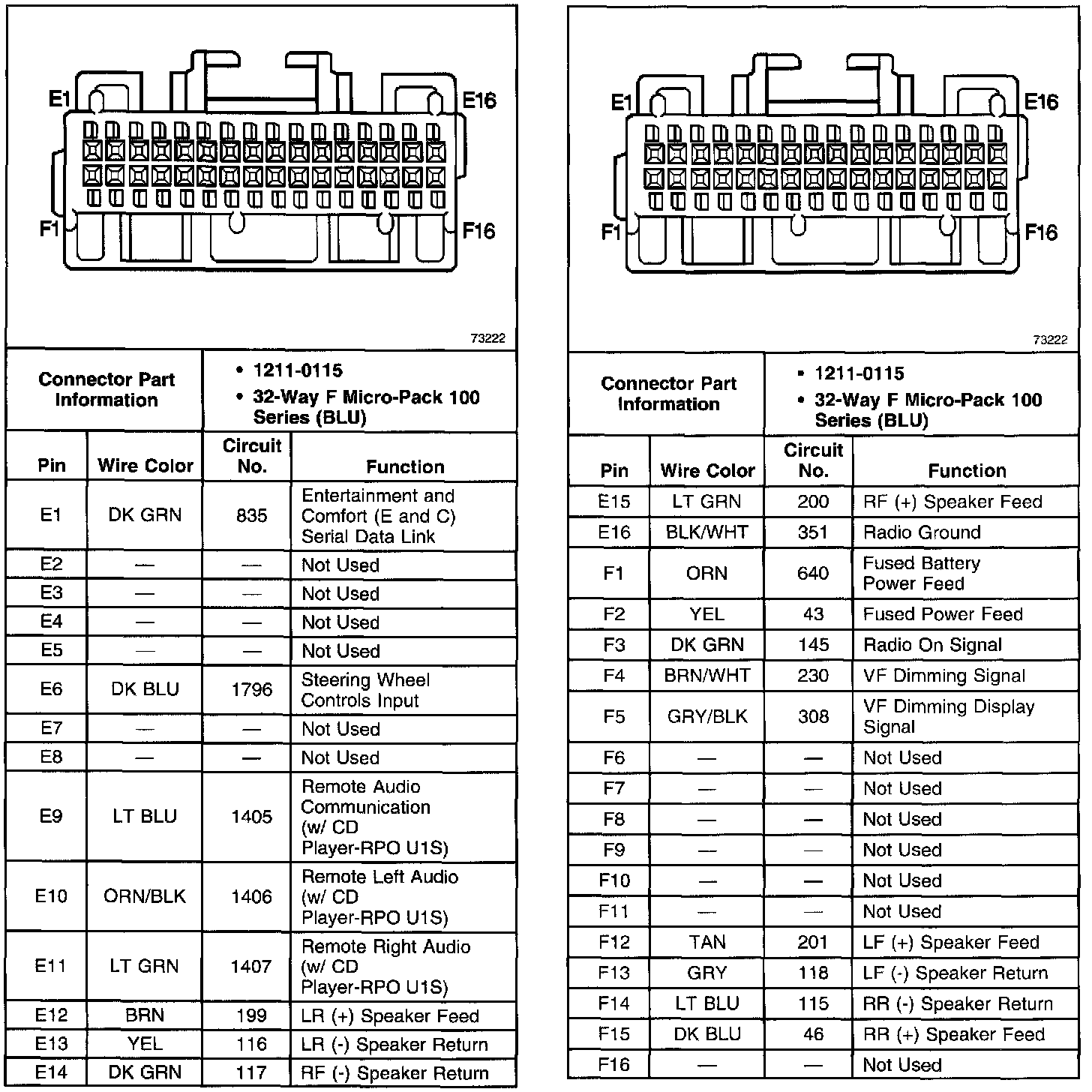

Bose(R) Low Frequency Audio Amplifier: C2 (Part 2 Of 2):

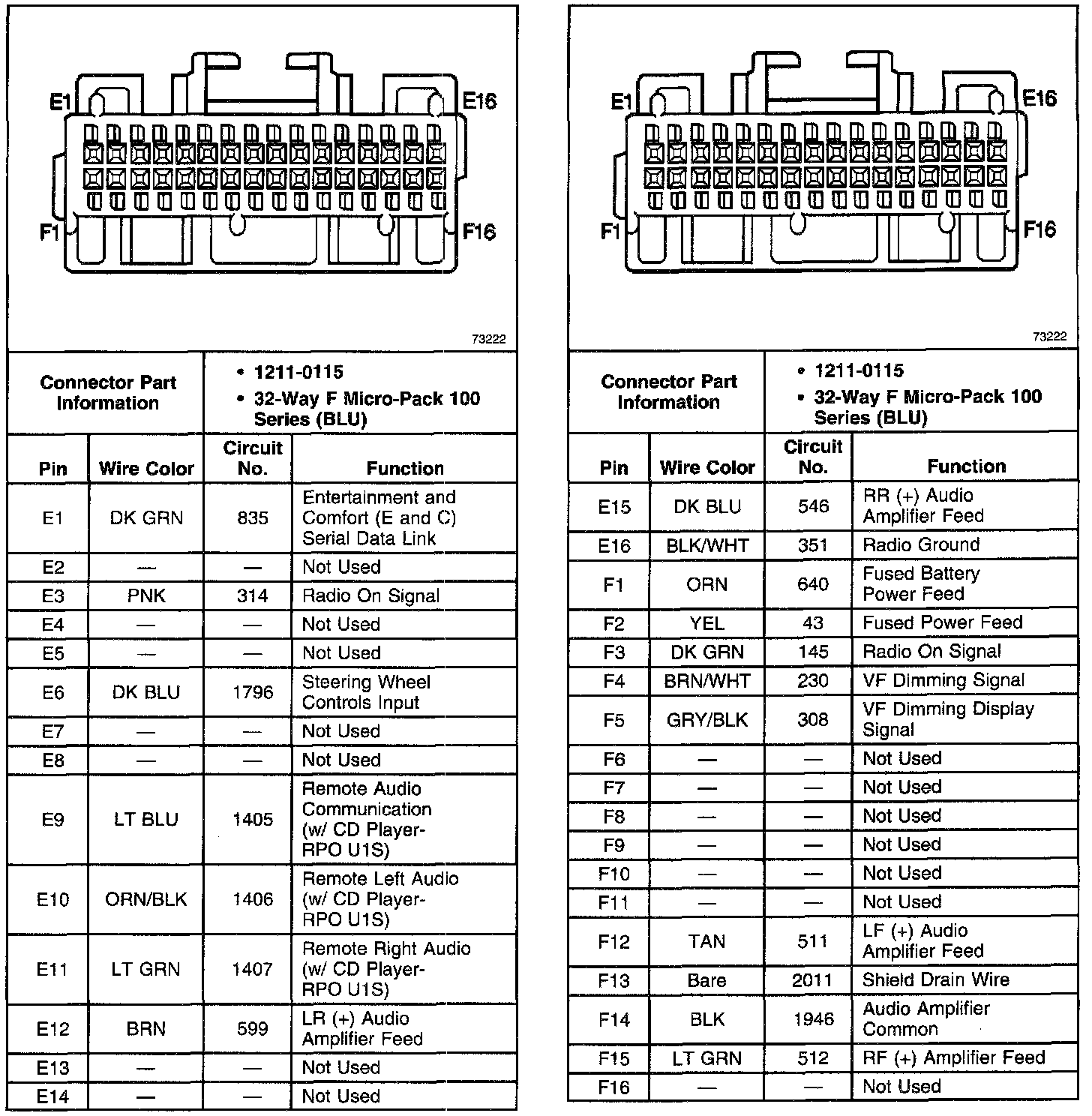

Bose(R) Low Frequency Audio Amplifier: C2 (Part 1 Of 2):

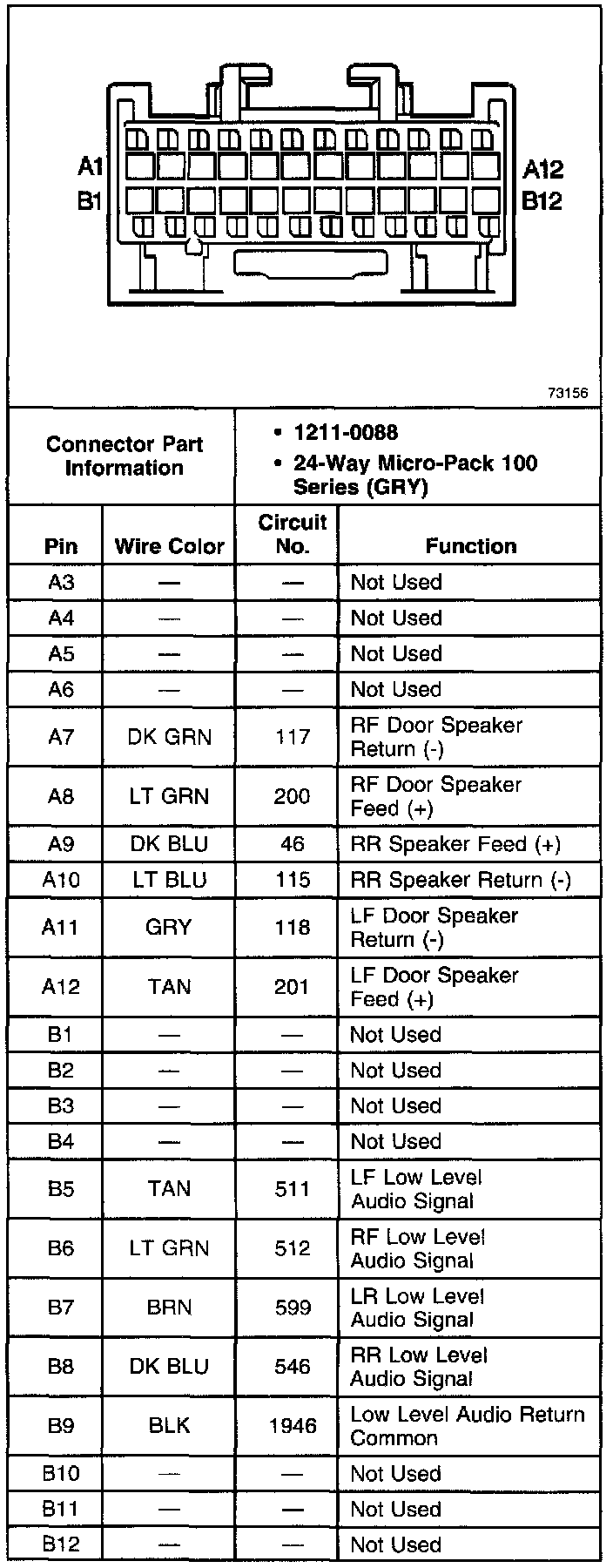

Radio:
