Operation CHARM: Car repair manuals for everyone.
Home >> Oldsmobile >> 1998 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Auto Door Lock Inputs, RFA Link

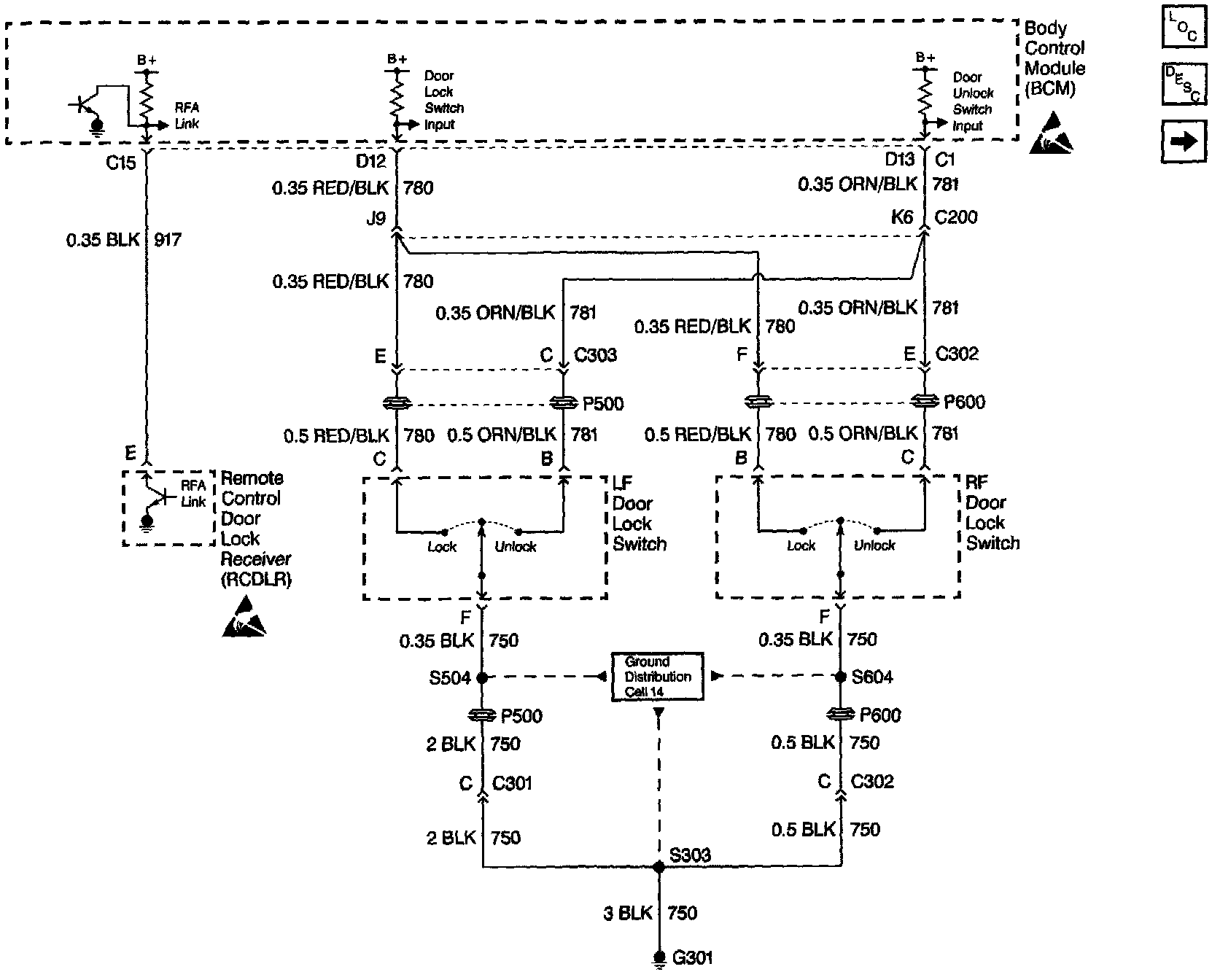

Auto Door Lock Inputs, RFA Link

Auto Door Lock Inputs, RFA Link:
