Ground Distribution

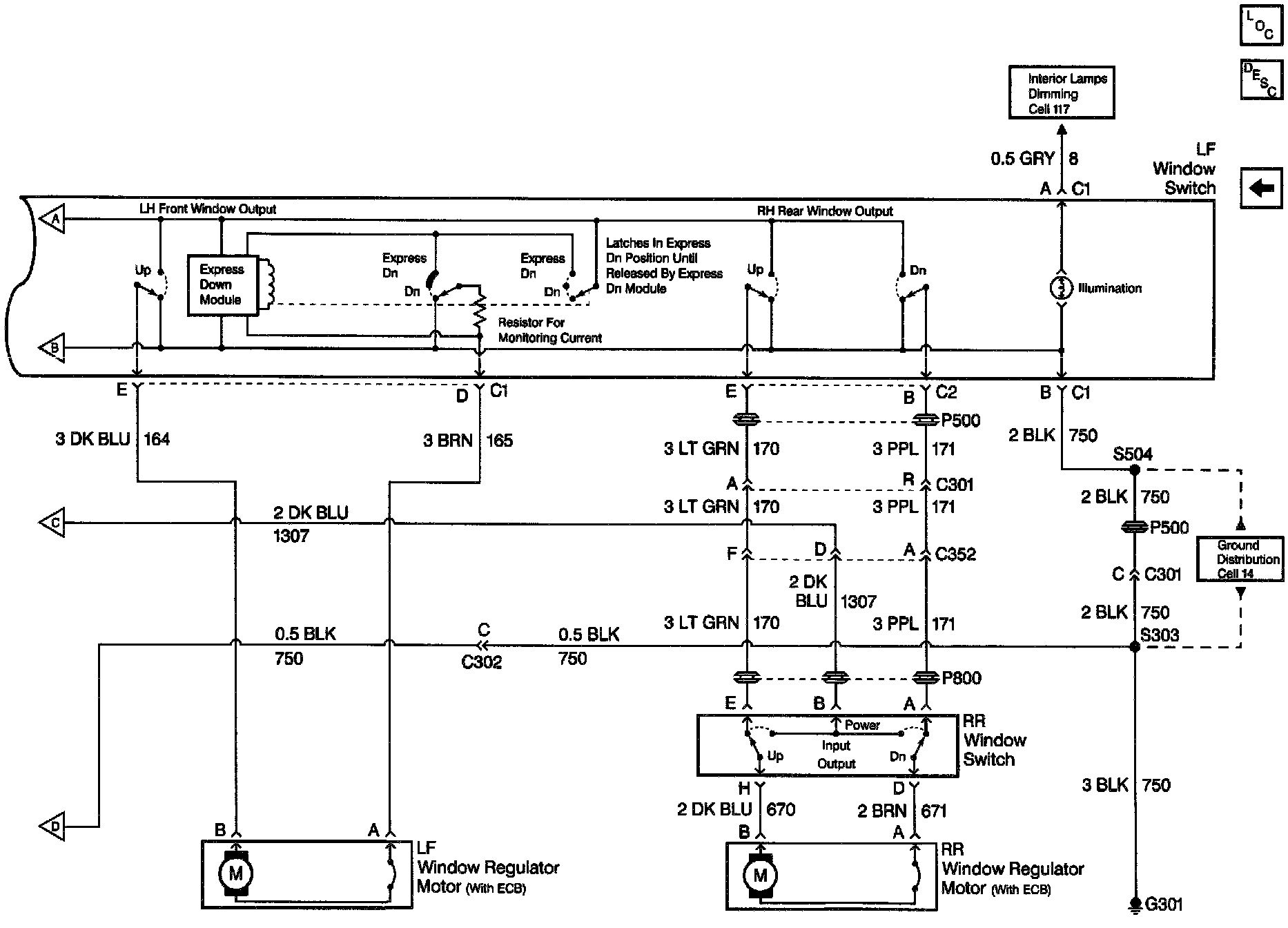

Power Windows Schematics: Ground Distribution, Window SW & Window Regulator Motors:
