Home >> Oldsmobile >> 1998 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> Power Windows >> Power Distribution

Power Distribution

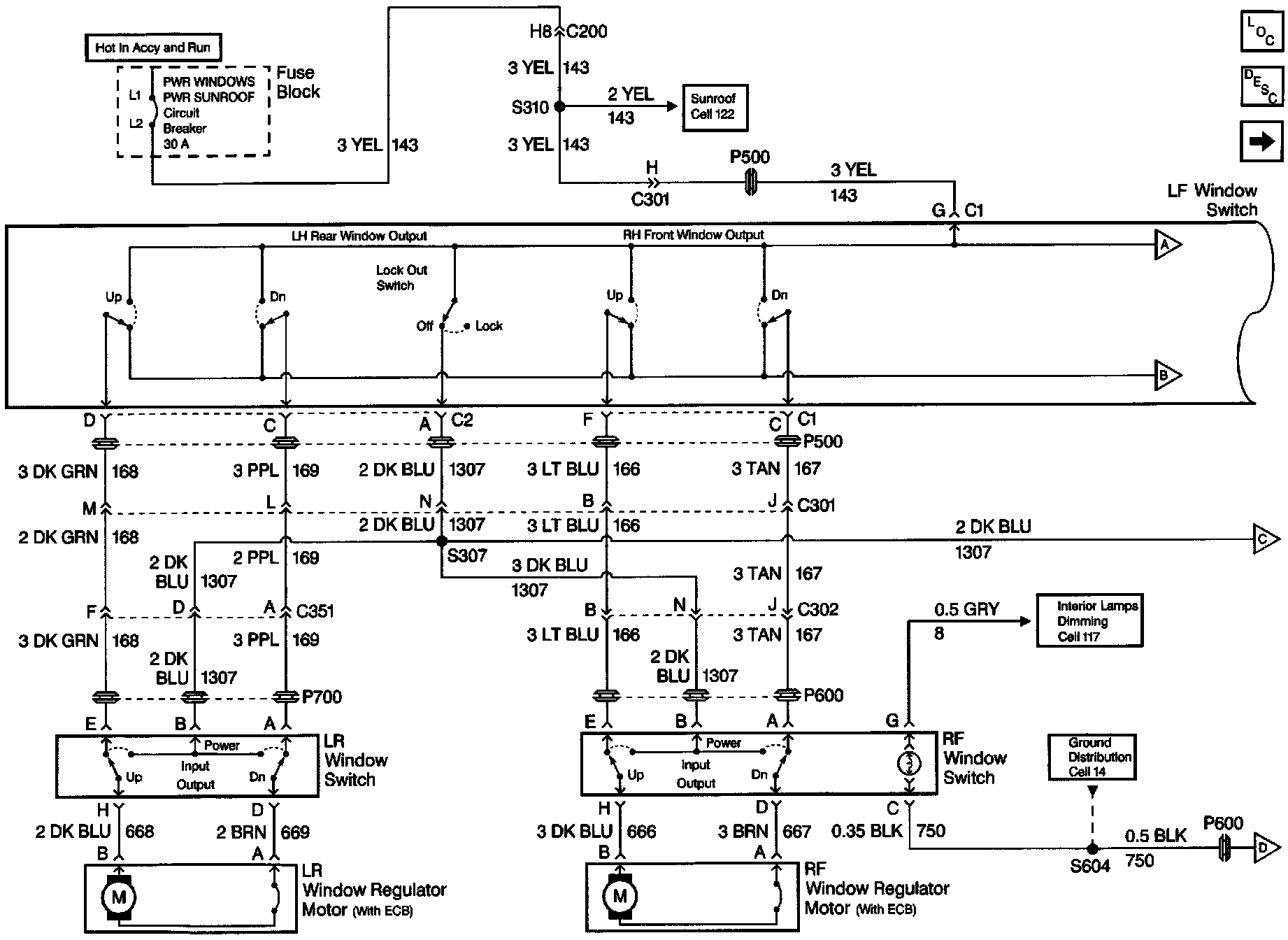

Power Window Schematics: Power Distribution, Window SW & Window Regulator Motors:
