Replace
1.
Clean the valve seat area on the rear head.
2.
Lubricate the O-ring of the new pressure relief valve and the O-ring assembly using new 525 viscosity refrigerant oil.
3.

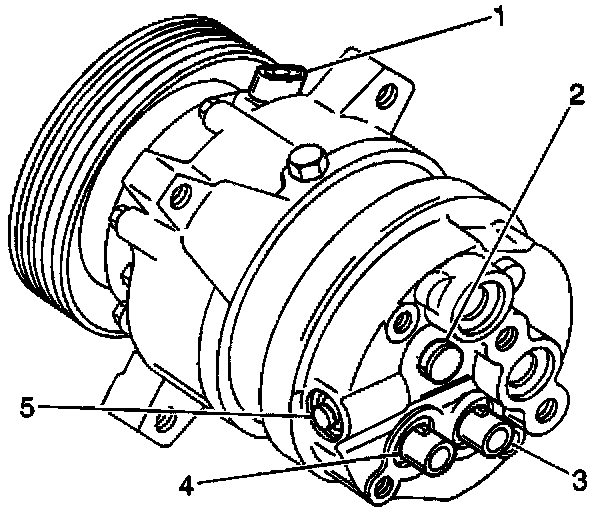

Install the new pressure relief valve (2).
Tighten Tighten the valve to
9 N.m (80 lb in).
4.
Evacuate and recharge the system.
5.
Perform a leak test.
