Oldsmobile
>>
1998
>>
Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Instrument Panel Fuse Block
Instrument Panel Fuse Block

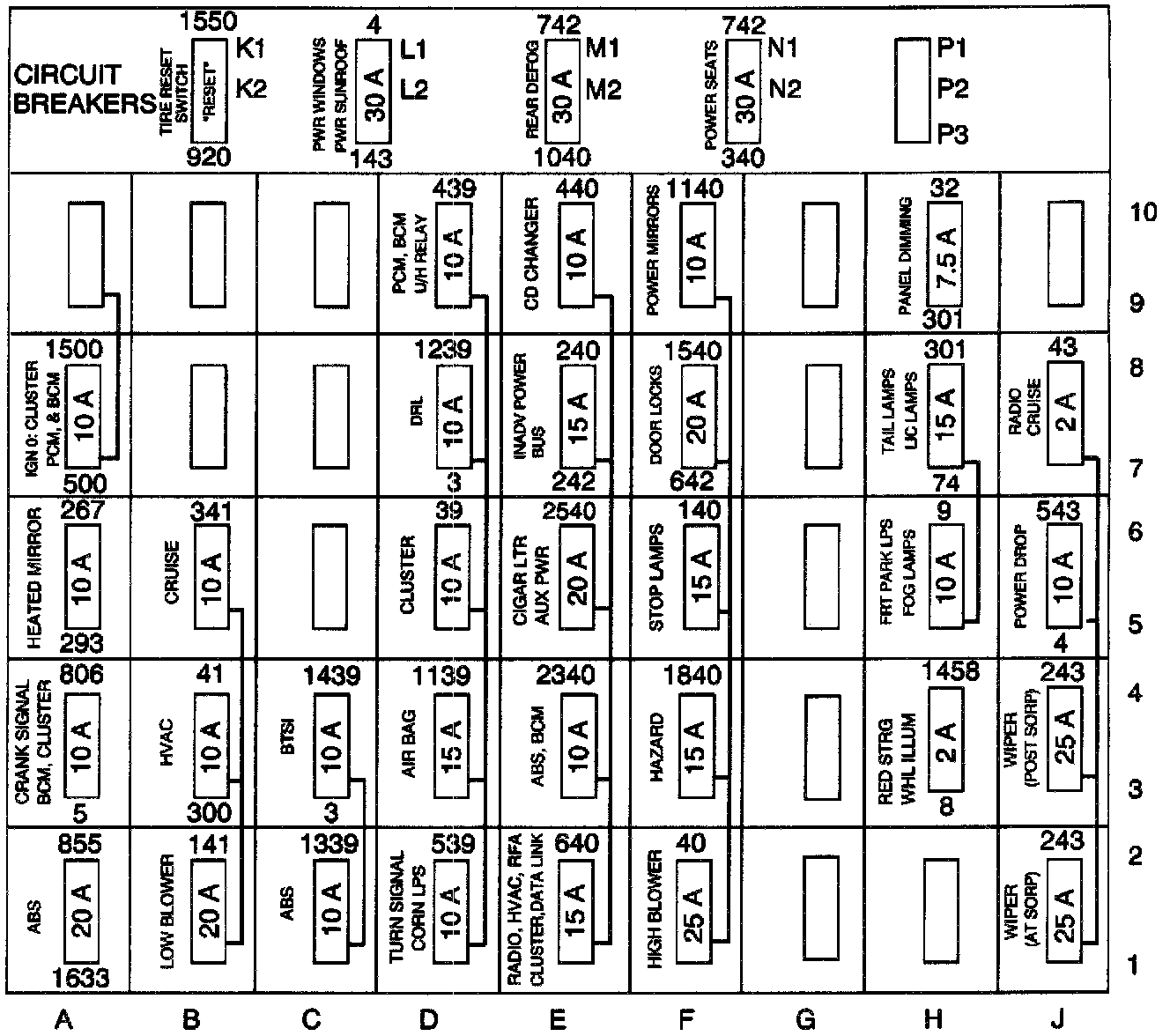

Fuse Block Details Schematics: Instrument Panel Fuse Block:
RH Side Of Instrument Panel Compartment:
