Air Flow Meter/Sensor: Locations
Locations View:
Locations View:

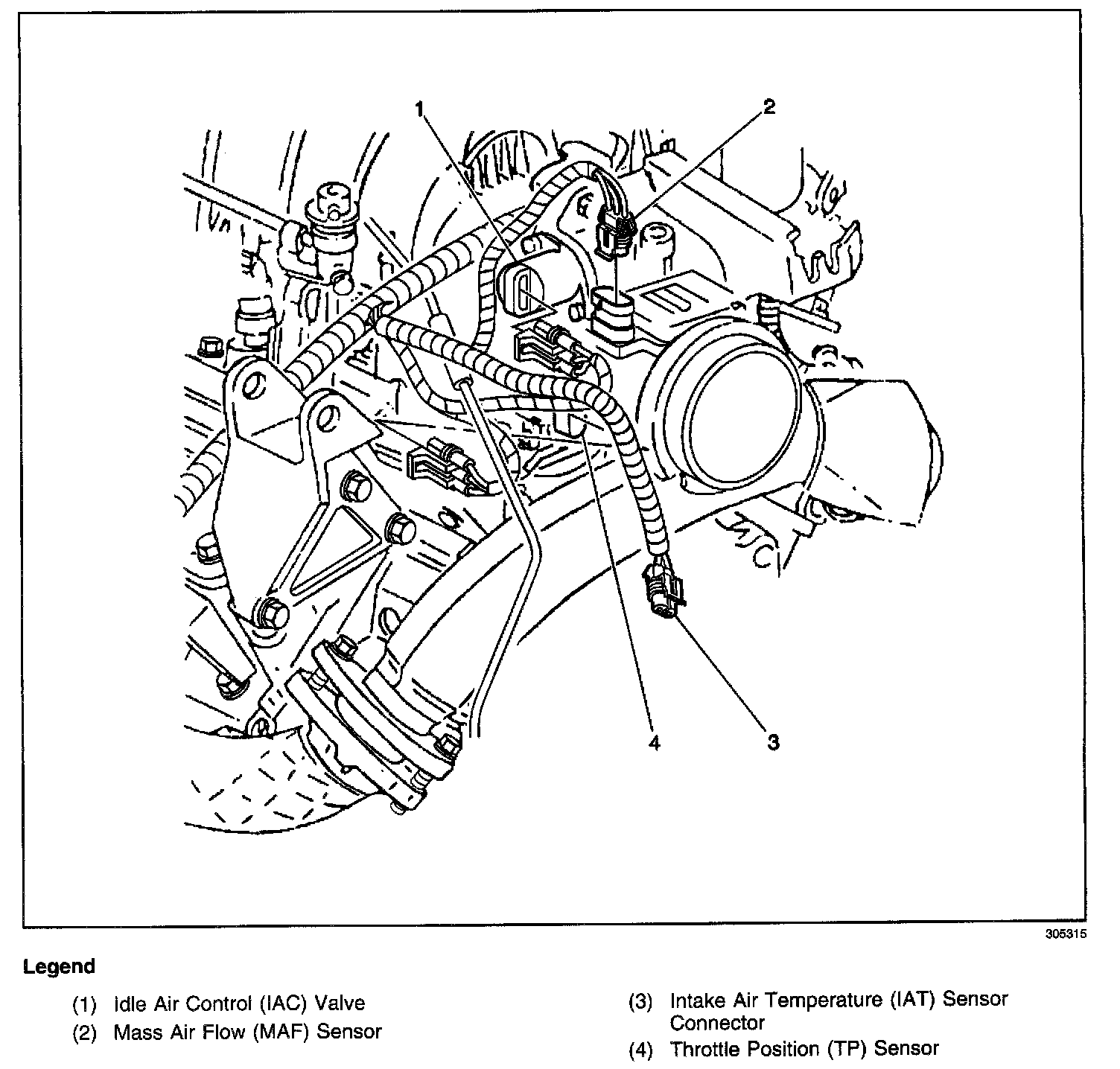

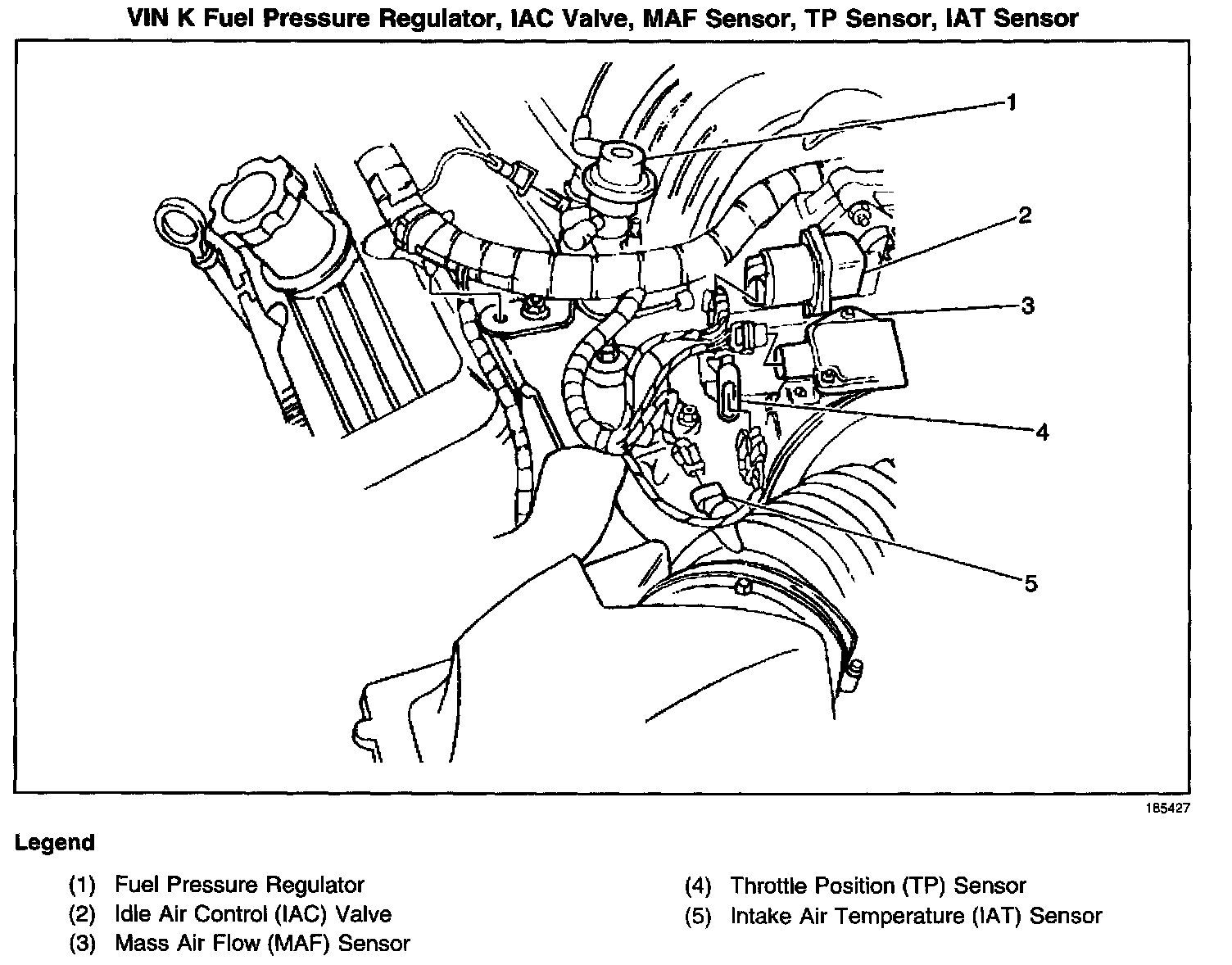

MAF, IAT, TP Sensors, And IAC - LH Top Of Engine:
