Diagnostic System Checks

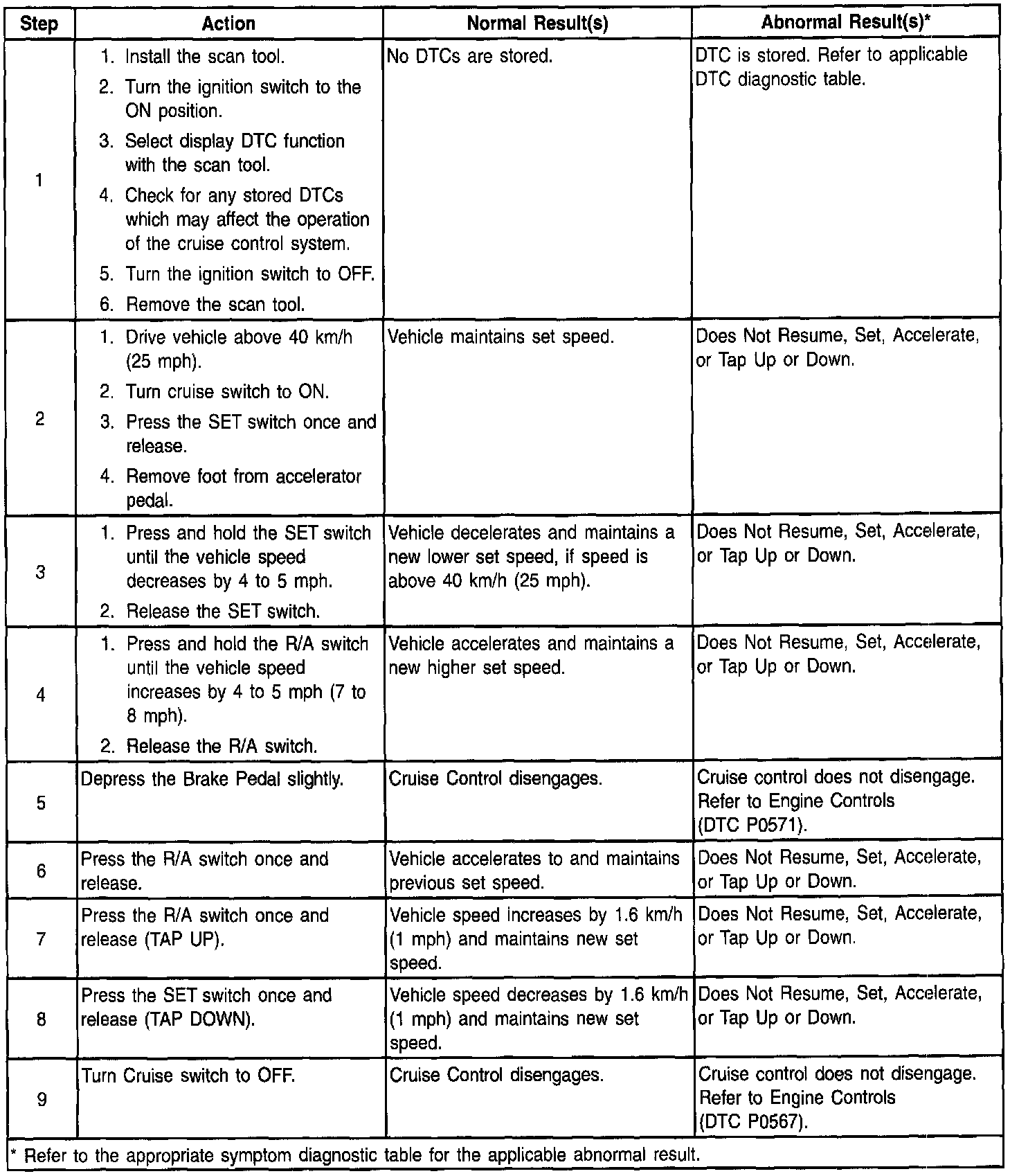

Cruise Control System Check:




The system check gives a summary of how the system operates and what actions occur. This is especially important when working on a new system. The system check will help identify symptoms, lead to diagnosis and confirm normal operation of the system after repair.
