Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1998
>>
Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Knock Sensor
>>
Diagrams
>>
Connector Views
Connector Views

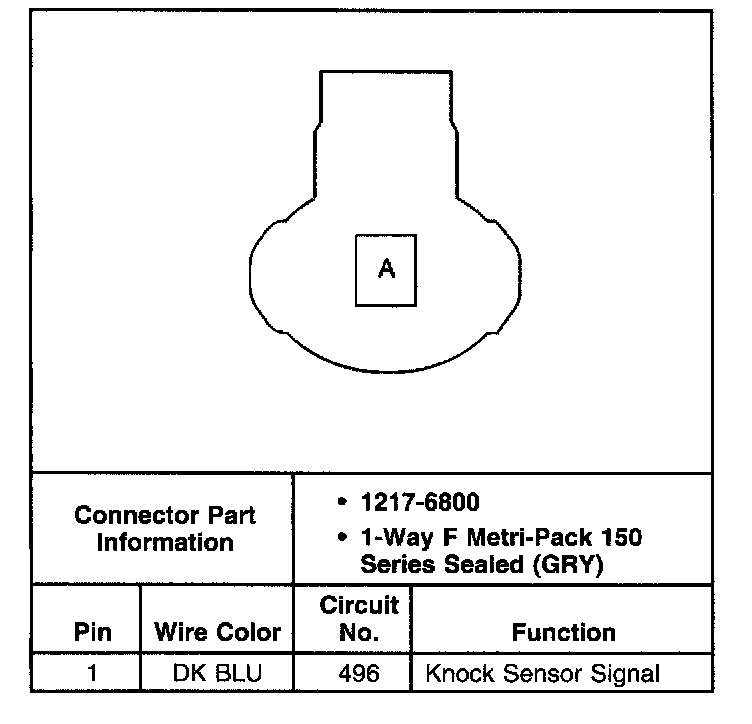

Knock Sensor #2:

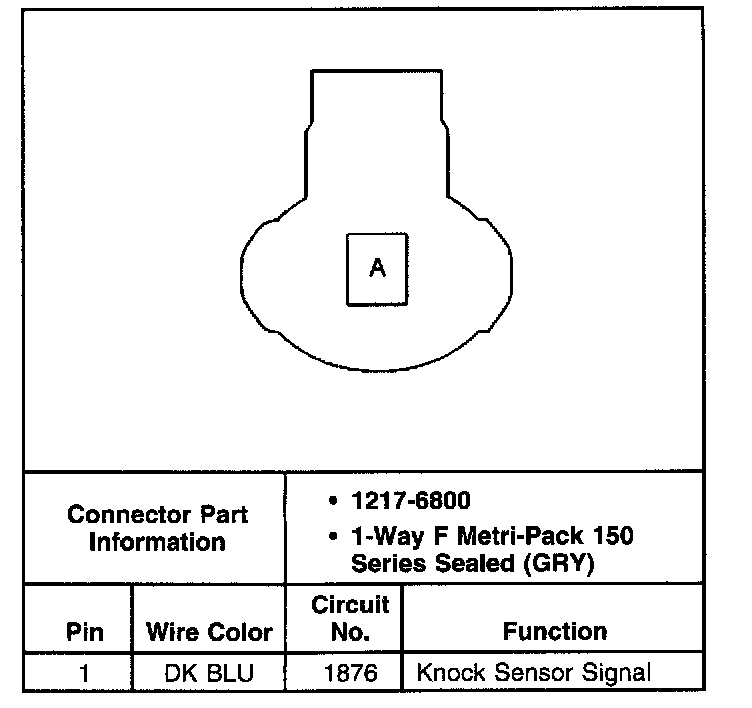

Knock Sensor #1:
