Home
>>
Oldsmobile
>>
1998
>>
Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Control Module
>>
Locations
>>
Harness Locations
Harness Locations
Ignition Control:

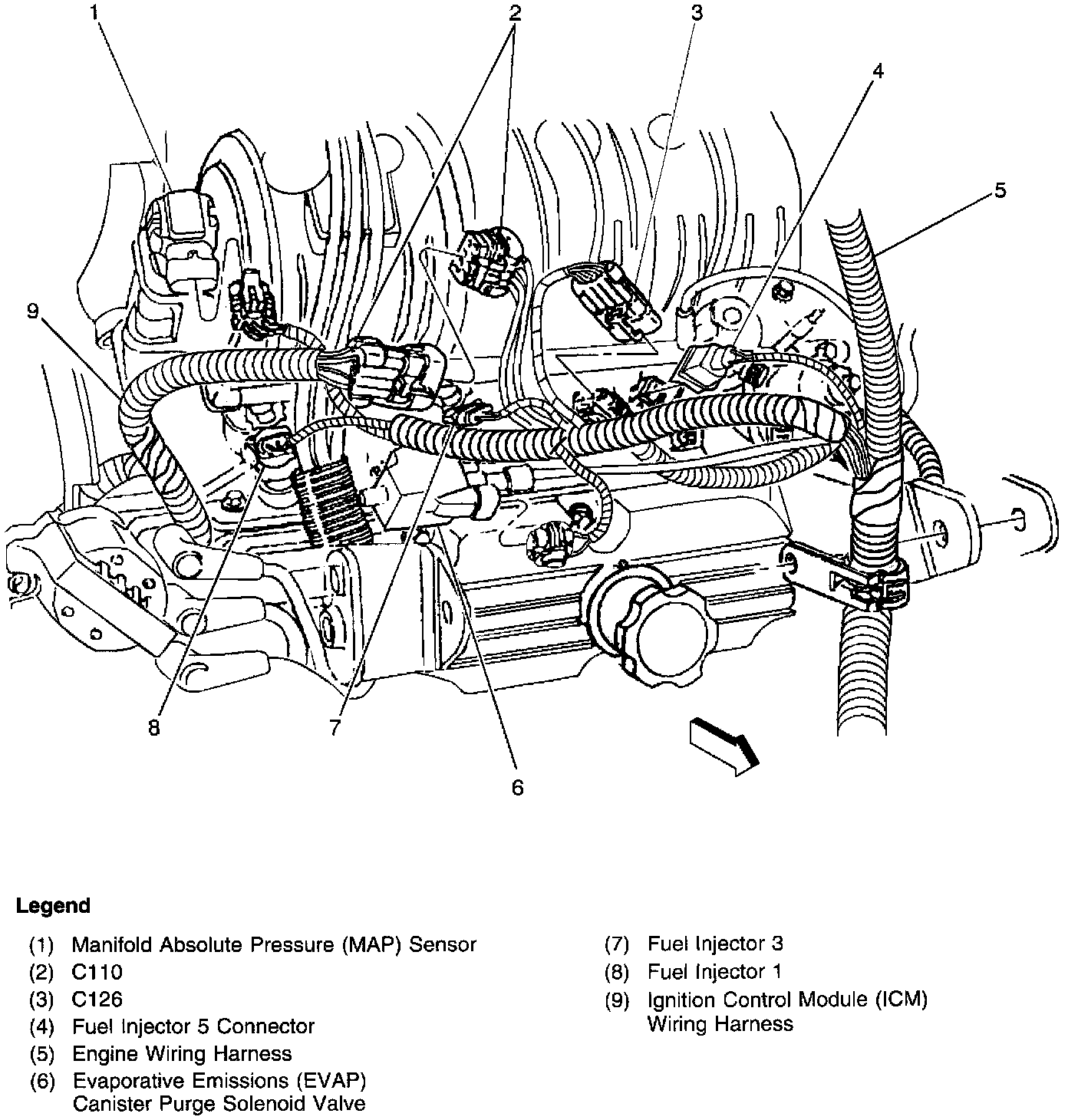

Top Front Of Engine:

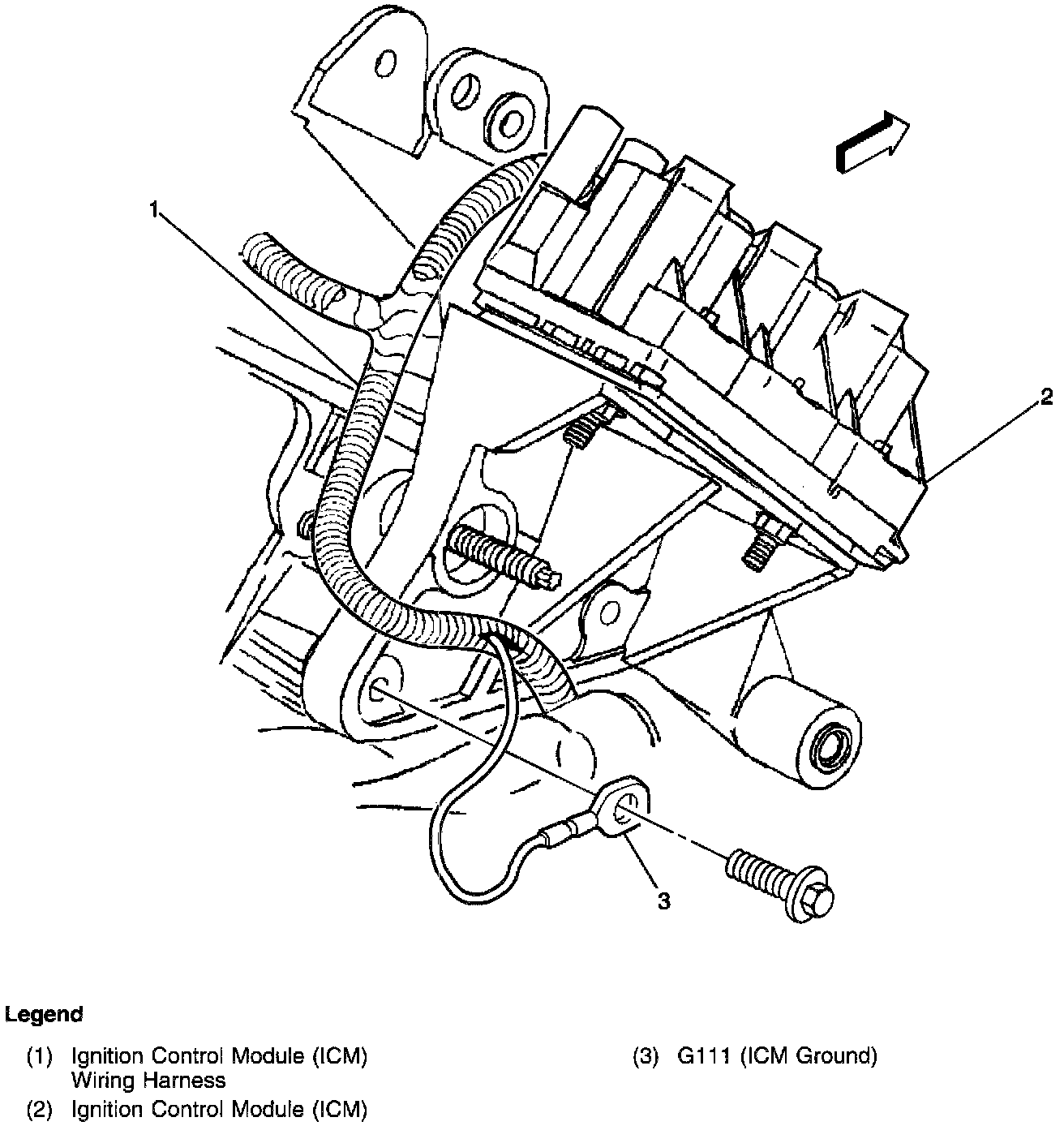

ICM, CKP Sensor And C110 - RH Side Of Engine:
