EBTCM Replacement

REMOVAL PROCEDURE
1. Remove the I/P sound insulator panel. Refer to Insulator Replacement - IP in Instrument Panel, Gauges and Console.

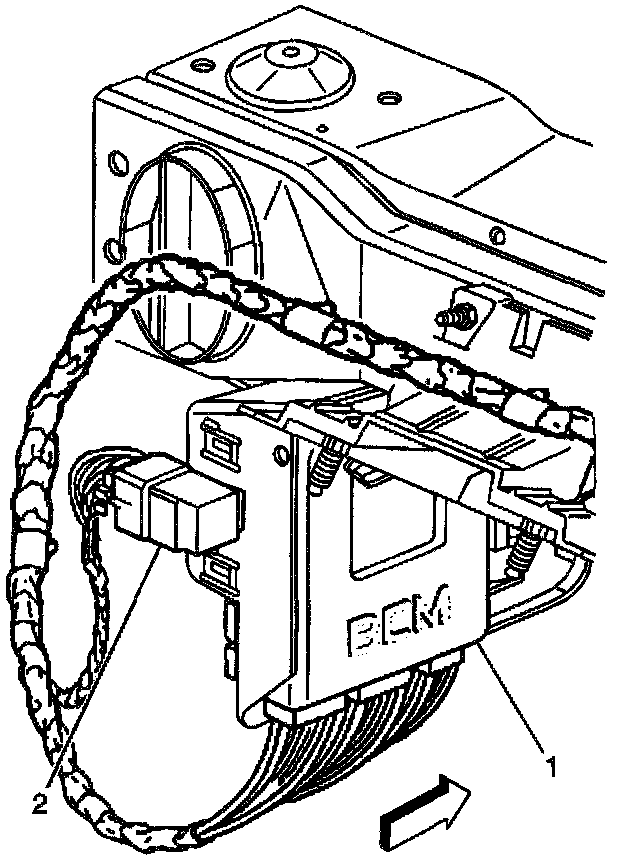

2. Use pressure tabs in order to release the EBTCM (1) from the Electronic Brake Traction Control Module (EBTCM) bracket (2).
3. Remove the EBTCM electrical connectors.


INSTALLATION PROCEDURE
1. Install the EBTCM electrical connectors.

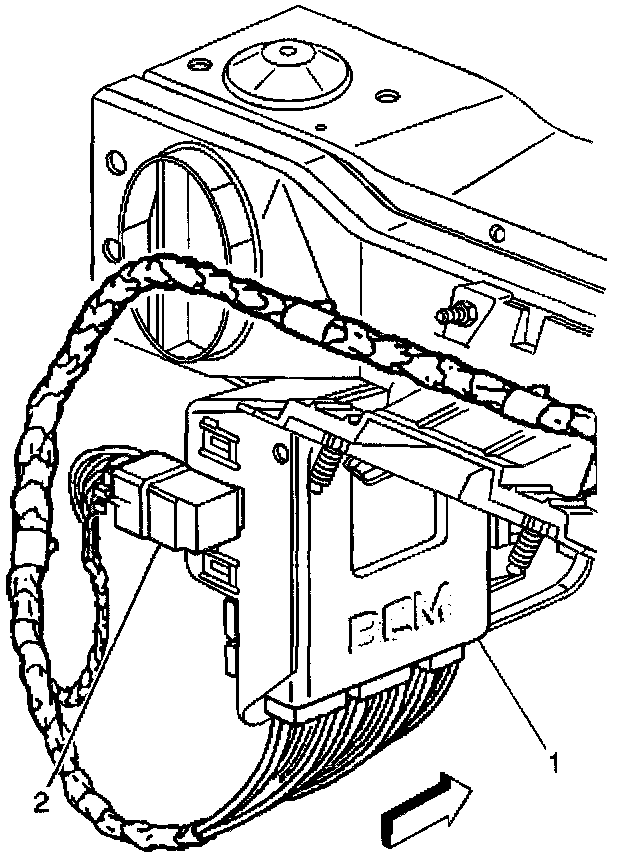

2. Slide the EBTCM (1) into the EBTCM bracket (2) until pressure tabs secure the EBTCM.
3. Install the I/P sound insulator panel. Refer to Insulator Replacement - IP in Instrument Panel, Gauges and Console.
