Control Assembly, HVAC
>>
HVAC System - Automatic
HVAC System - Automatic

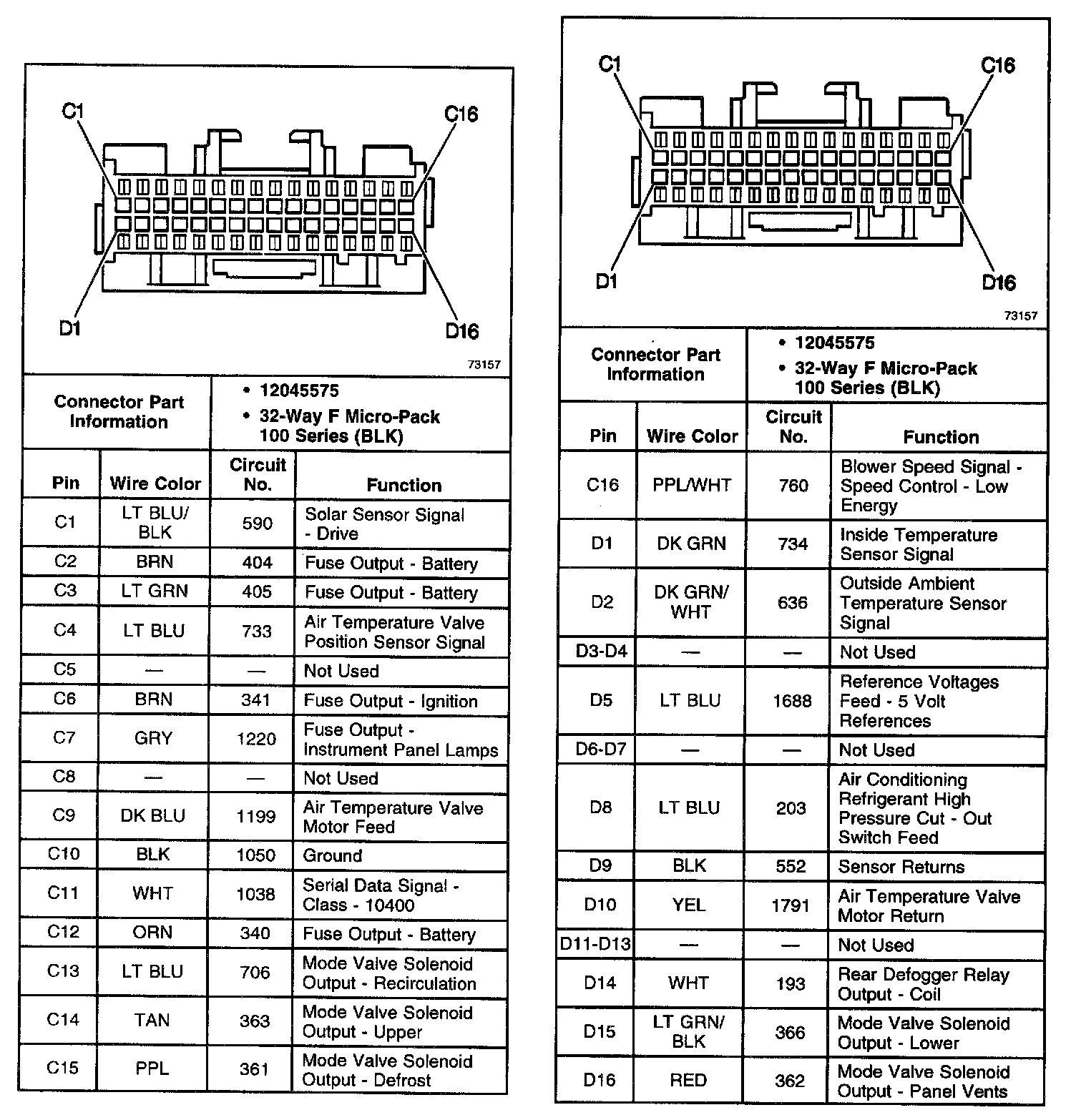

Electronic Climate Control Module (W/ Auto A/C):
