Home >> Oldsmobile >> 1999 >> Bravada V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Underhood Fuse Block Connector >> C3

C3

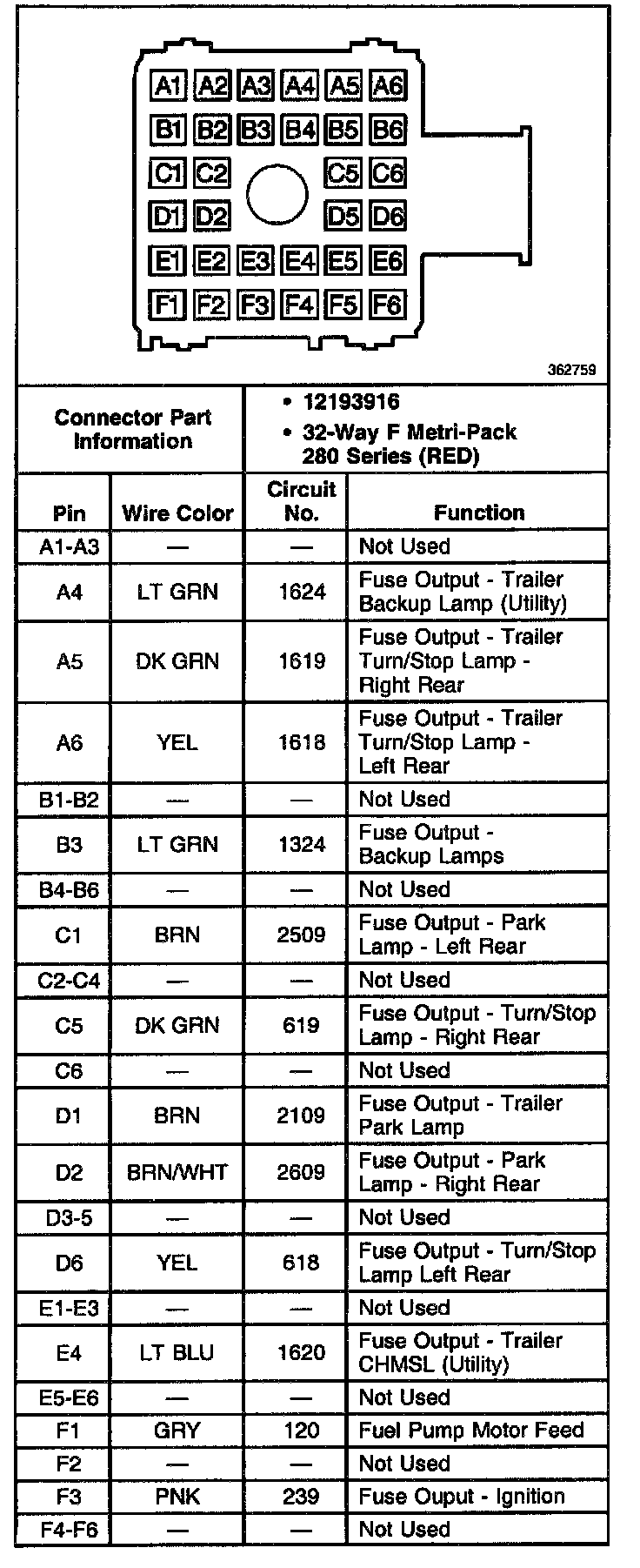

Underhood Fuse Block Connector C3:
