Home
>>
Oldsmobile
>>
1999
>>
Bravada V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
IP Fuse Block Details
IP Fuse Block Details

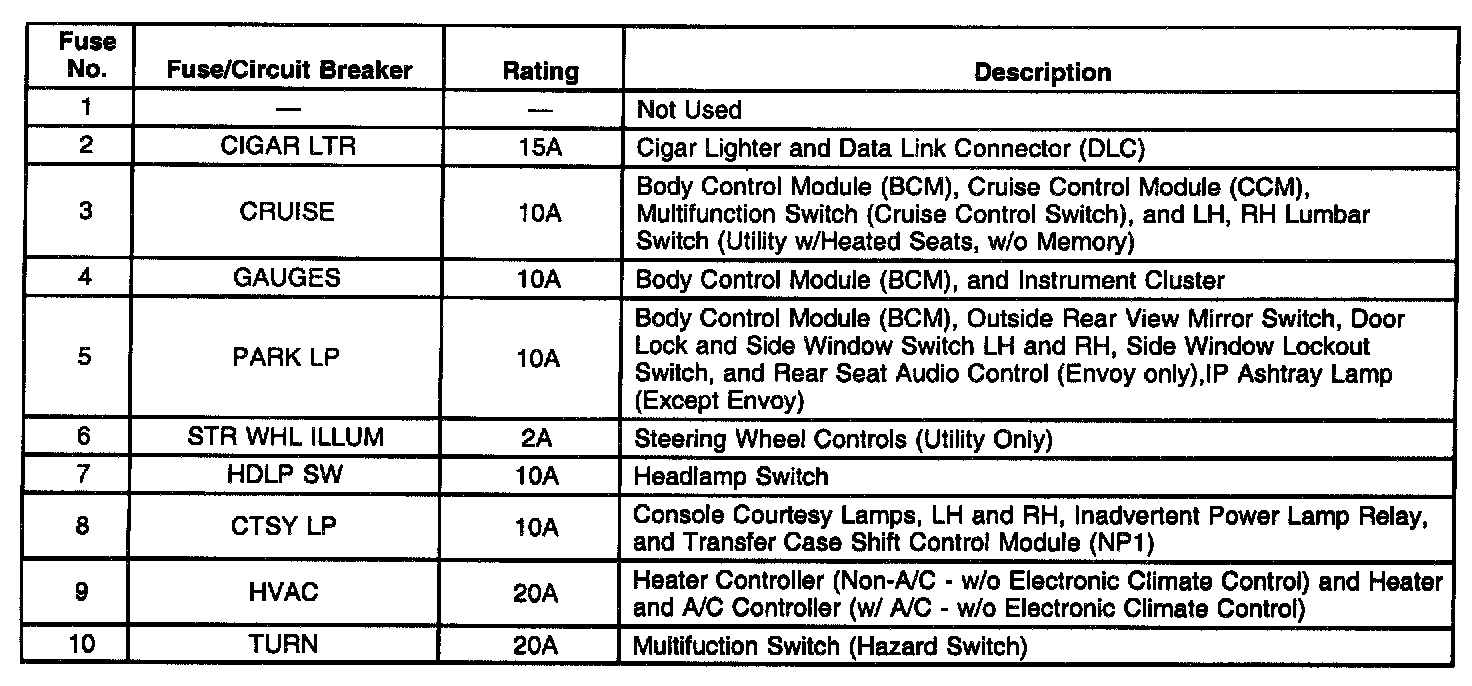

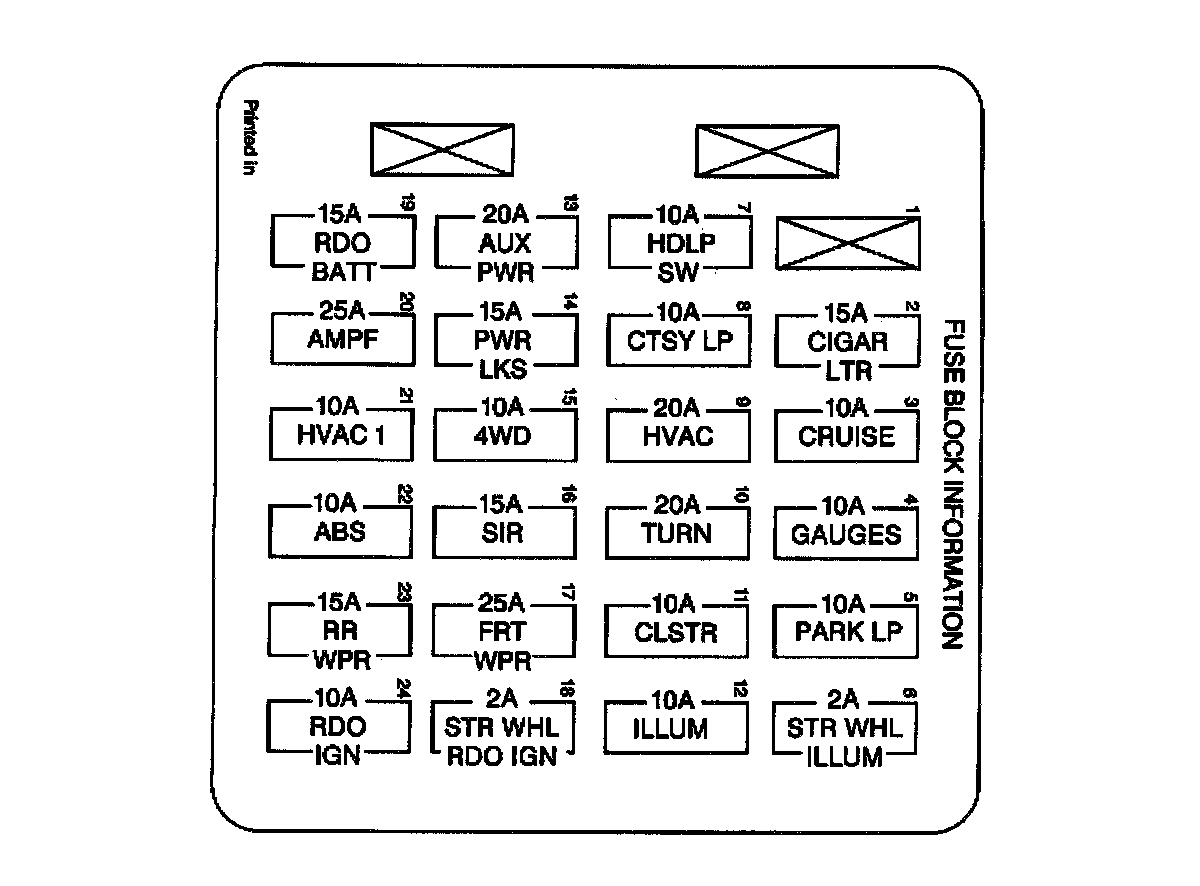

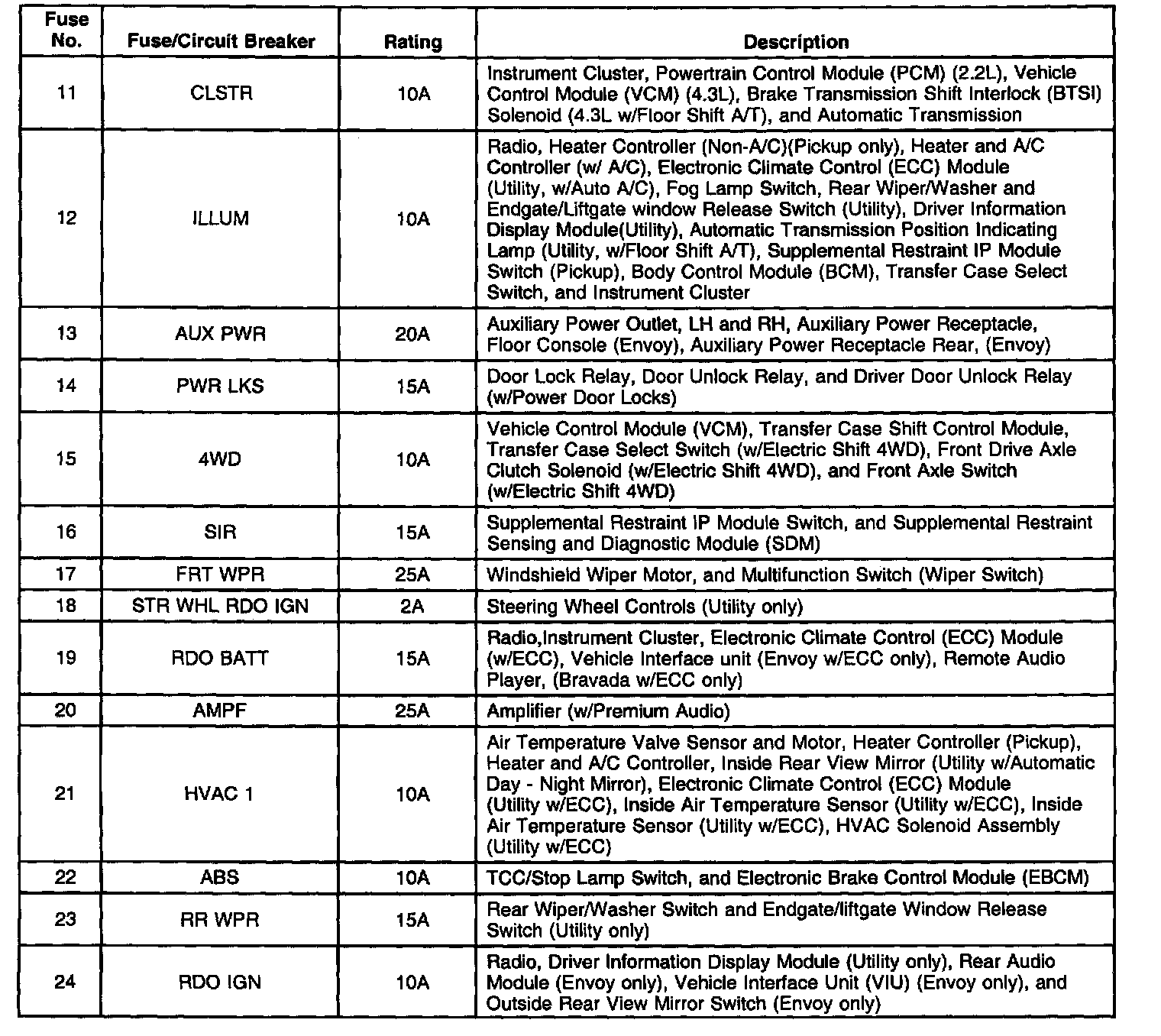

IP Fuse Block Details:
