Air Injection Control Valve: Locations

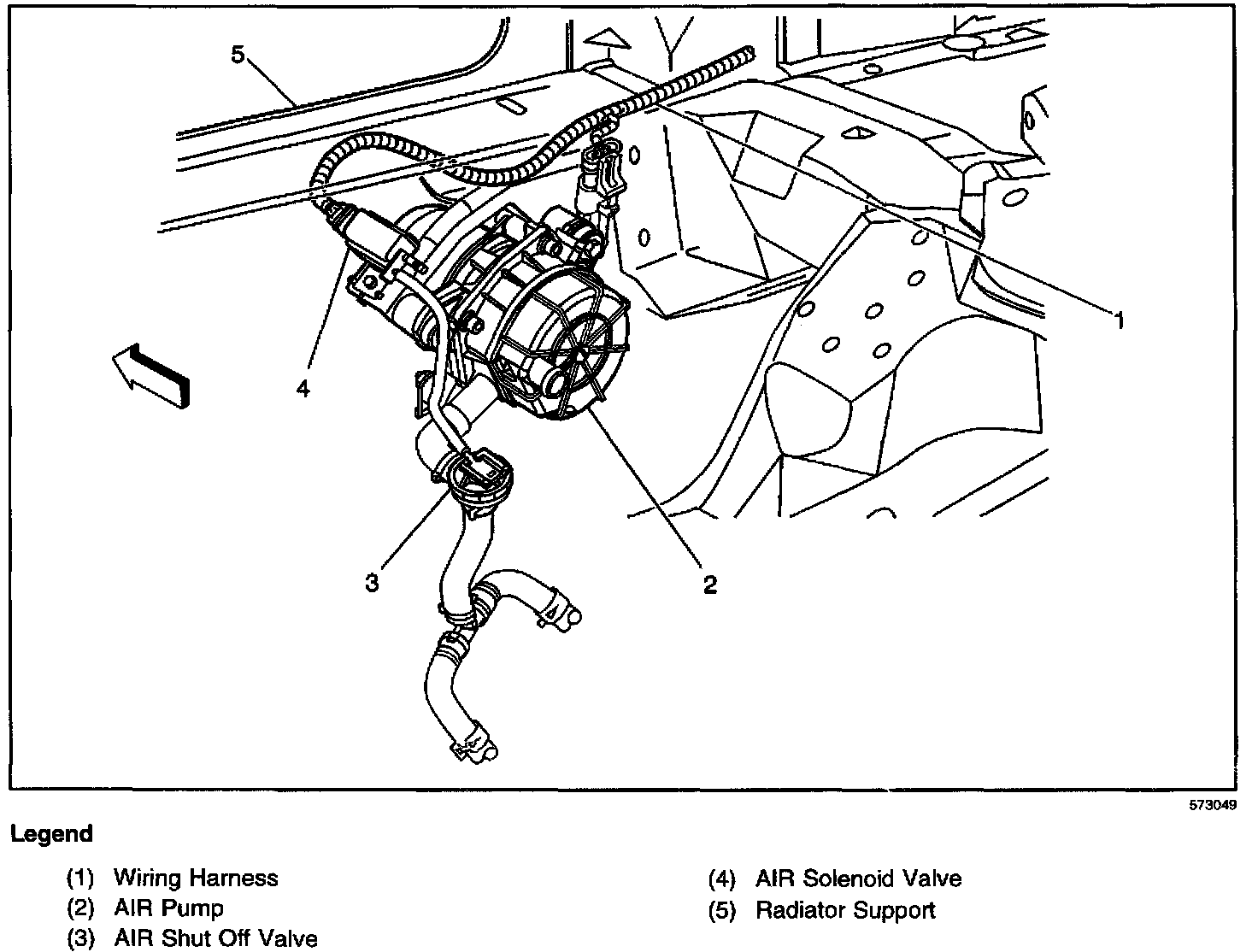

Air Injection Reactor (AIR) Pump, Shut Off Valve, And Solenoid Valve:
