Home >> Oldsmobile >> 1999 >> Bravada V6-4.3L VIN W >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Alternator >> Locations >> Component Locations

Component Locations

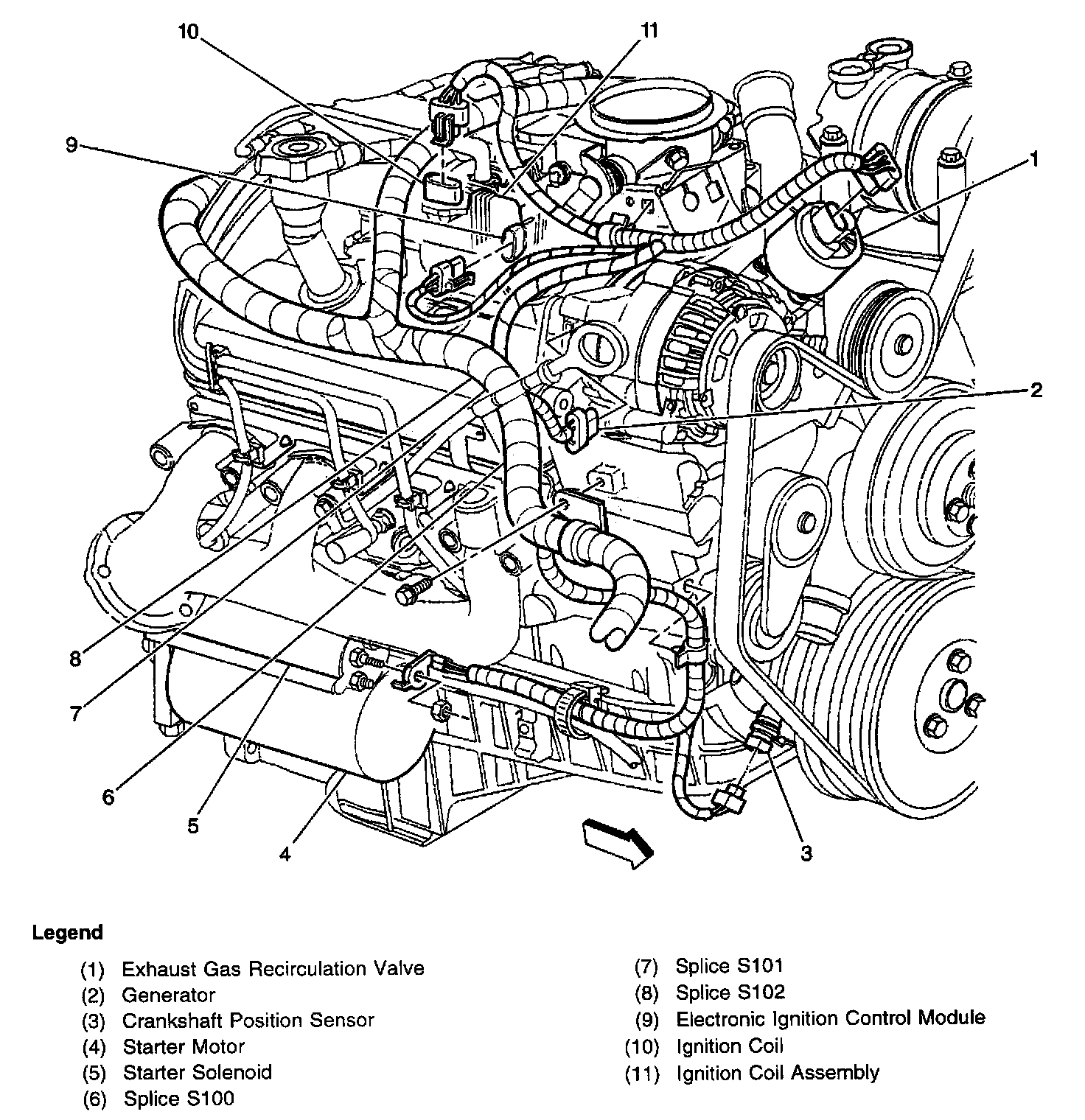

Engine Generator And Starter Locator View:




RF of the engine
