Instrument Panel (IP) - Dimmer Switch Replacement

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Disable the SIR system. Refer to Disabling the SIR System in SIR.

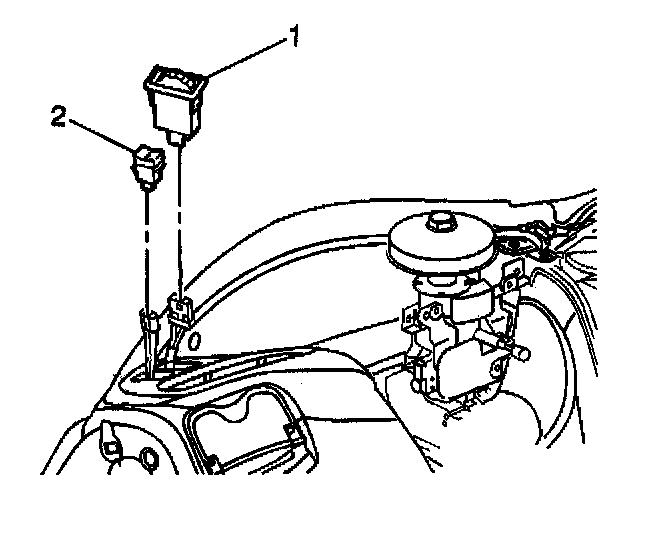

3. Use a blunt tool in order to unsnap the dimmer switch (1) from the trim plate.
4. Disconnect the electrical connector from the dimmer (1).
5. Remove the switch (1).

INSTALLATION PROCEDURE
1. Connect the electrical connector to the dimmer switch (1).
2. Install the dimmer switch (1) into the trim plate.
3. Enable the SIR system. Refer to Enabling the SIR System in SIR.
4. Connect the negative battery cable.
