SMCC Cruise Control Status Input

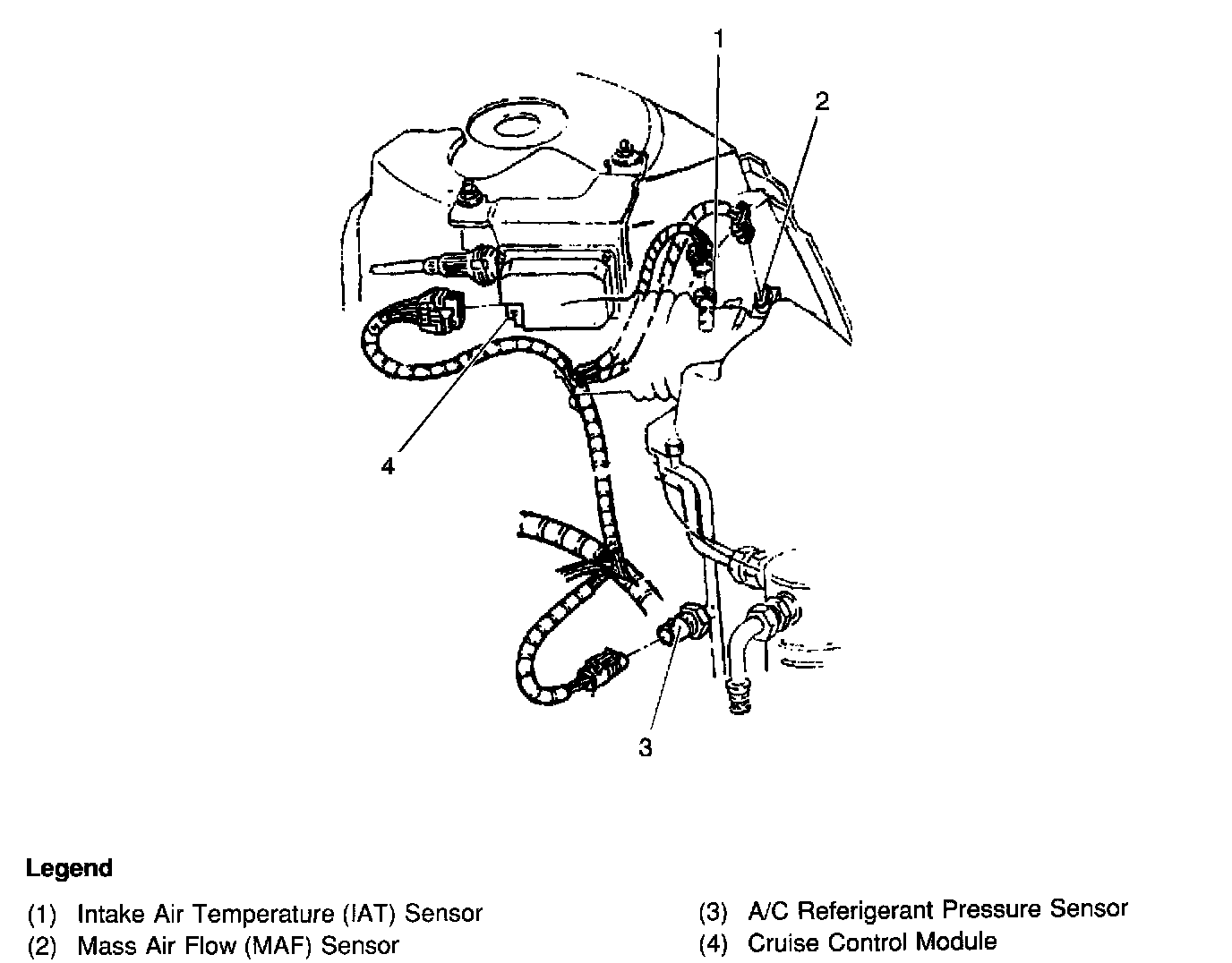

Component View:

The PCM monitors the cruise status signal while commanding cruise to be disengaged via the cruise inhibit circuit. Any of the following conditions may cause the PCM to inhibit cruise control operation:
^ Engine not running long enough for cruise control operation.
^ Transaxle range inputs indicate park, neutral, low, or reverse gear selected.
^ Engine speed is too high or too low.
^ Vehicle speed is too high or too low.
^ ABS system is active for longer than 2 seconds.

Vehicle acceleration or deceleration rate is too high.
