Home
>>
Oldsmobile
>>
1999
>>
Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

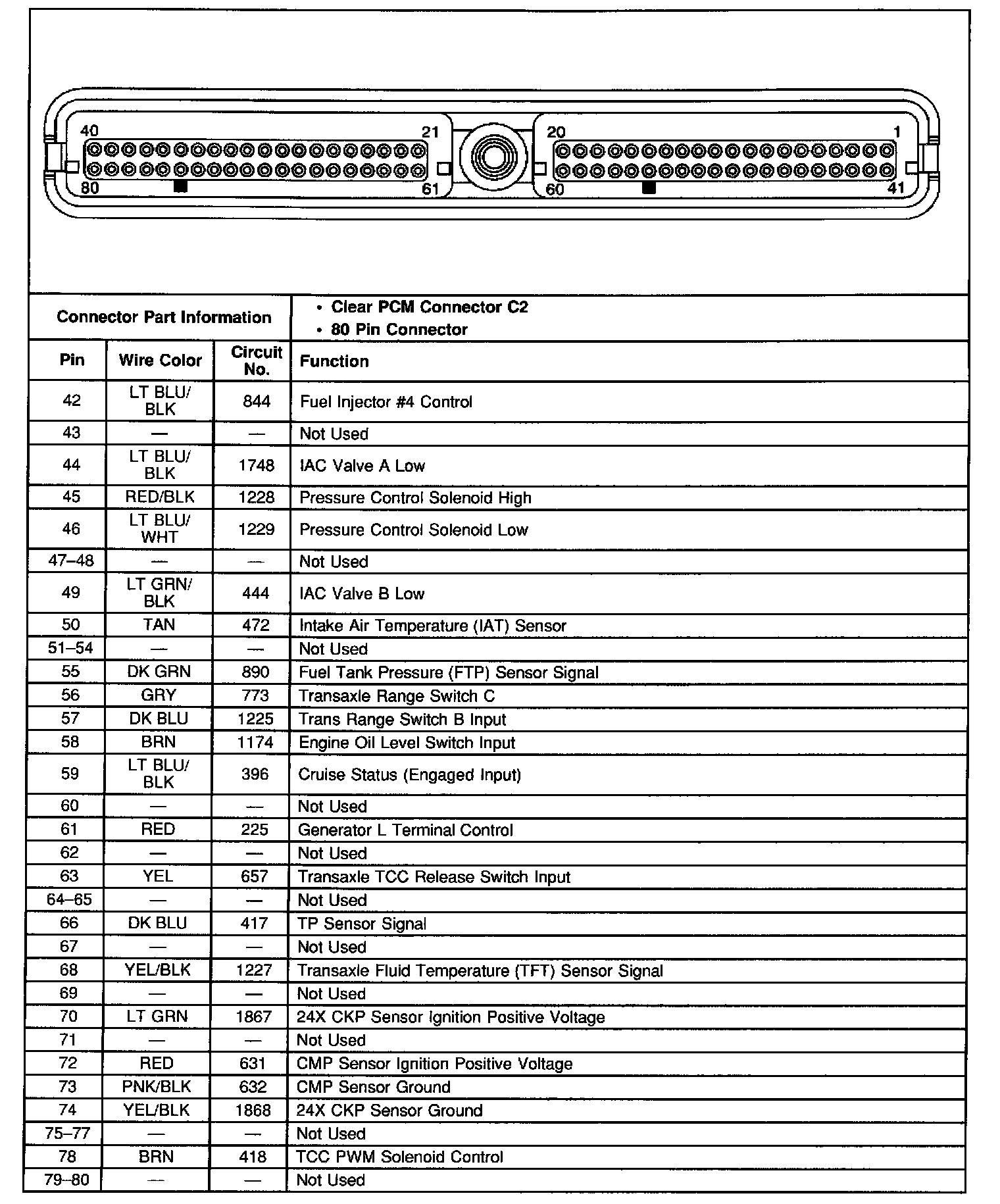

Engine Control Module
>>
C2
>>
Pin 42 - 80
Pin 42 - 80
