Alternator: Service and Repair

The generator does not require periodic lubrication. The rotor shaft is mounted on bearings. Each bearing contains a permanent grease supply. Periodically check the mounting bolts for tightness, and the drive belt tension. The drive belt is self-adjusting, within the operating limits of the tensioner.

Unit Repair
Service the CS-130D generator as a complete unit.

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the drive belt.
3. Remove the generator electrical connections.

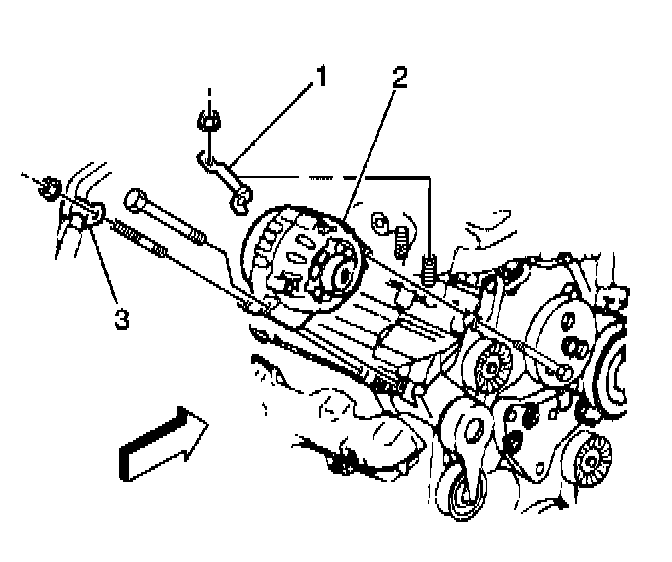

4. Remove the power steering line clip (3).
5. Remove the generator mounting nuts and bolts.
6. Remove the generator (2).

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Install the generator (2).

Tighten
^ Tighten the bolts to 50 N.m (37 lb ft).
^ Tighten the nuts to 30 N.m (22 lb ft).

2. Install the generator electrical connections.
3. Install the power steering line clip (3).
4. Install the drive belt.
5. Connect the negative battery cable.

Tighten
Tighten the bolt to 15 N.m (11 lb ft).
