Home >> Oldsmobile >> 1999 >> Cutlass V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Junction Block >> LH IP Junction Block C2

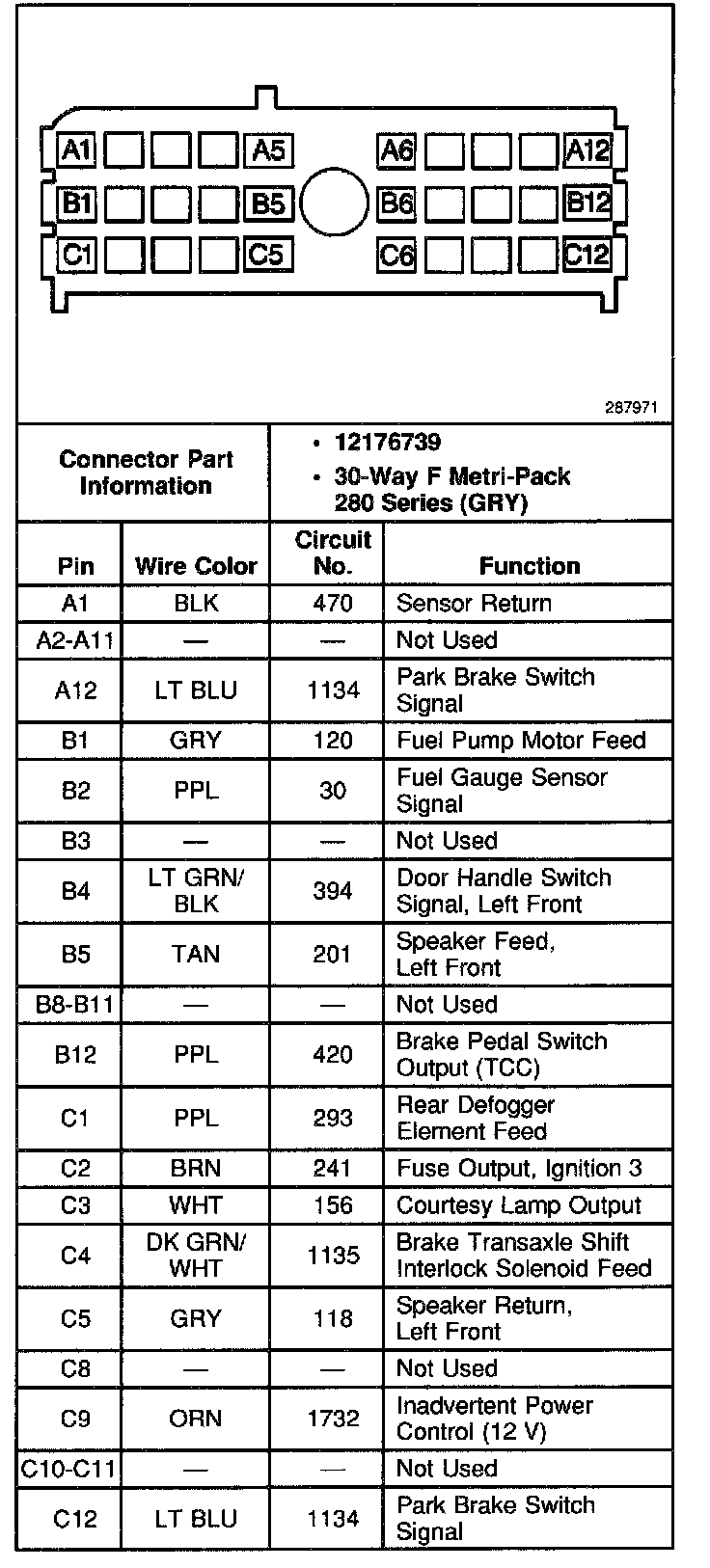

LH IP Junction Block C2

LH IP Junction Block C2:
