With EVAP Service Port

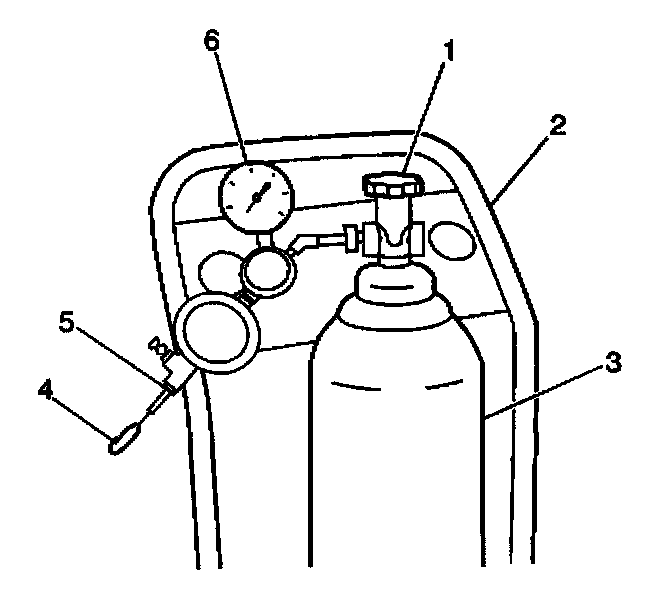

1. Connect the [1][2]EVAP diagnostic cart J 41413 to the vehicle EVAP service port. Turn the four position switch to Purge.
2. Start the engine. Allow the engine to reach the operating temperature.
3. Open the throttle until the engine speed reaches 2000 RPM.
4. Note the H2O vacuum gauge on the [1][2]EVAP cart. The vacuum should read greater than 15 in H2O.
5. If the vacuum is less than 15 in H2O, perform a complete throttle body service including a cleaning of the purge ports. Proceed to step 1.
6. If the vacuum is greater than 15 in H2O, continue with the diagnostics.
