Oldsmobile
>>
1999
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
Engine

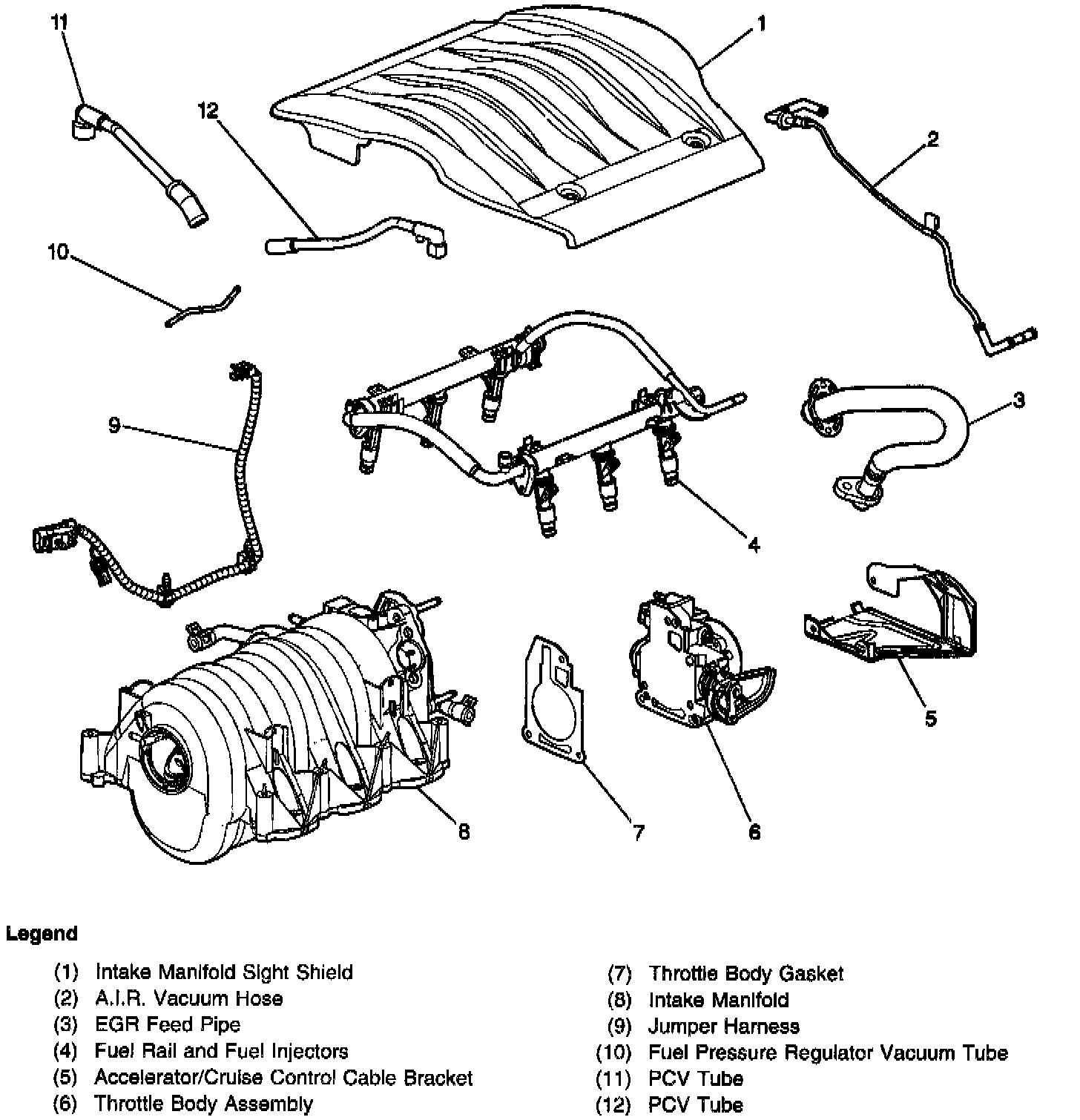

INTAKE MANIFOLD
AND FUEL COMPONENTS

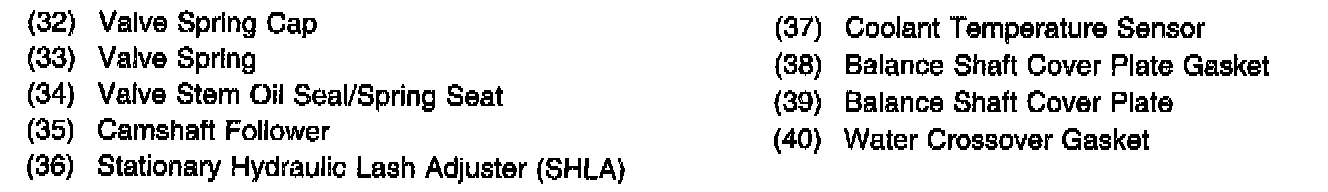

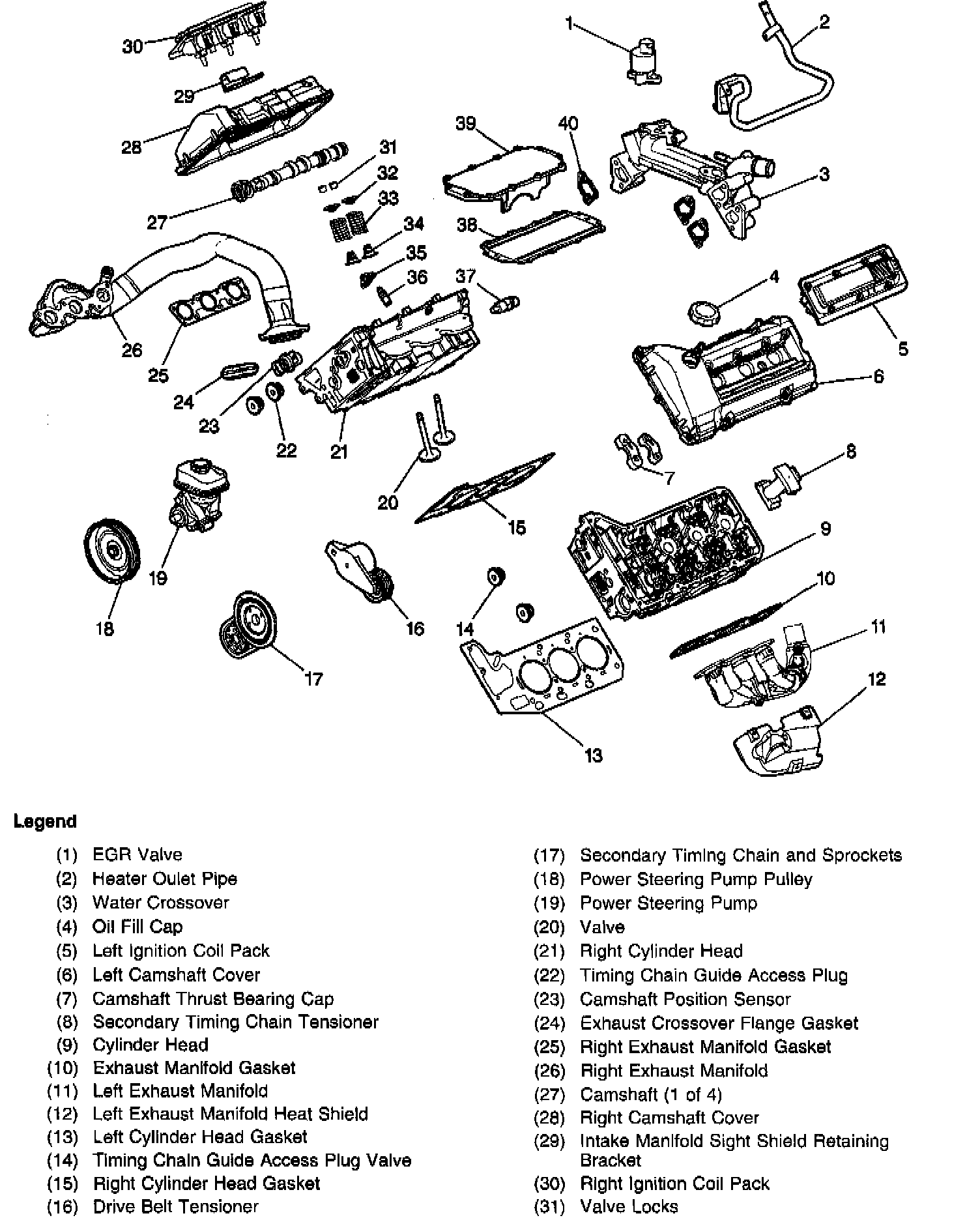

UPPER ENGINE COMPONENTS

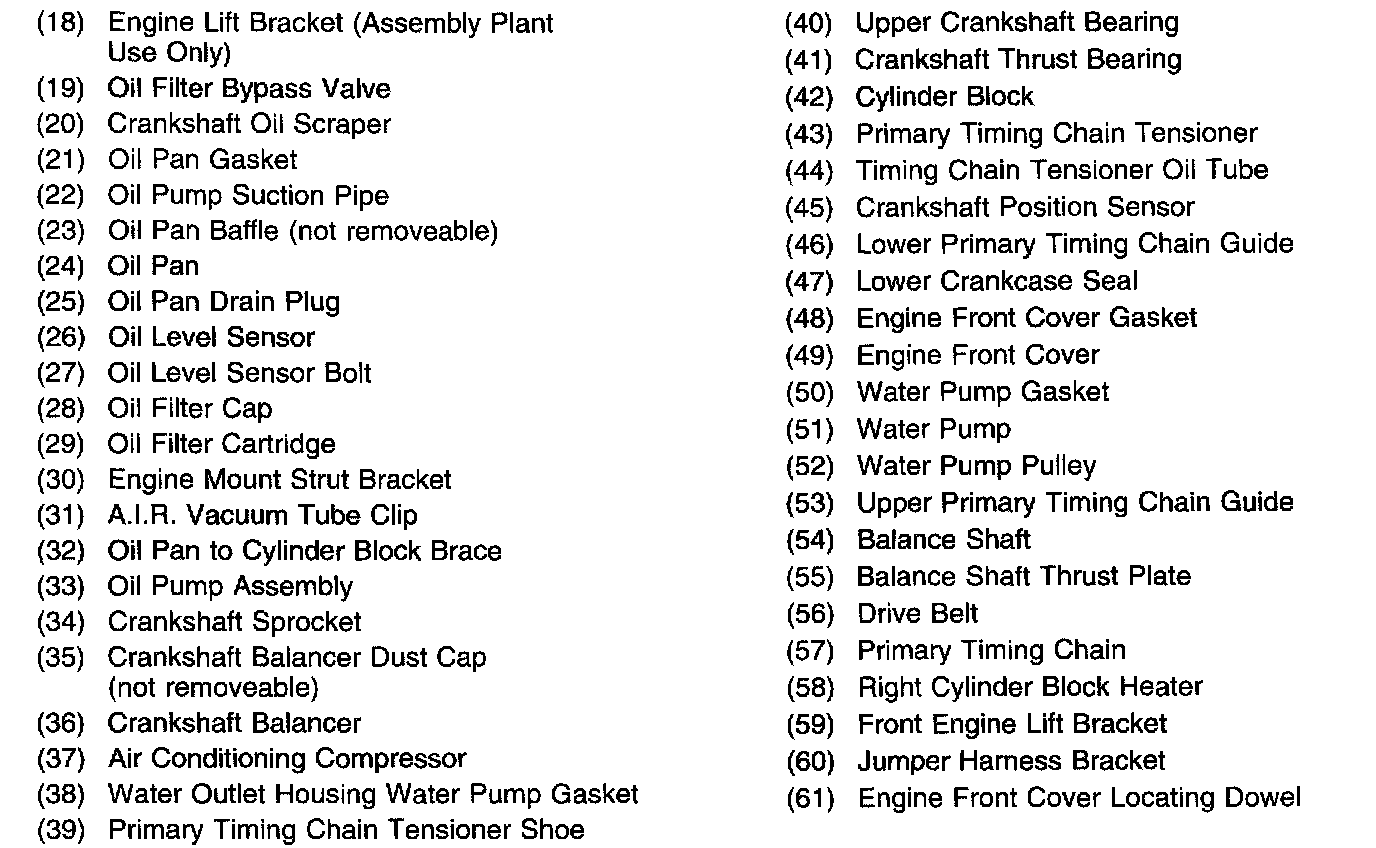

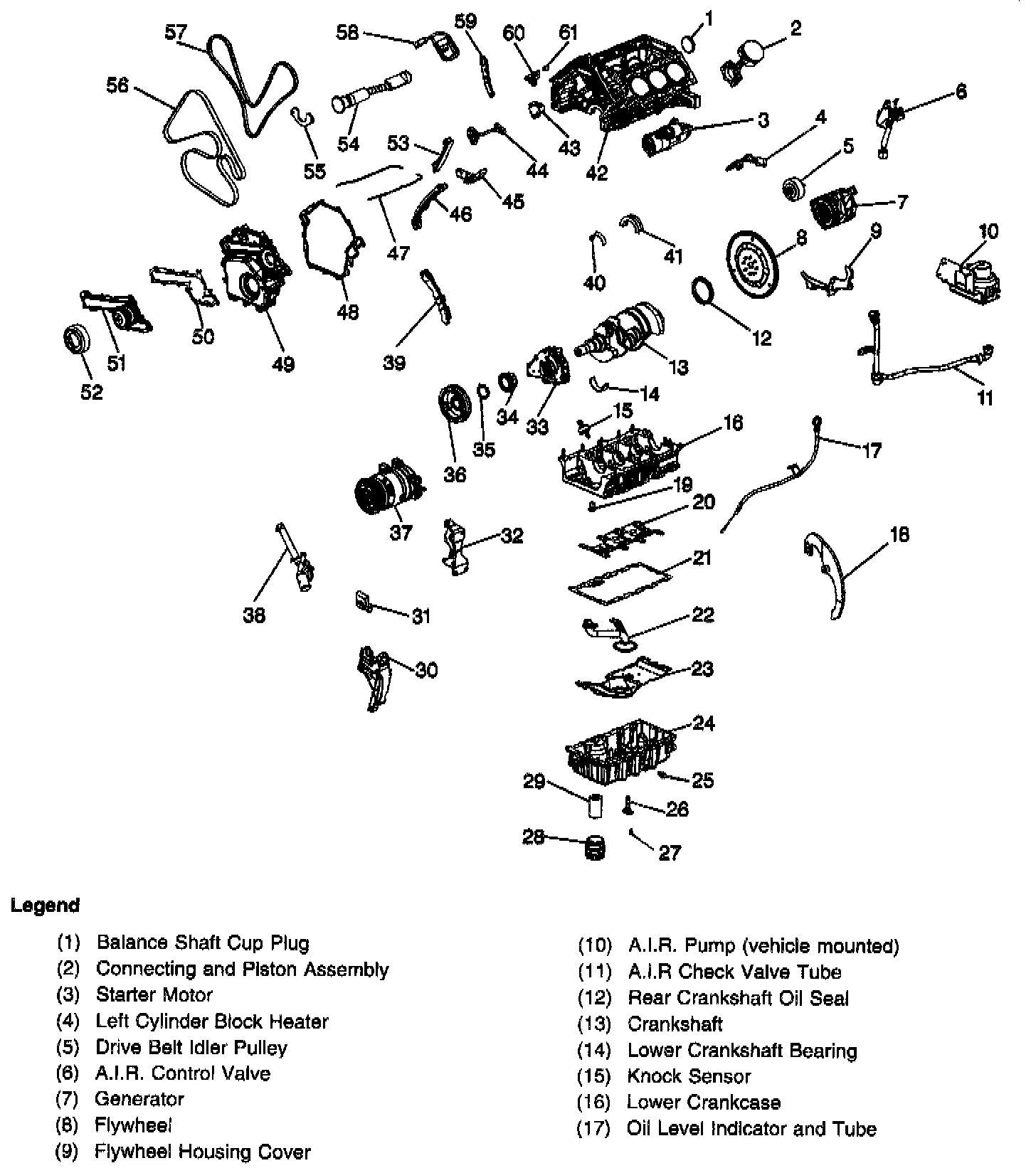

LOWER ENGINE COMPONENTS
