Thread Repair Specifications

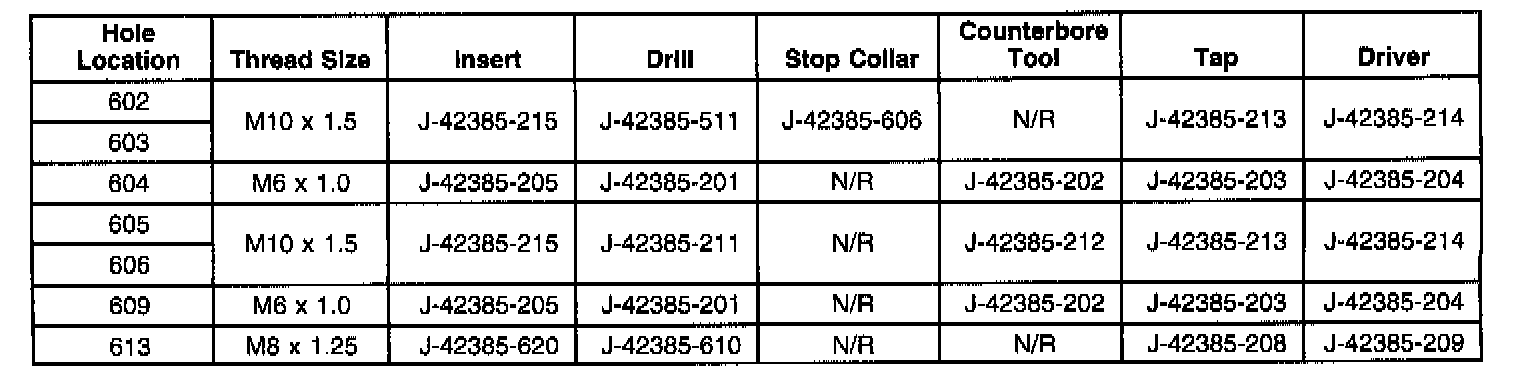

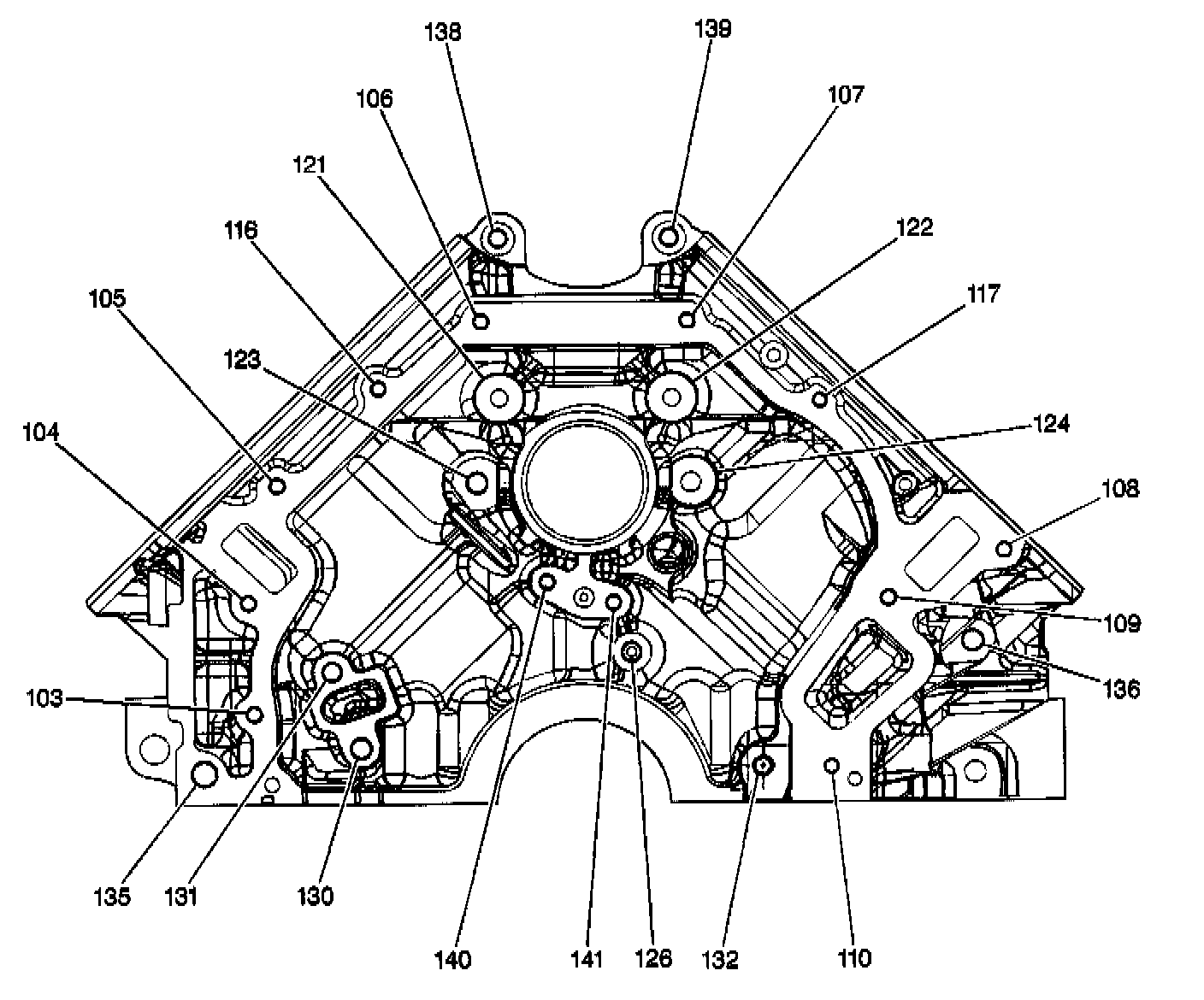

CYLINDER BLOCK - FRONT FACE

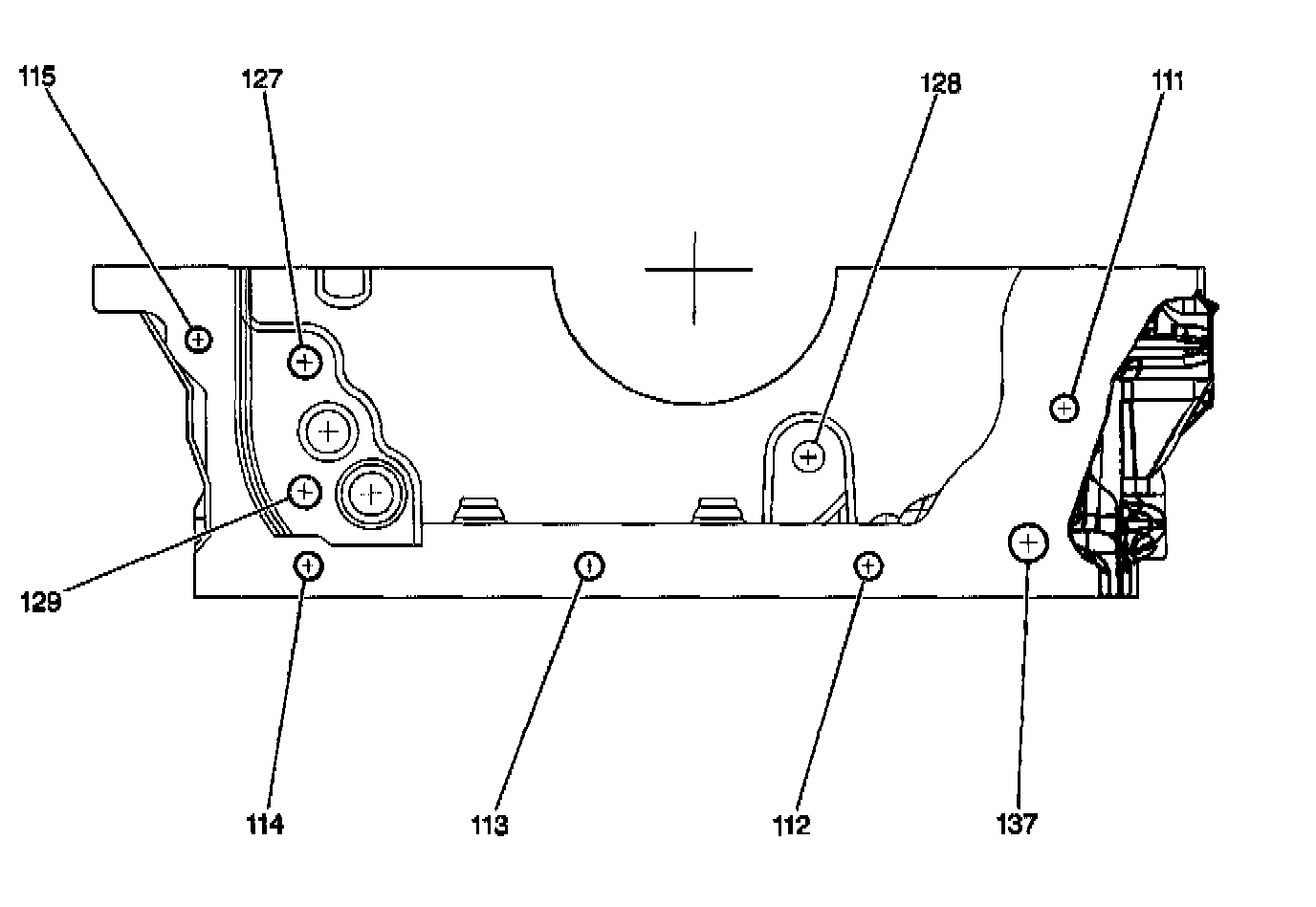

CYLINDER BLOCK - LEFT SIDE

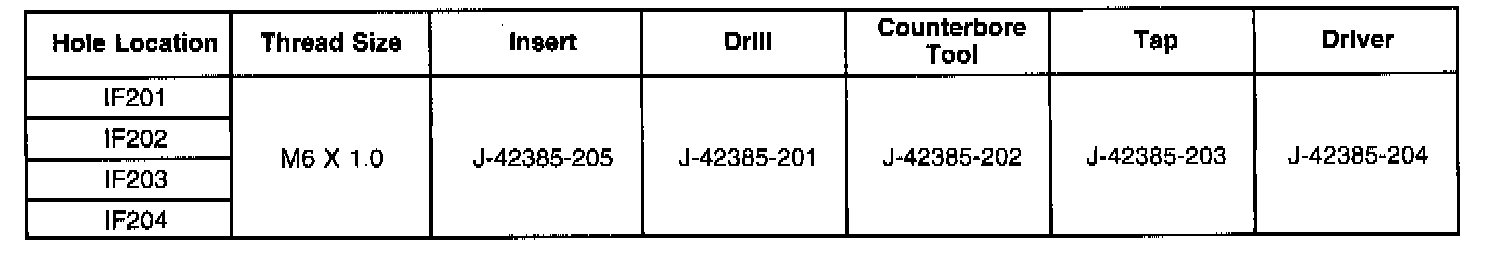

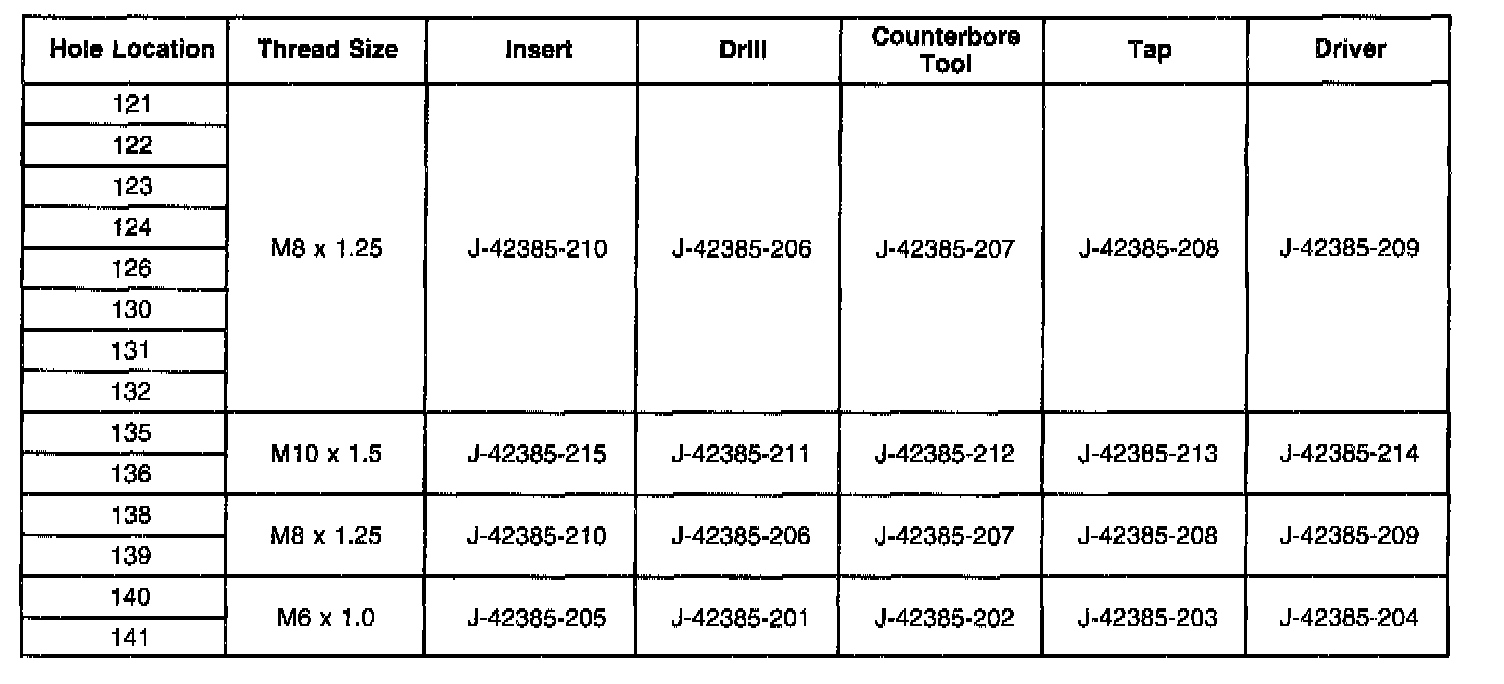

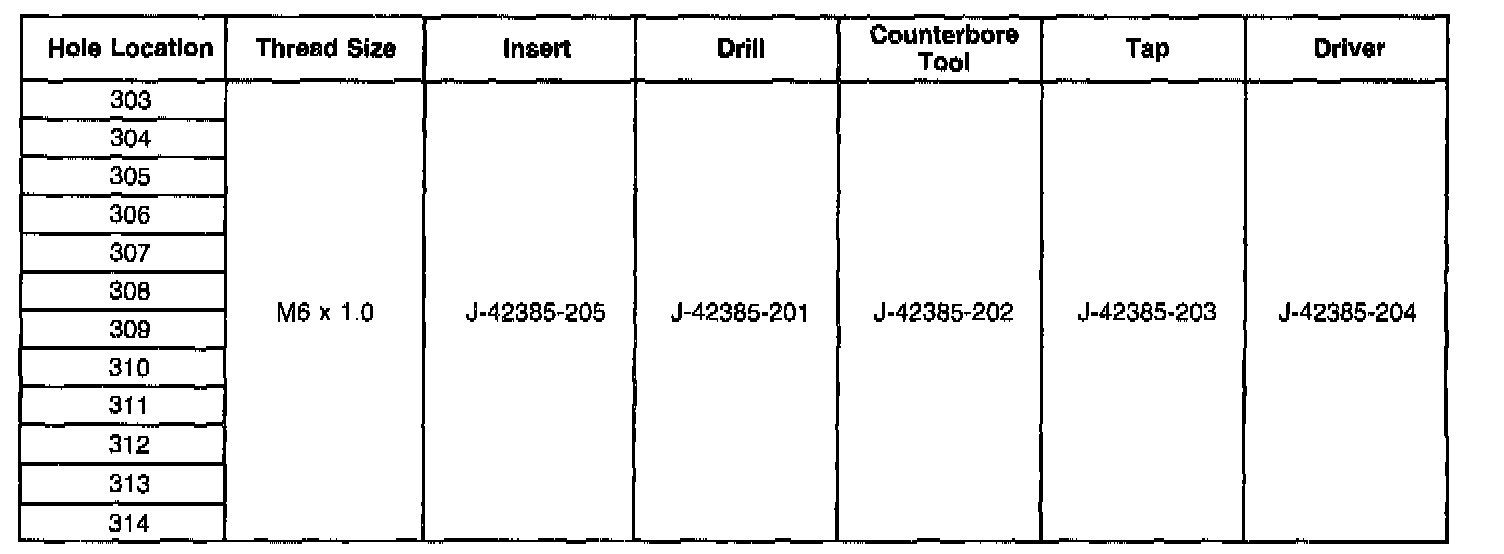

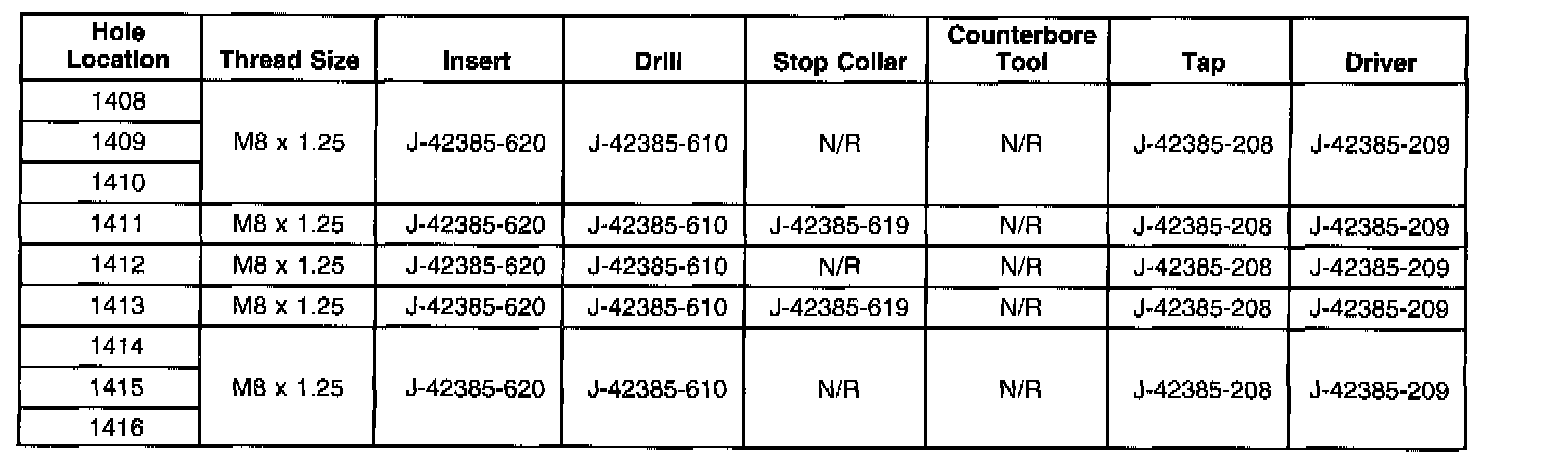

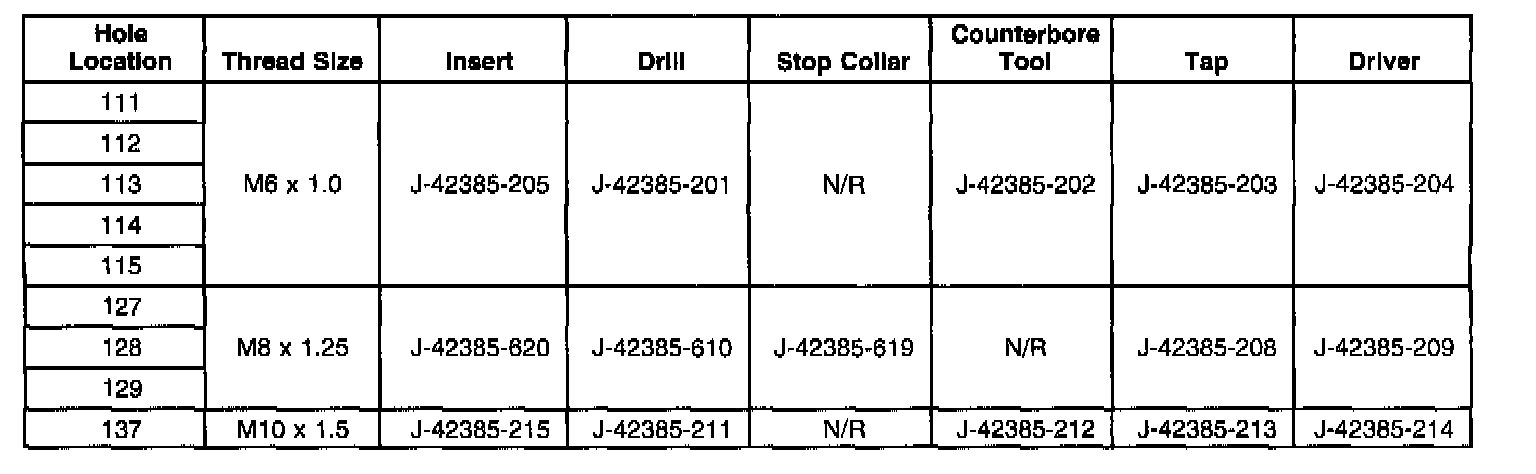

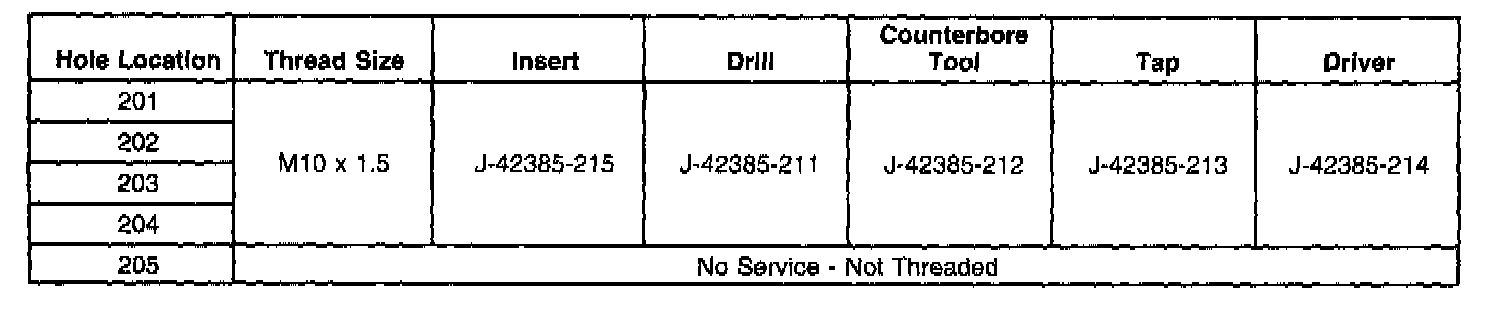

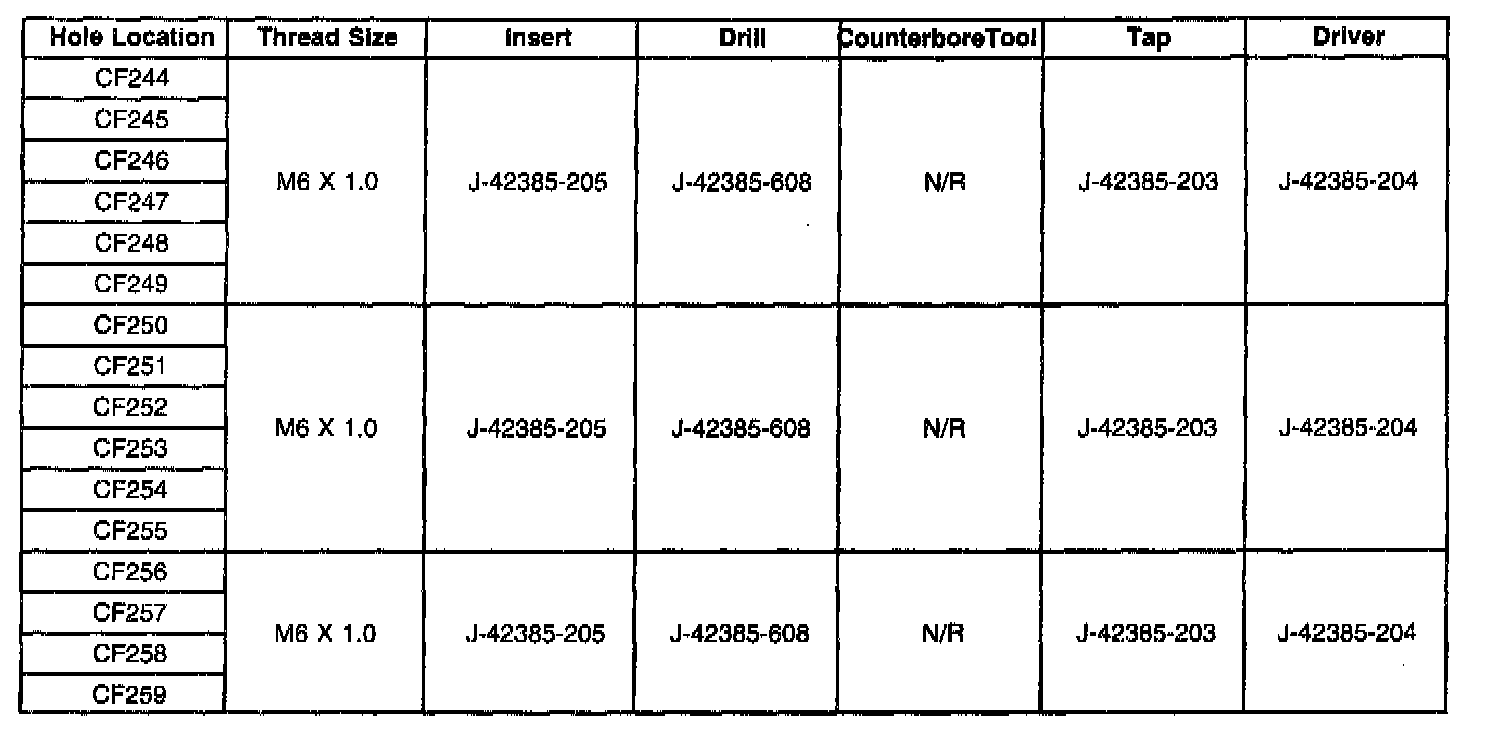

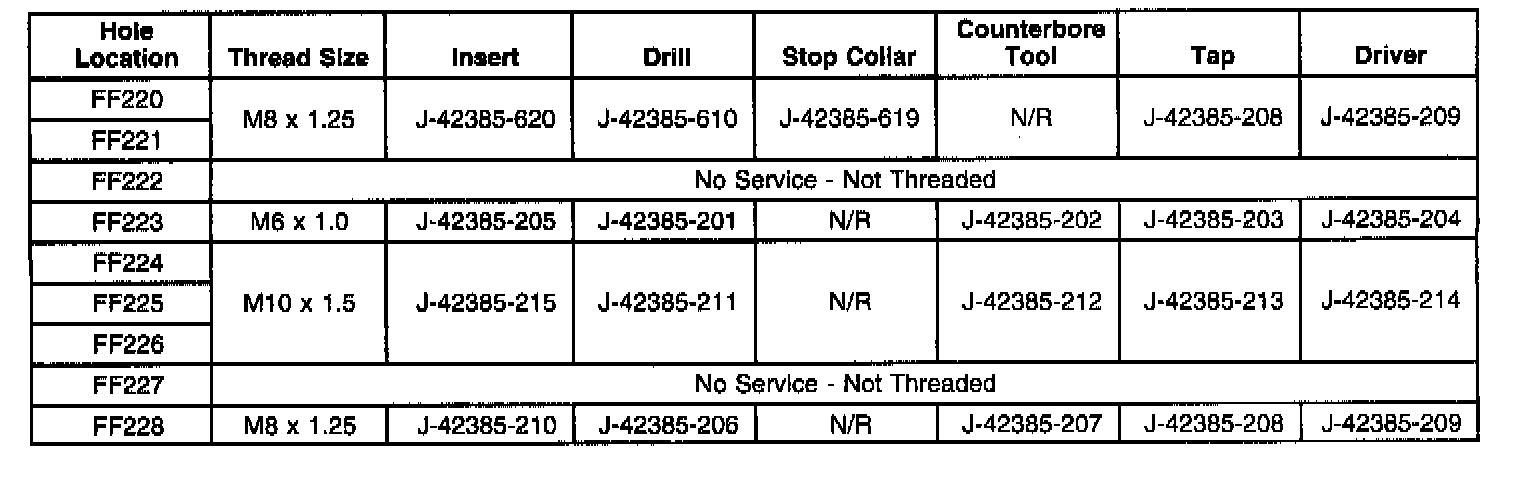

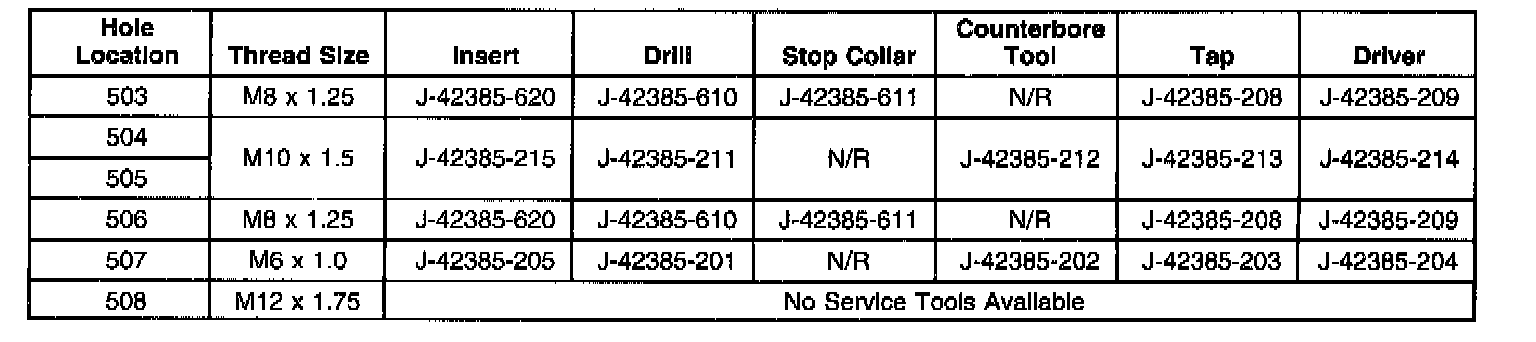

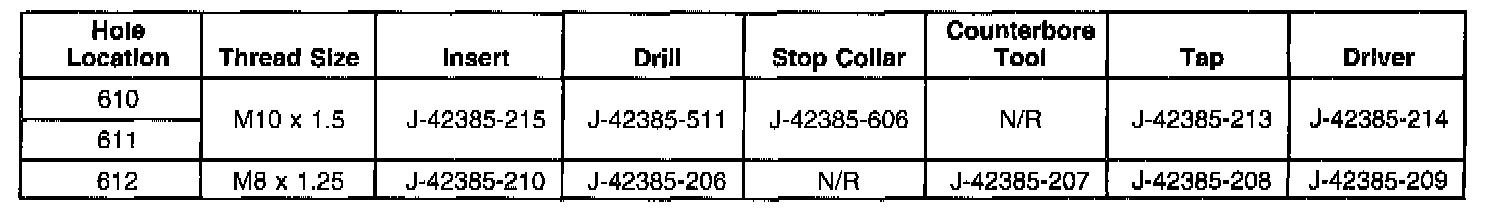

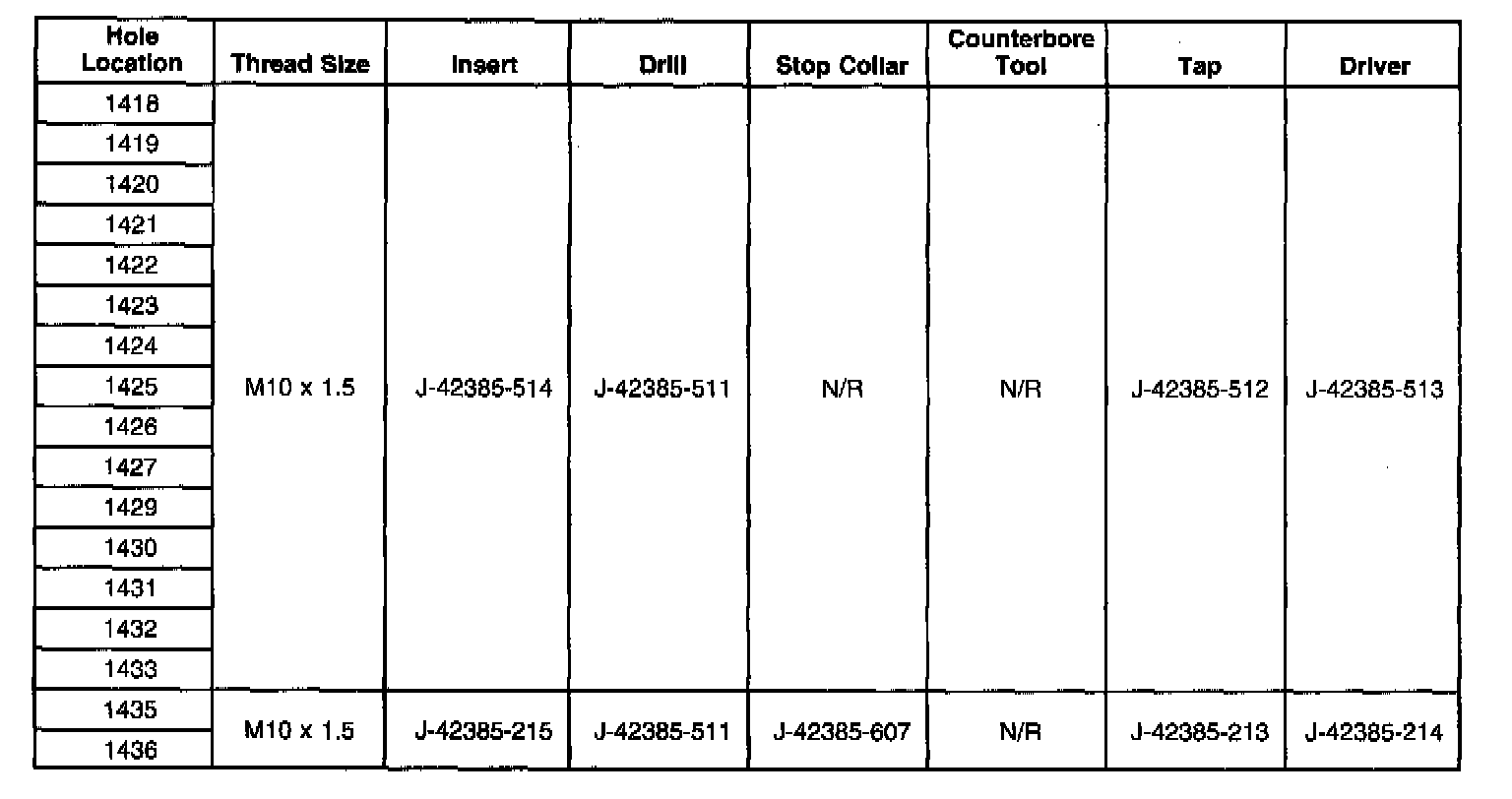

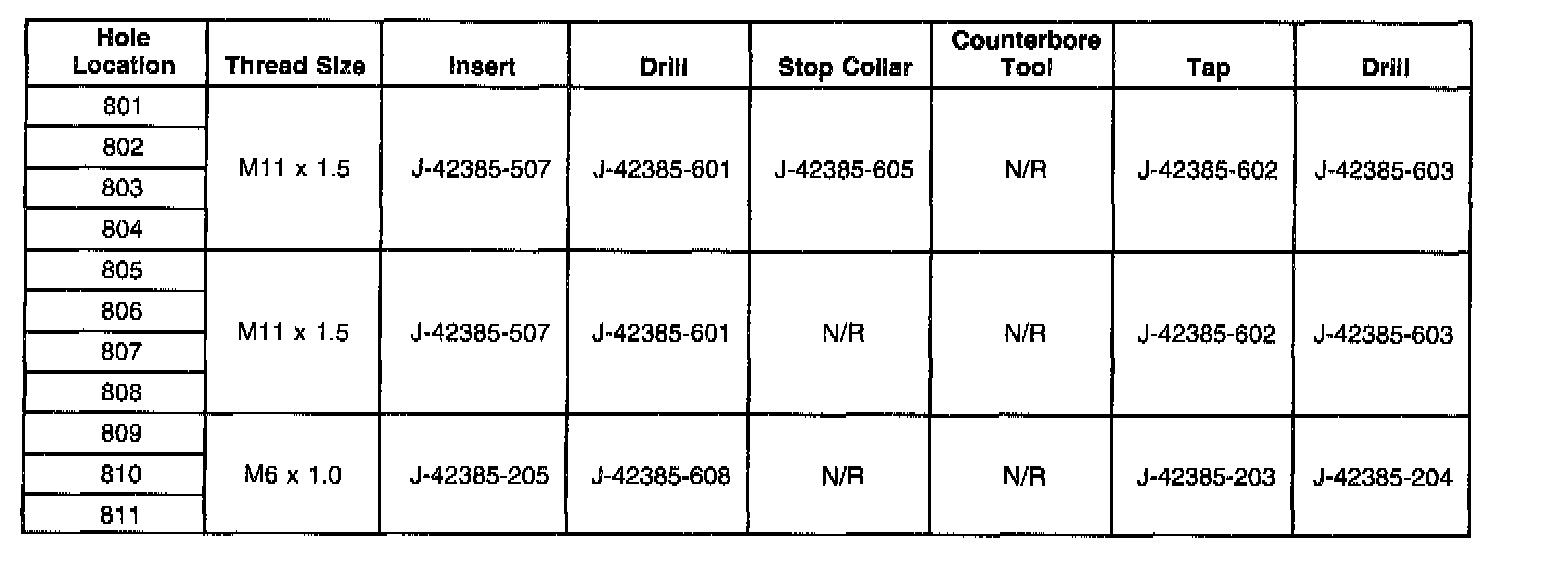

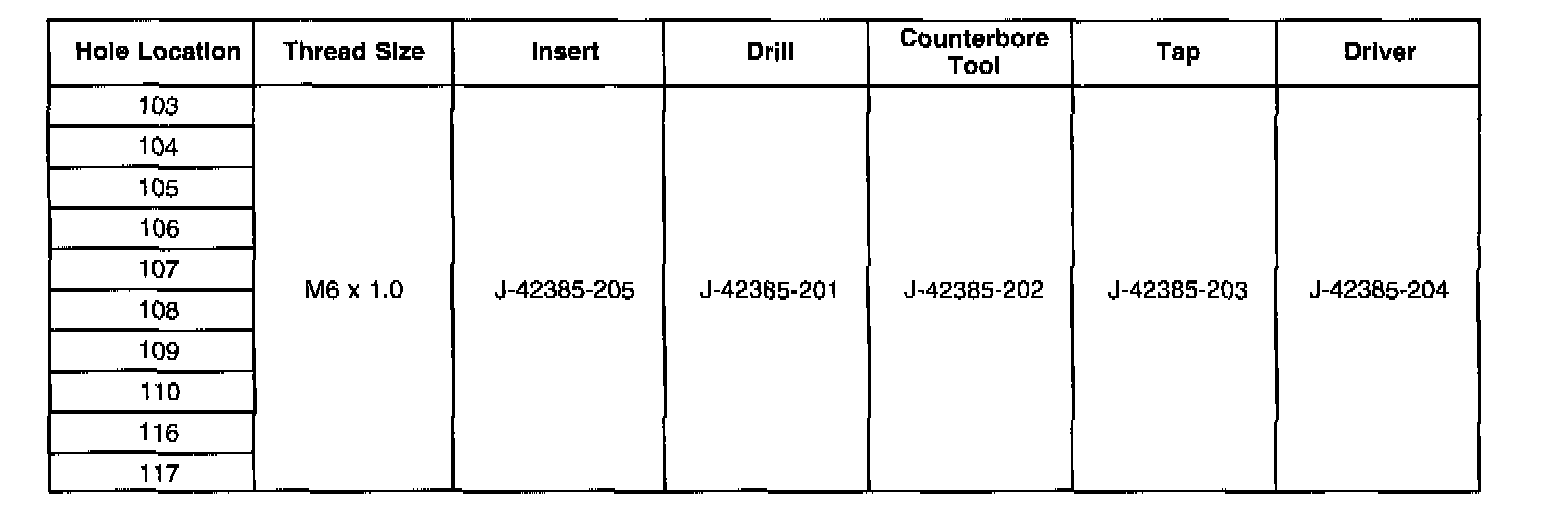

THREAD REPAIR SPECIFICATIONS

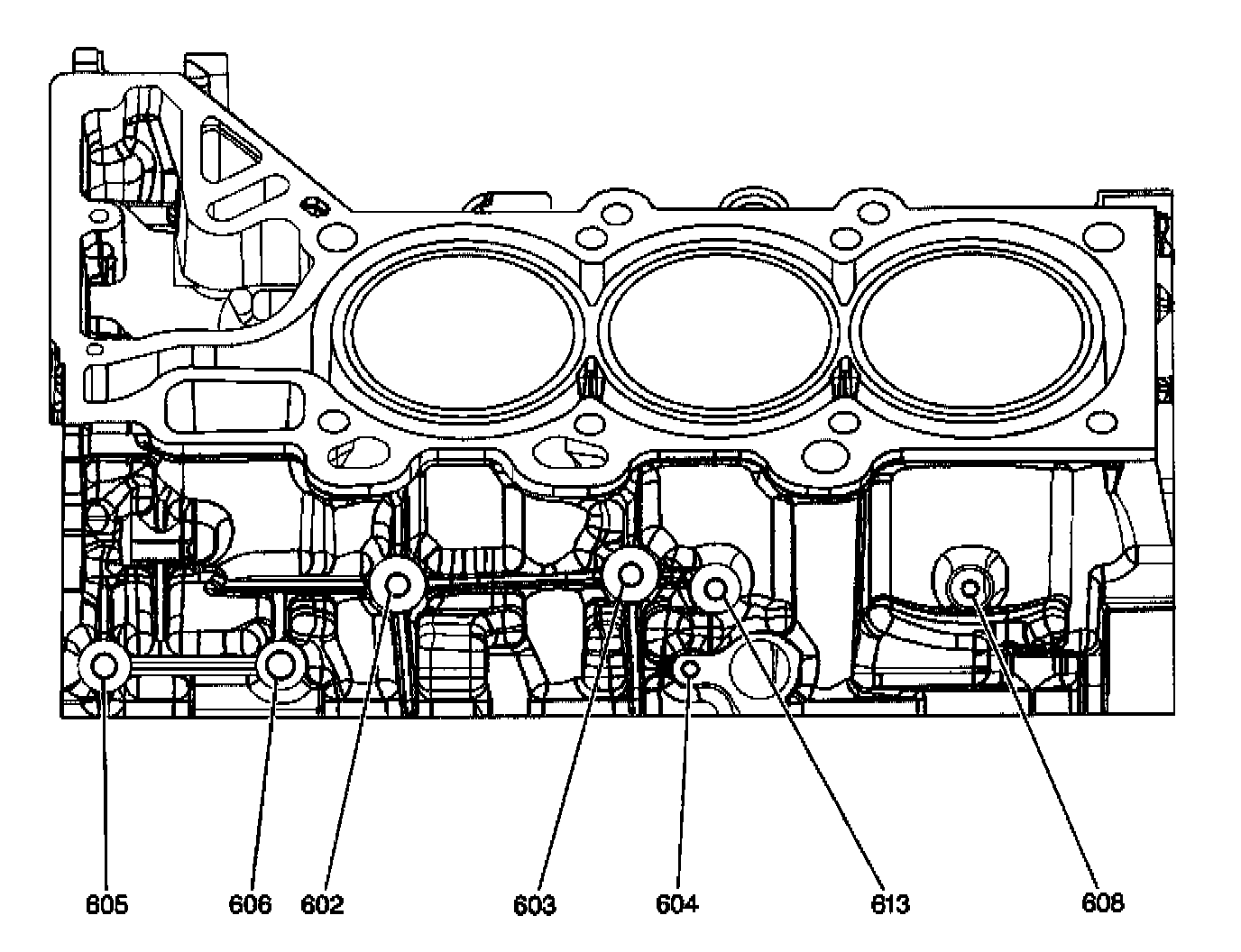

CYLINDER BLOCK - RIGHT SIDE






CYLINDER BLOCK - RIGHT SIDE






CYLINDER BLOCK - REAR FACE






CYLINDER BLOCK - REAR FACE

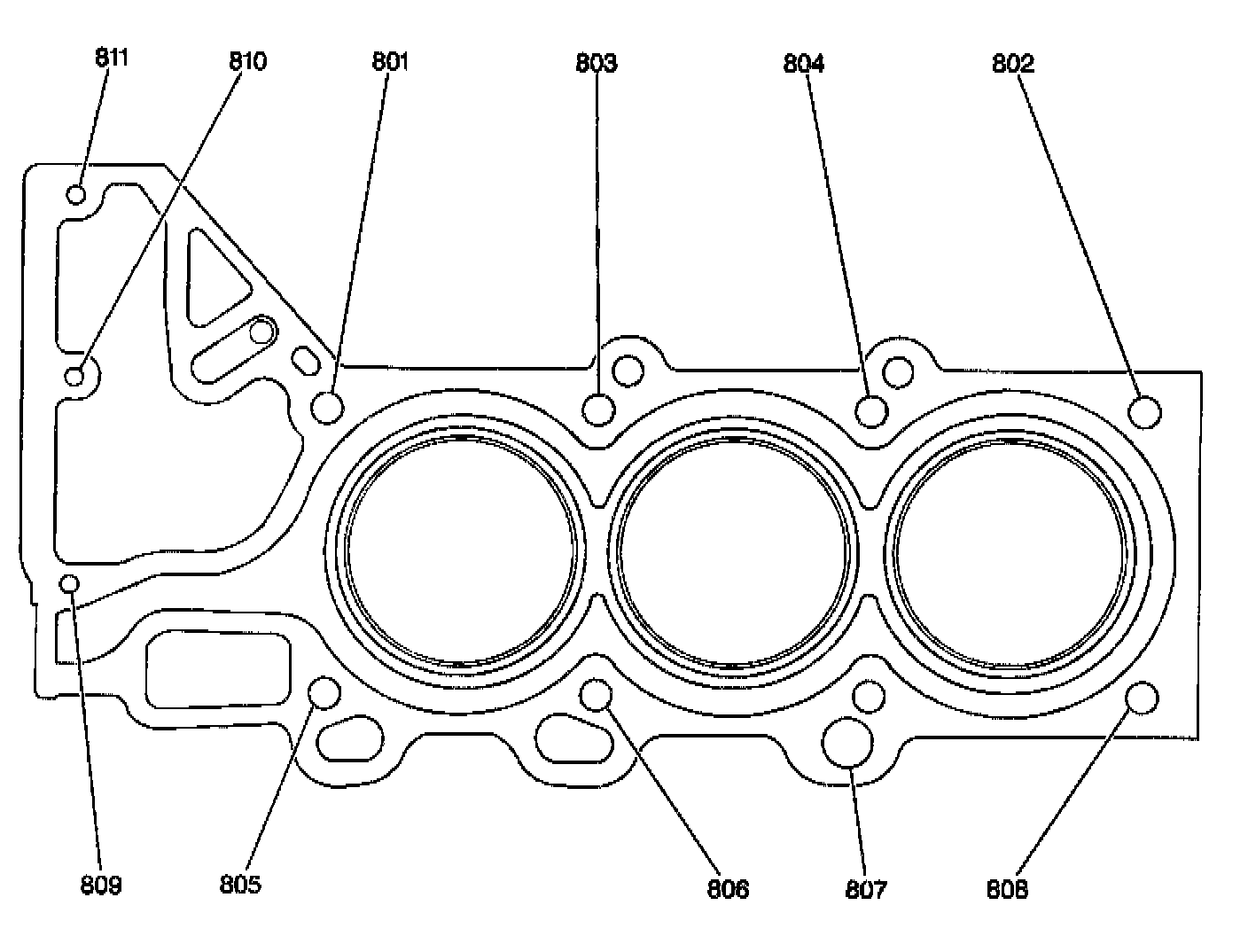

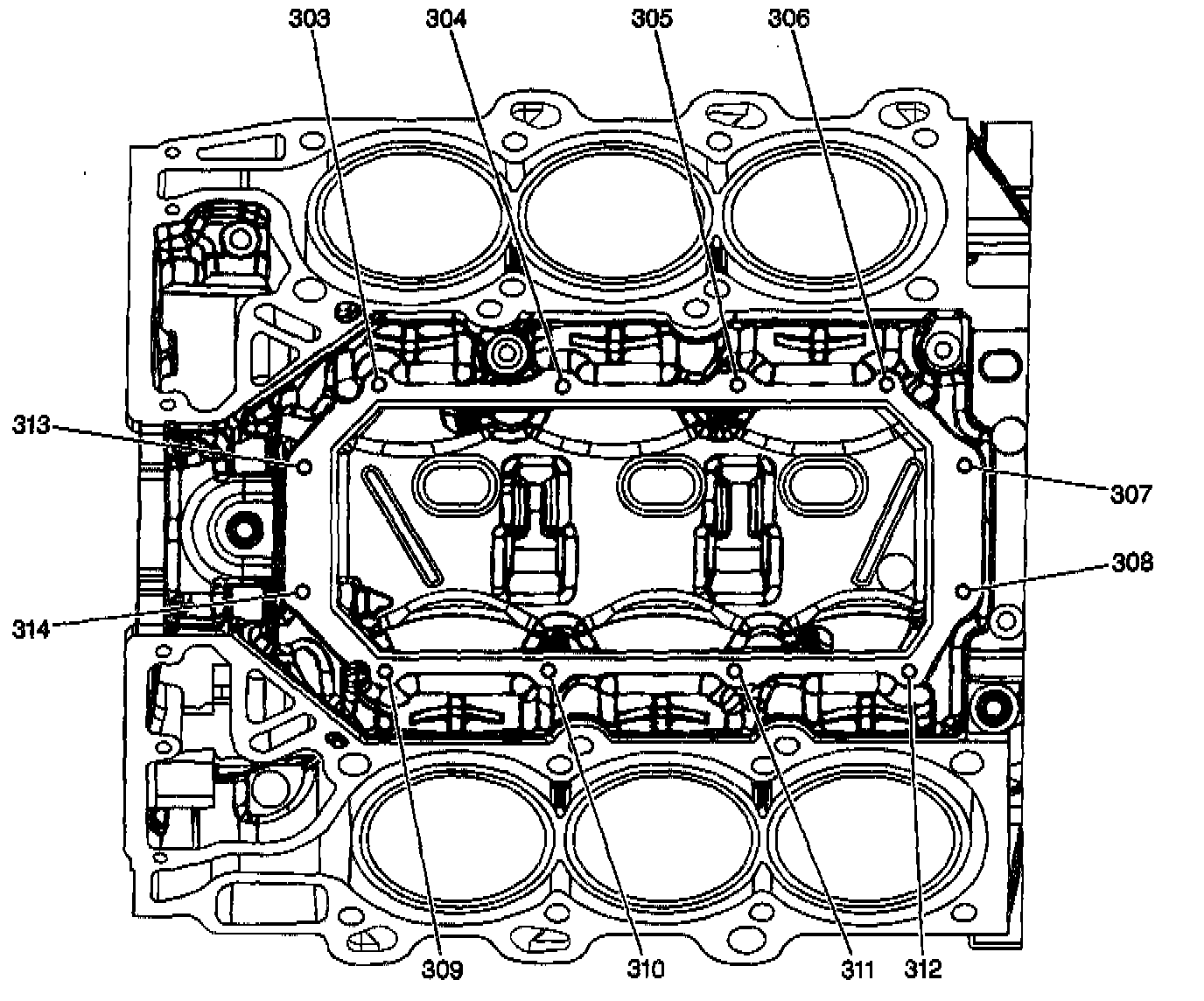

CYLINDER BLOCK - UPPER JOINT FACE









CYLINDER BLOCK - UPPER JOINT FACE

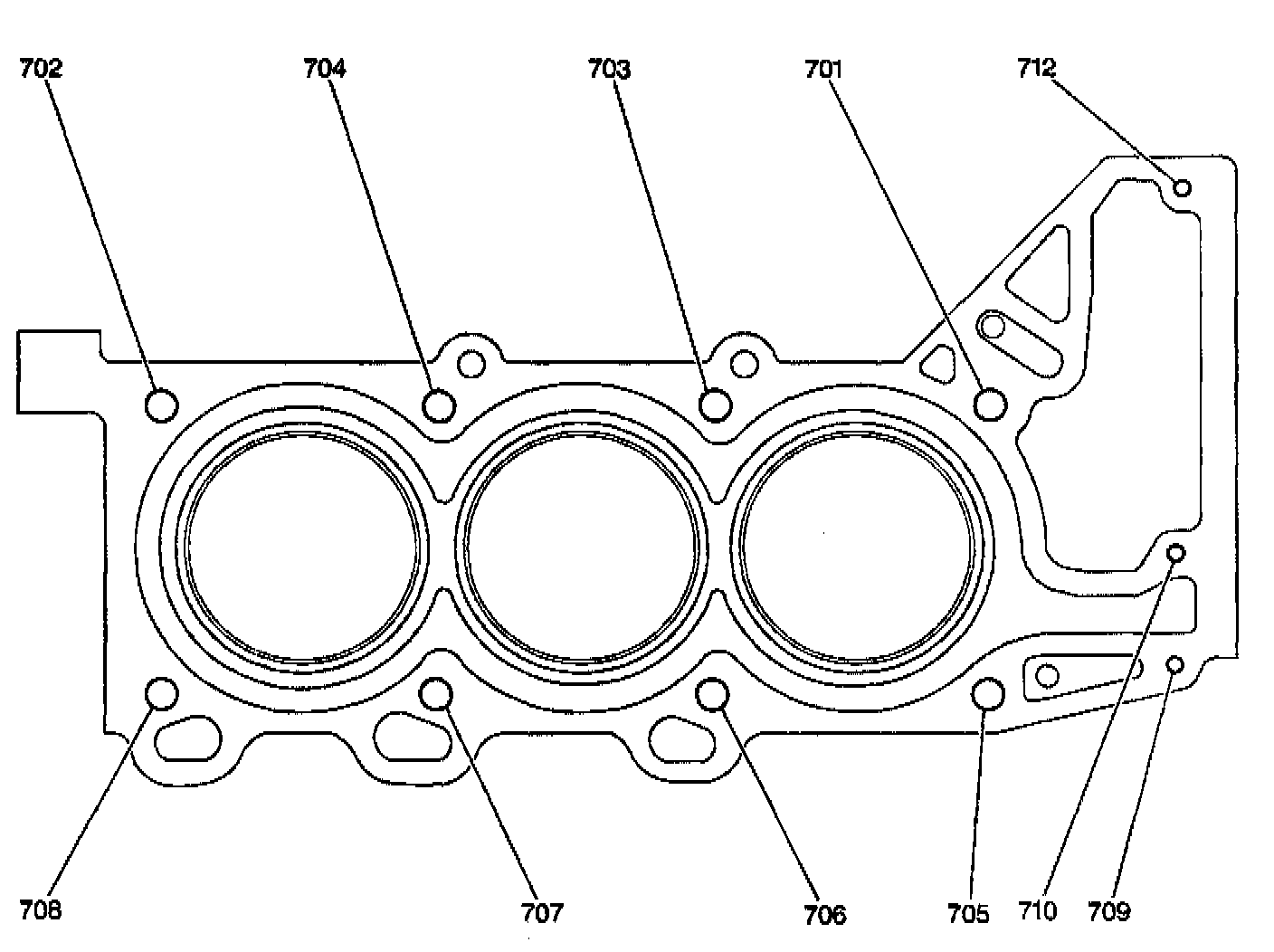

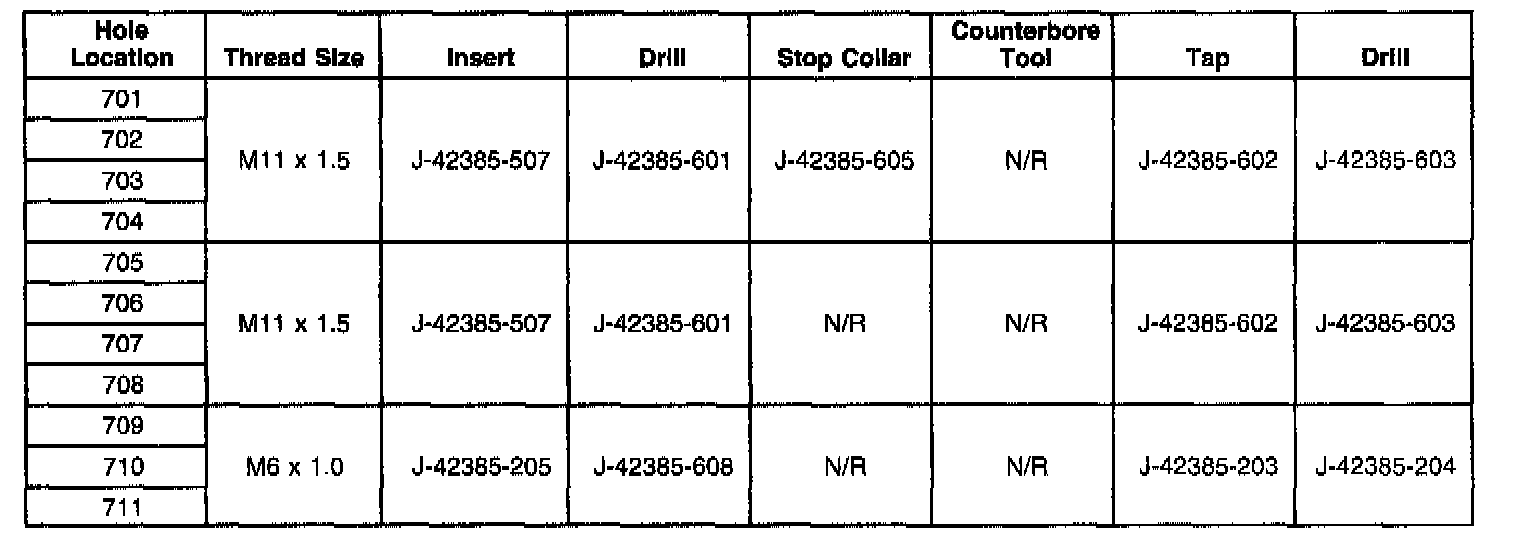

LEFT BANK DECK FACE






LEFT BANK DECK FACE






RIGHT BANK DECK FACE






RIGHT BANK DECK FACE

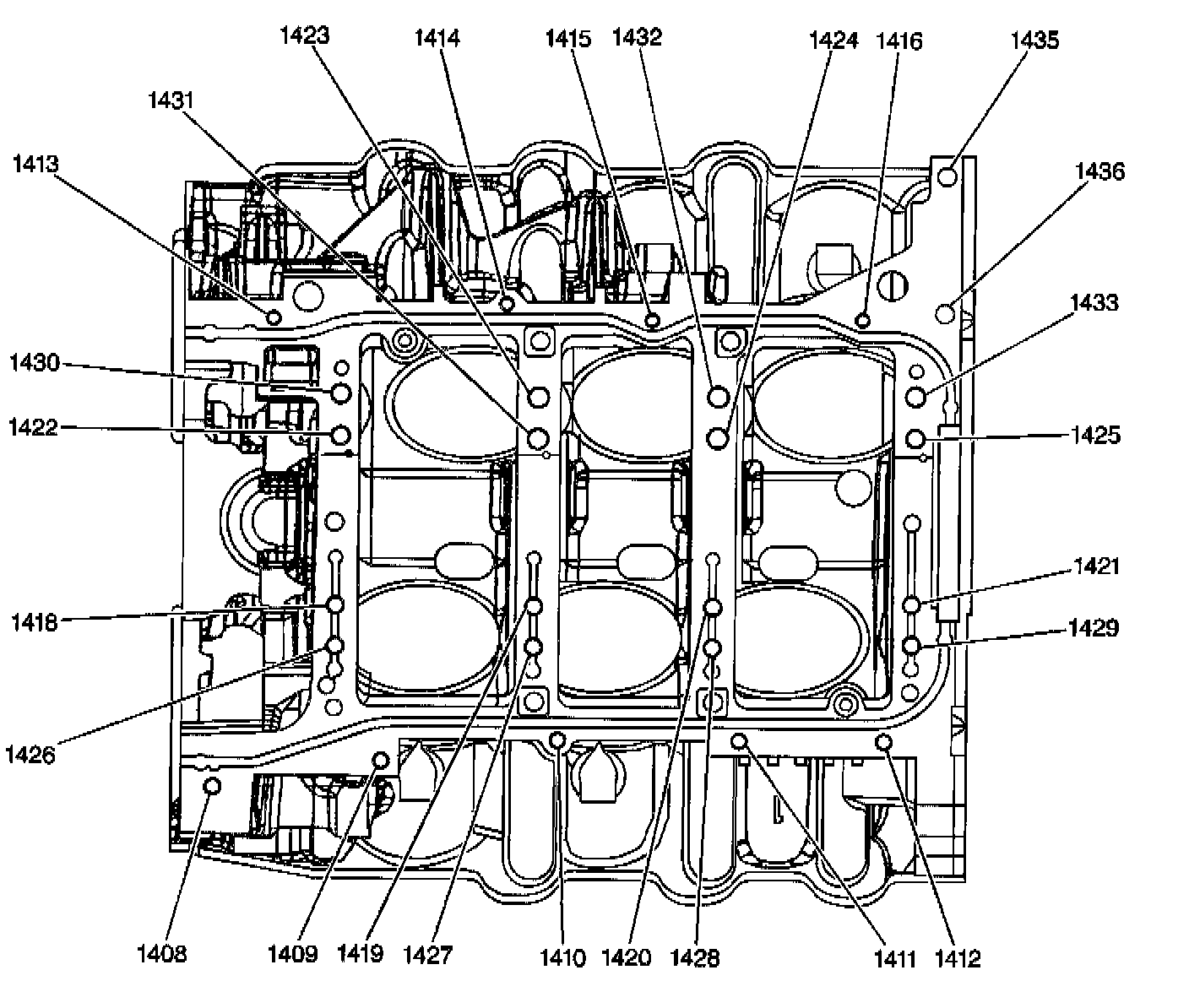

CYLINDER BLOCK TOP VIEW






CYLINDER BLOCK TOP VIEW






LOWER CRANKCASE FRONT FACE






LOWER CRANKCASE FRONT FACE






LOWER CRANKCASE LEFT SIDE






LOWER CRANKCASE LEFT SIDE

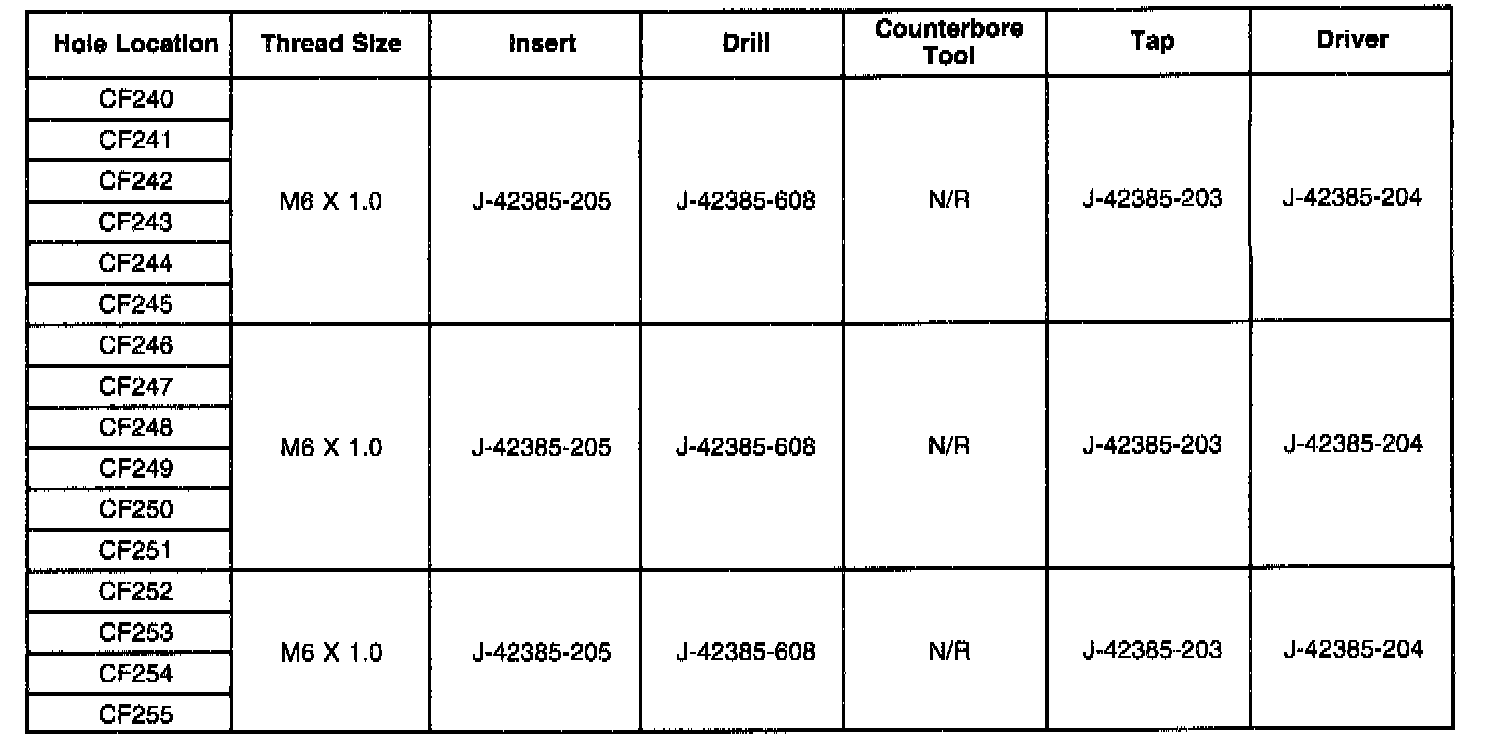

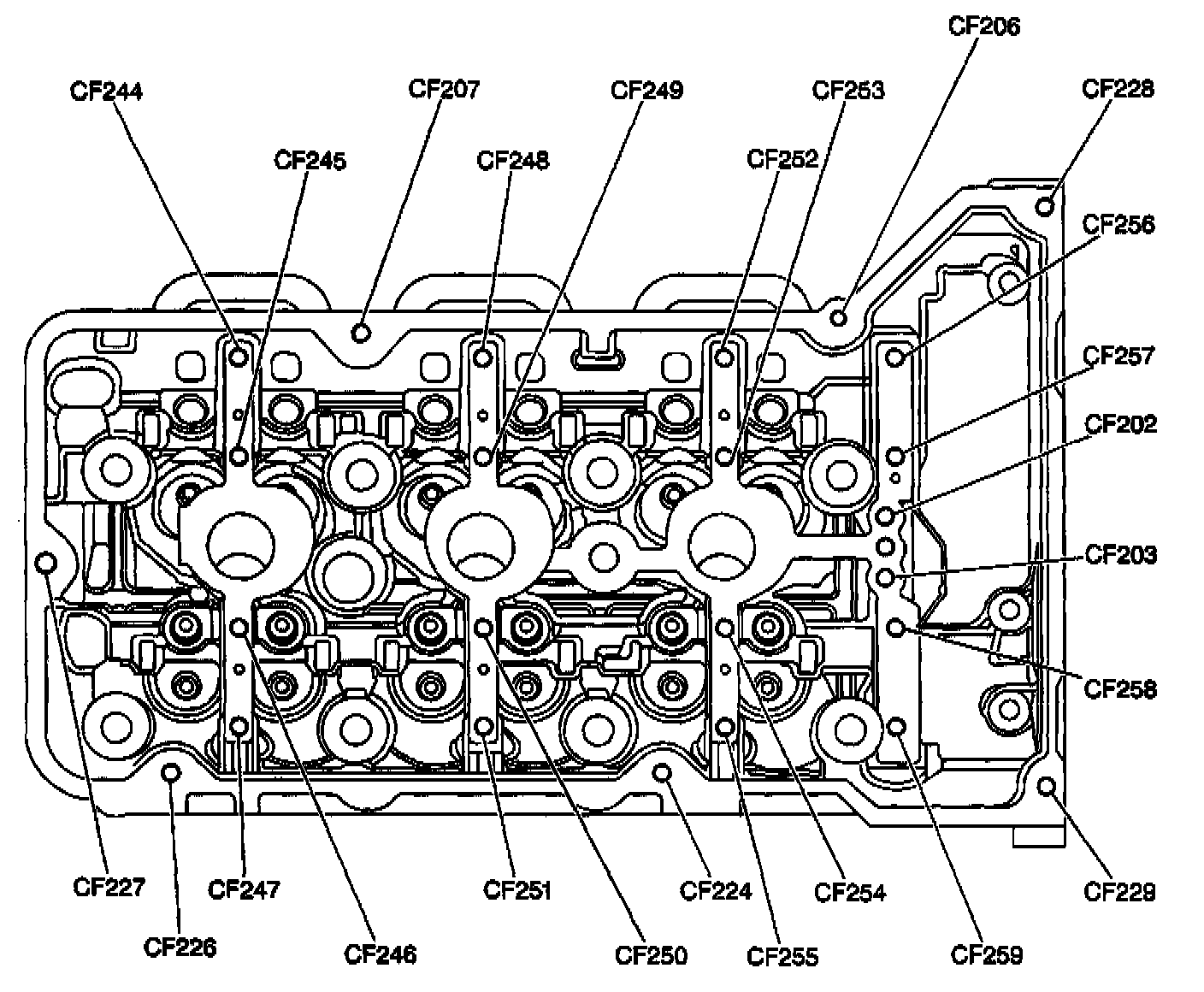

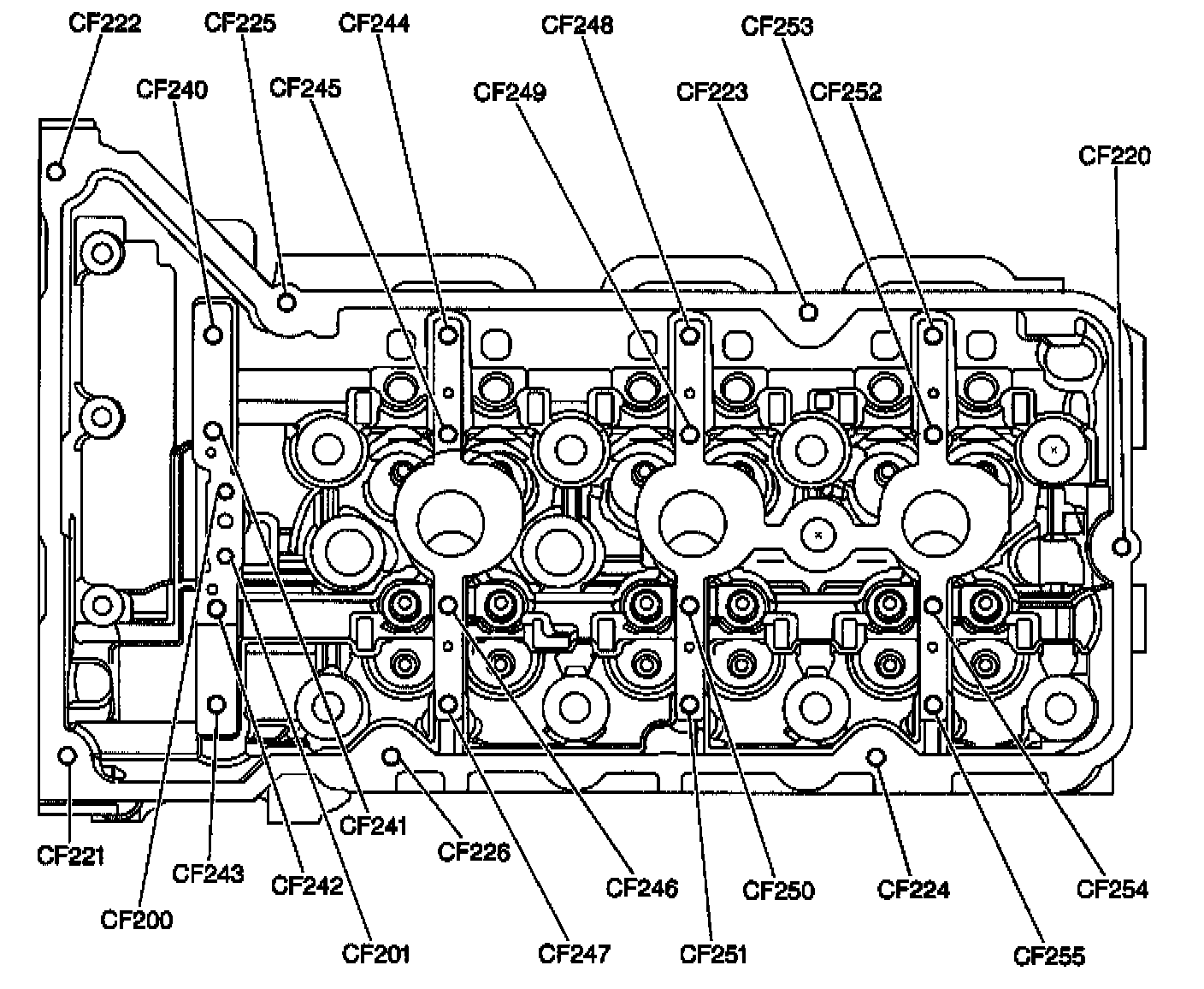

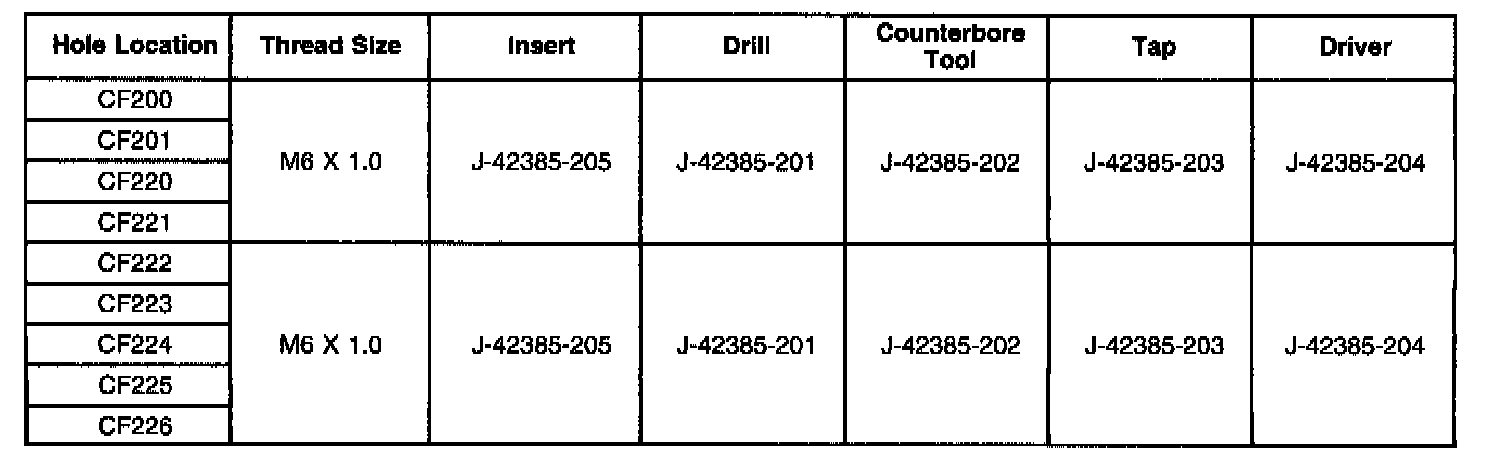

LEFT CYLINDER HEAD CAM COVER FACE









LEFT CYLINDER HEAD CAM COVER FACE

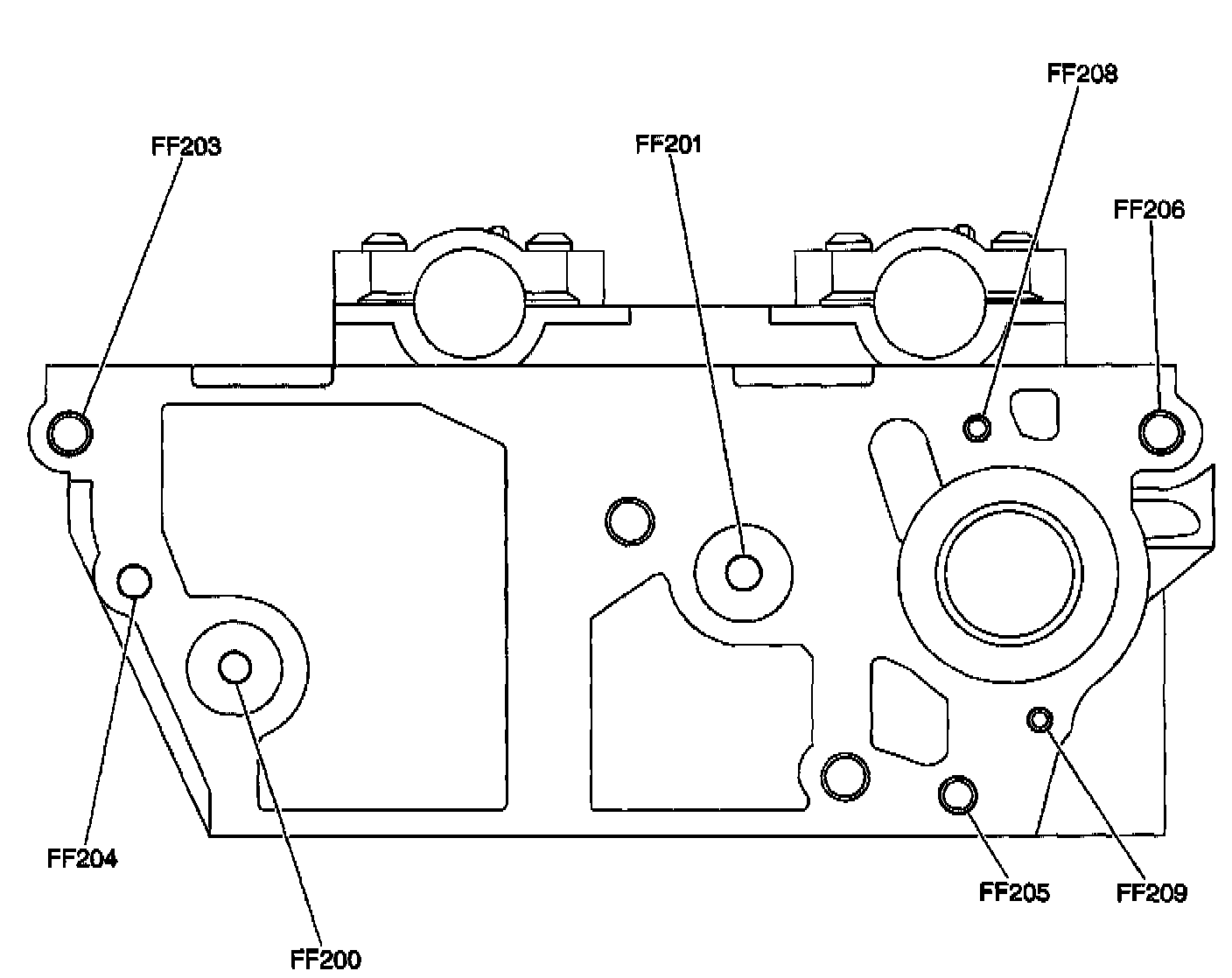

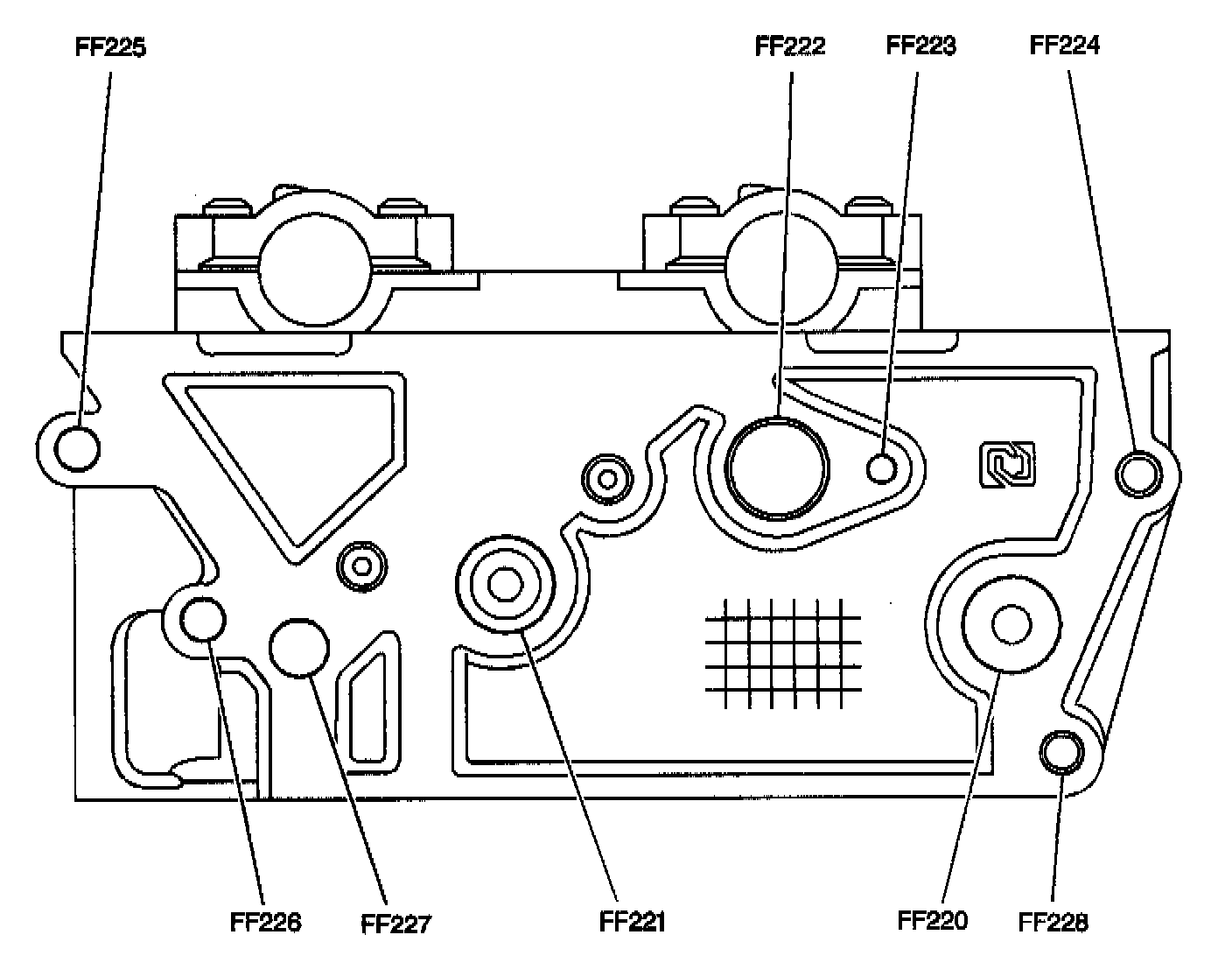

LEFT CYLINDER HEAD FRONT FACE






LEFT CYLINDER HEAD FRONT FACE






LEFT CYLINDER HEAD REAR FACE






LEFT CYLINDER HEAD REAR FACE

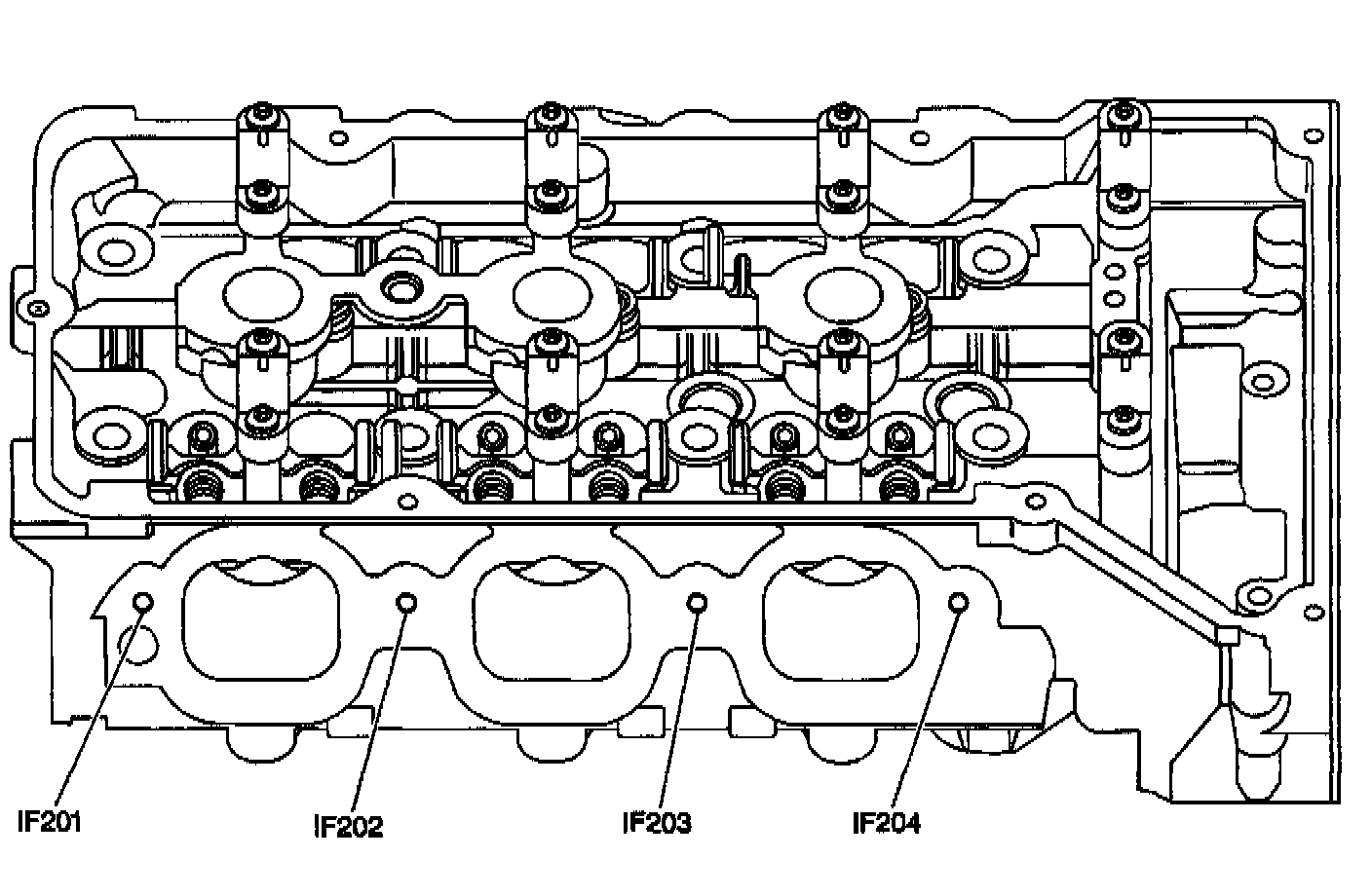

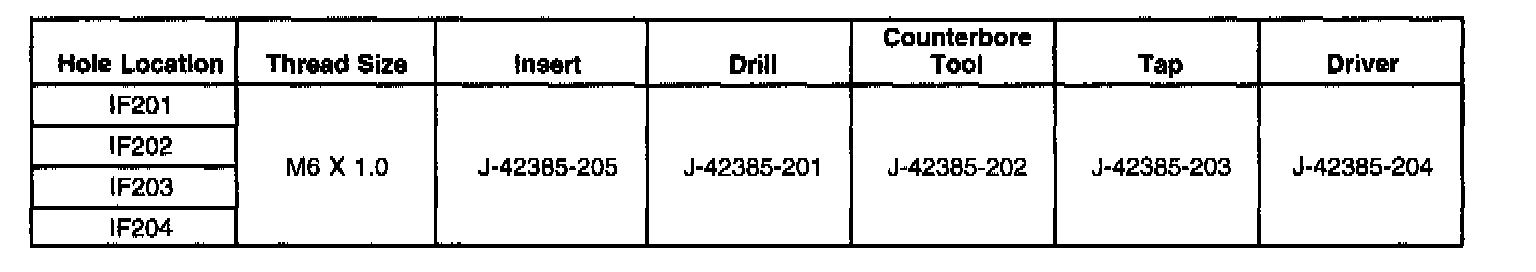

LEFT CYLINDER HEAD INTAKE FACE






LEFT CYLINDER HEAD INTAKE FACE

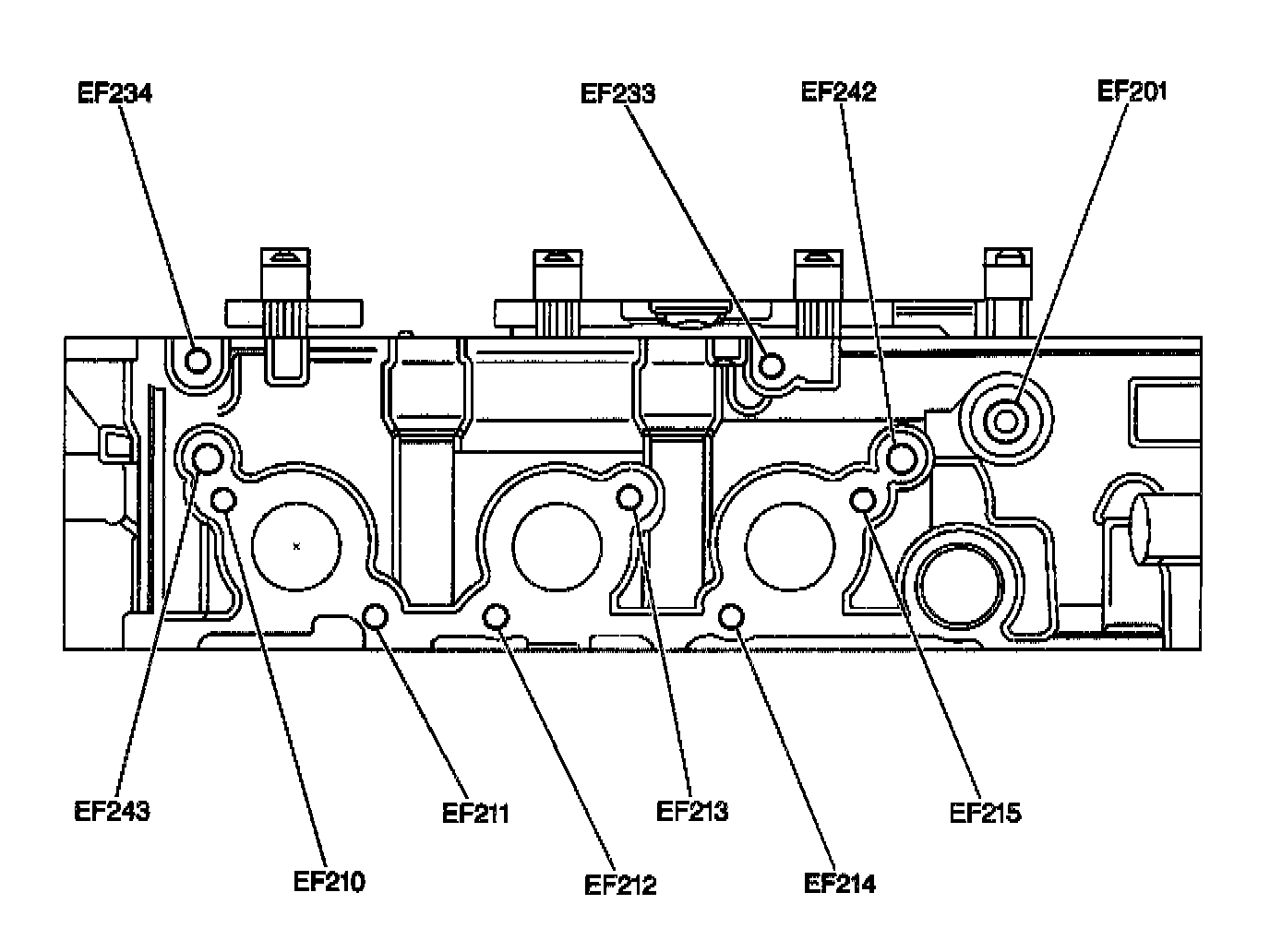

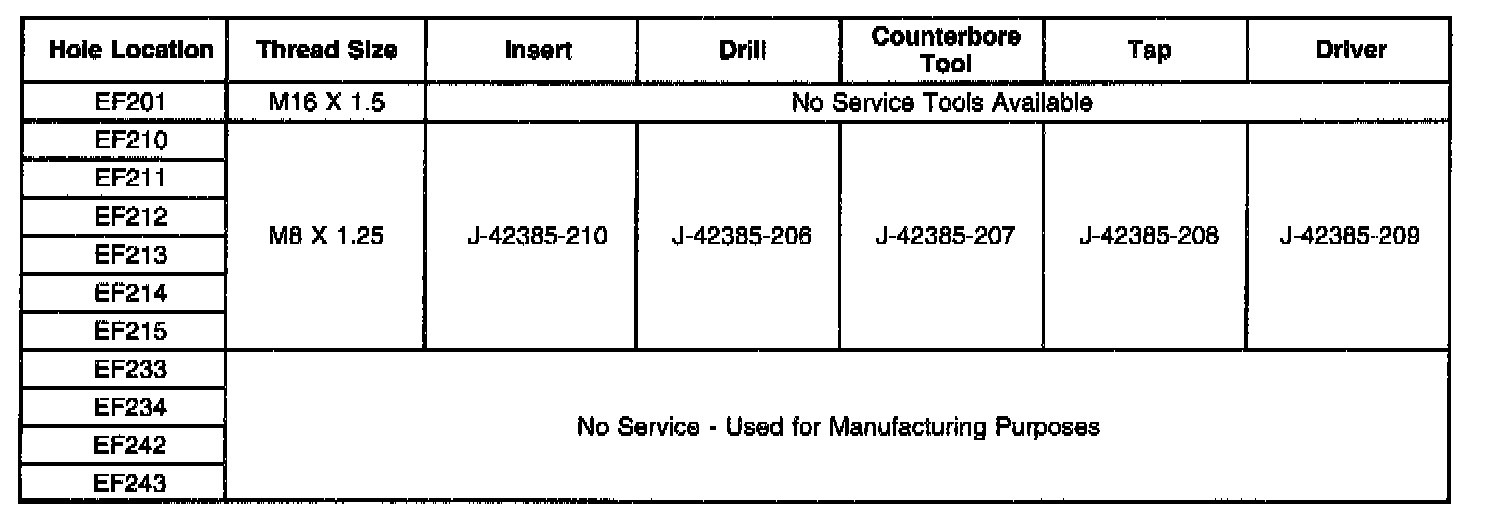

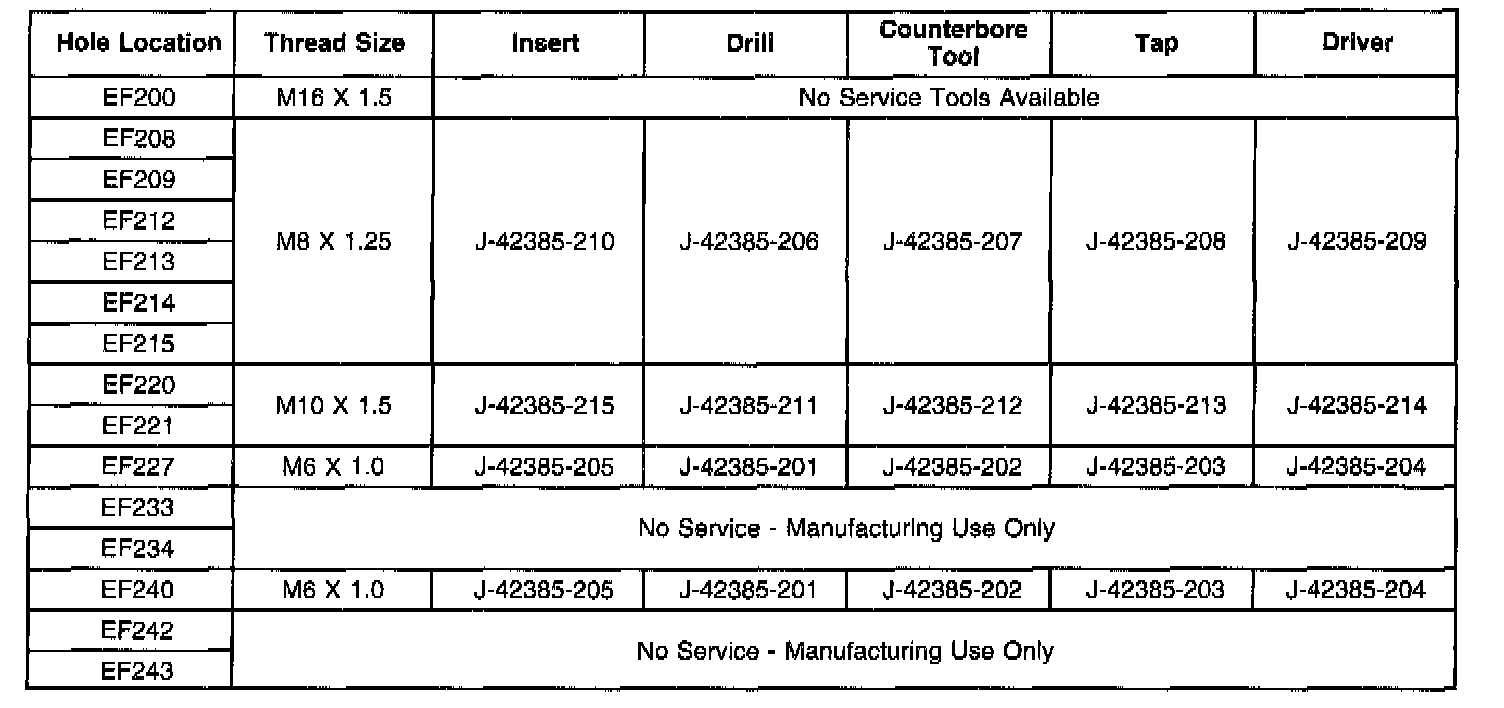

LEFT CYLINDER HEAD EXHAUST MANIFOLD FACE






LEFT CYLINDER HEAD EXHAUST MANIFOLD FACE

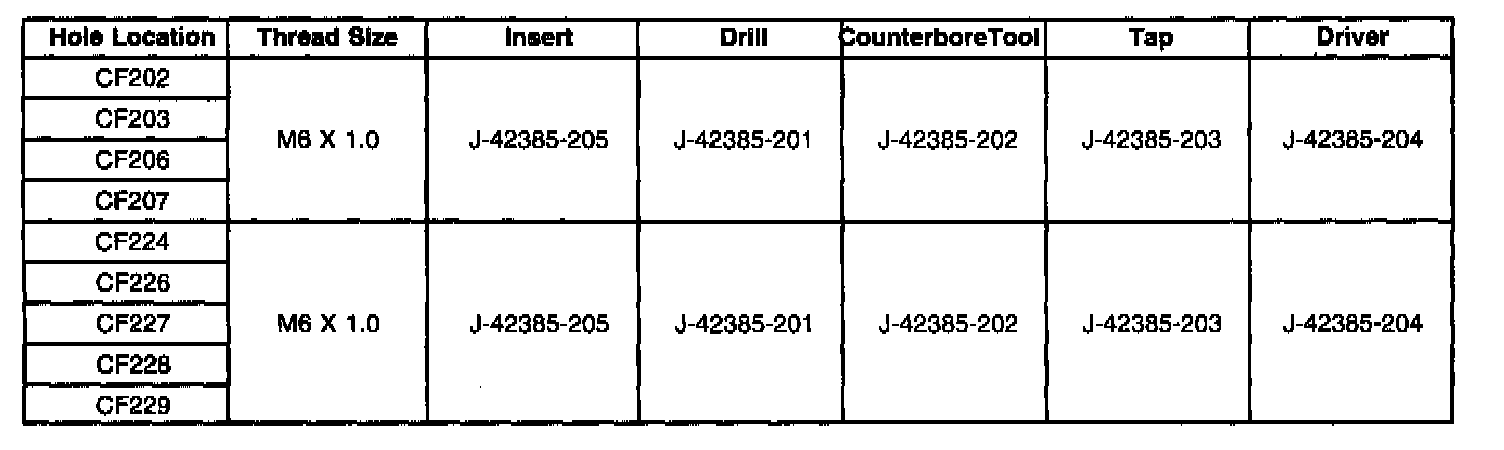

RIGHT CYLINDER HEAD CAM COVER FACE









RIGHT CYLINDER HEAD CAM COVER FACE

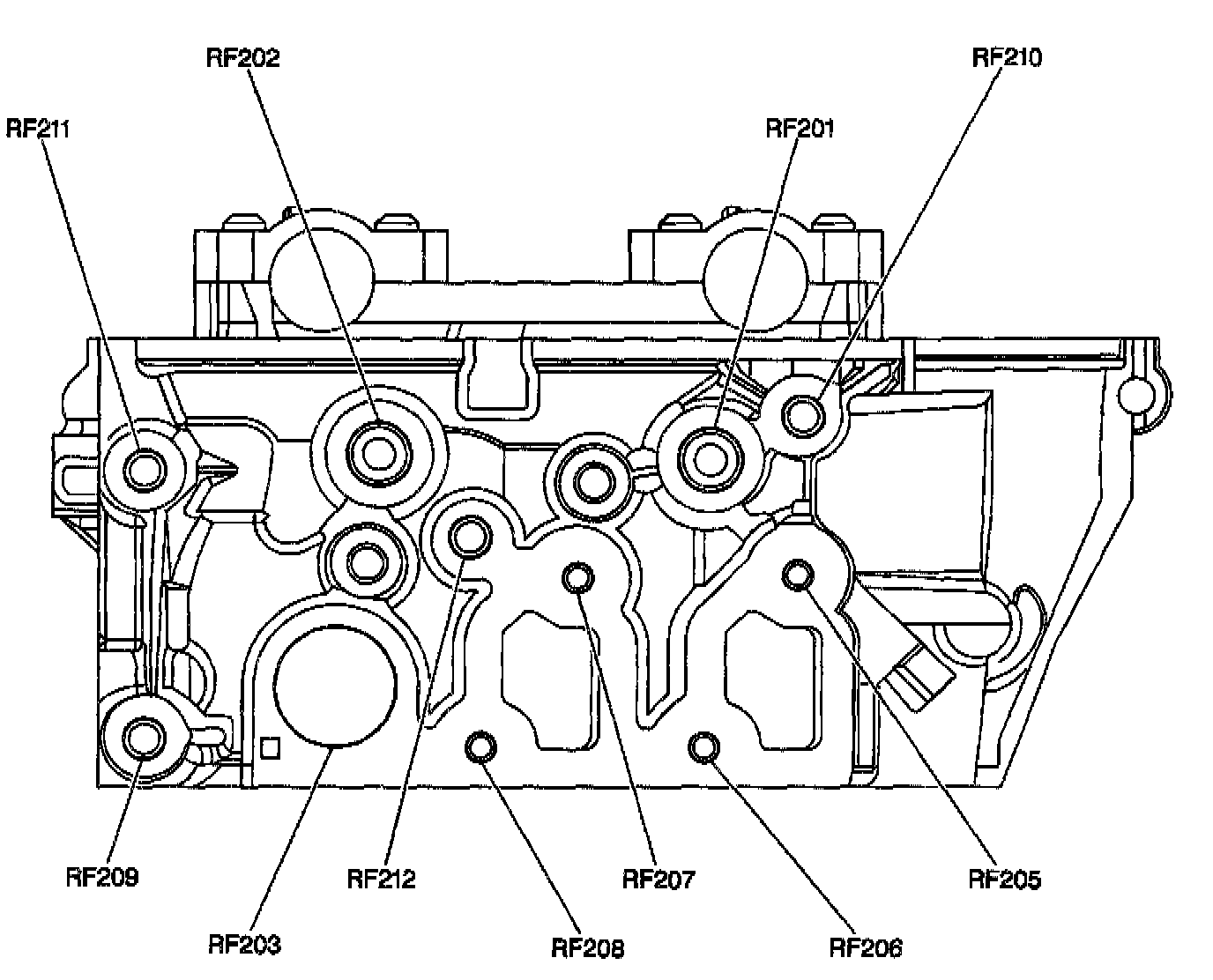

RIGHT CYLINDER HEAD FRONT FACE






RIGHT CYLINDER HEAD FRONT FACE

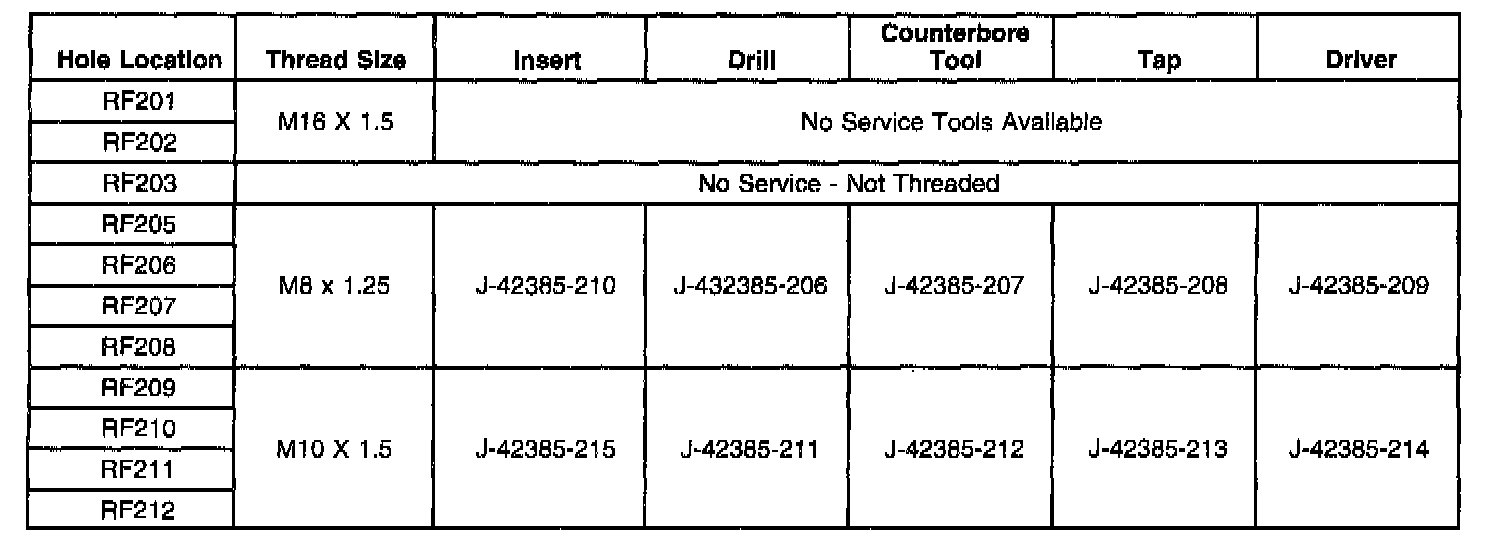

RIGHT CYLINDER HEAD REAR FACE






RIGHT CYLINDER HEAD REAR FACE

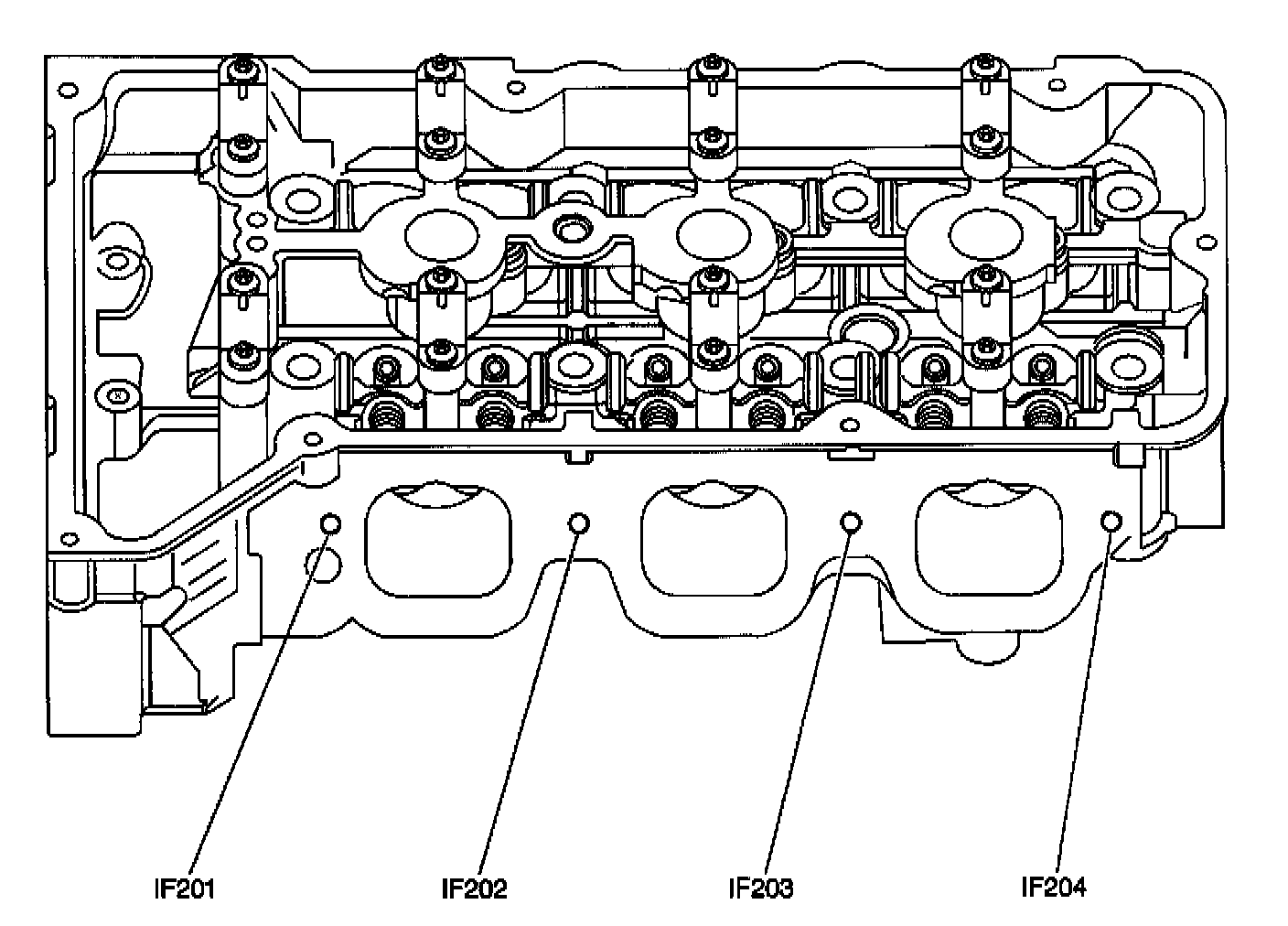

RIGHT CYLINDER HEAD INTAKE FACE






RIGHT CYLINDER HEAD INTAKE FACE

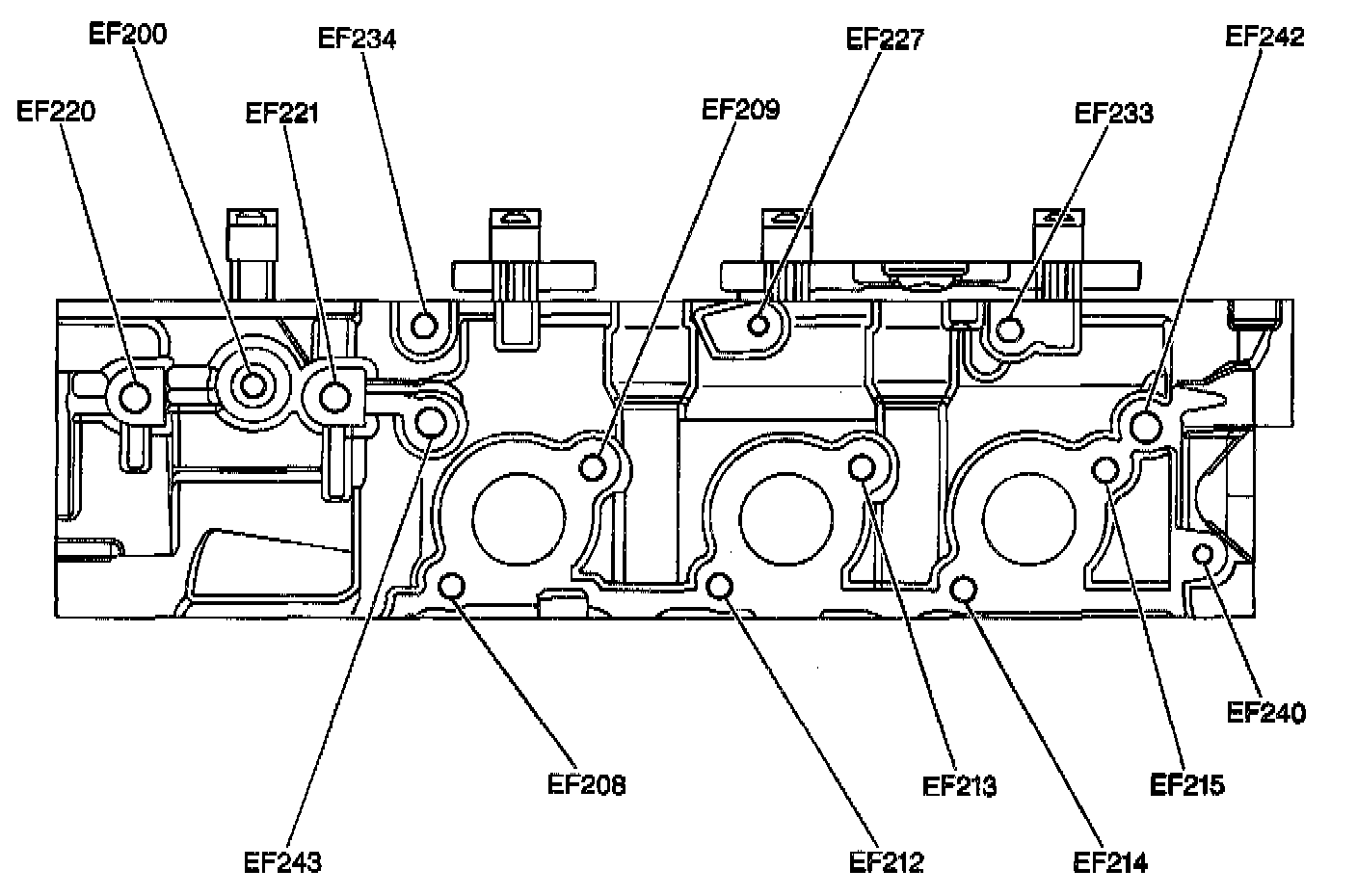

RIGHT CYLINDER HEAD EXHAUST MANIFOLD FACE






RIGHT CYLINDER HEAD EXHAUST MANIFOLD FACE
