Locations
>>
Component Locations
>>
Modules
>>
Ignition Control Module and Cover assembly
Ignition Control Module and Cover assembly

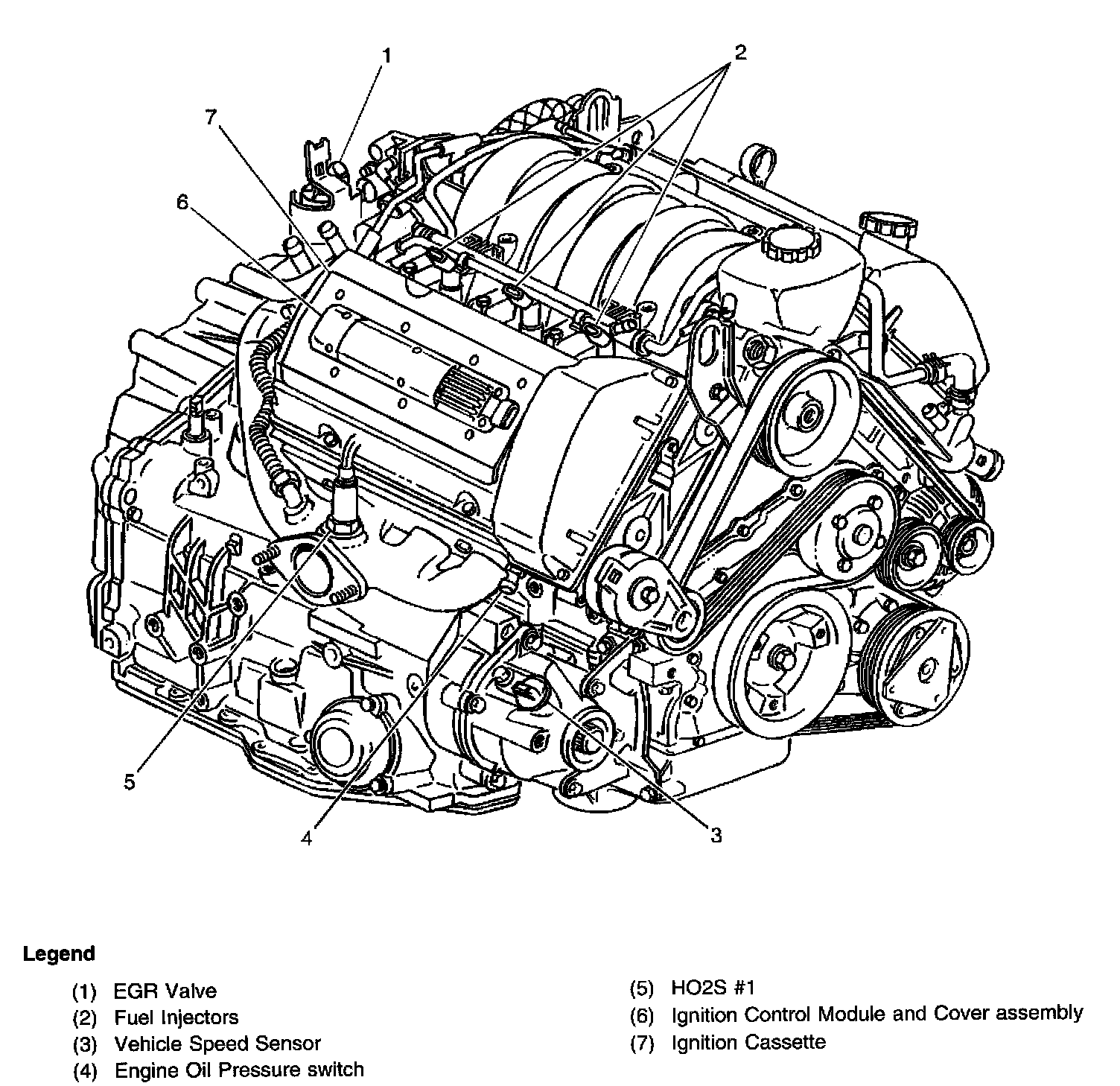

Engine Controls Components - Bank 1:

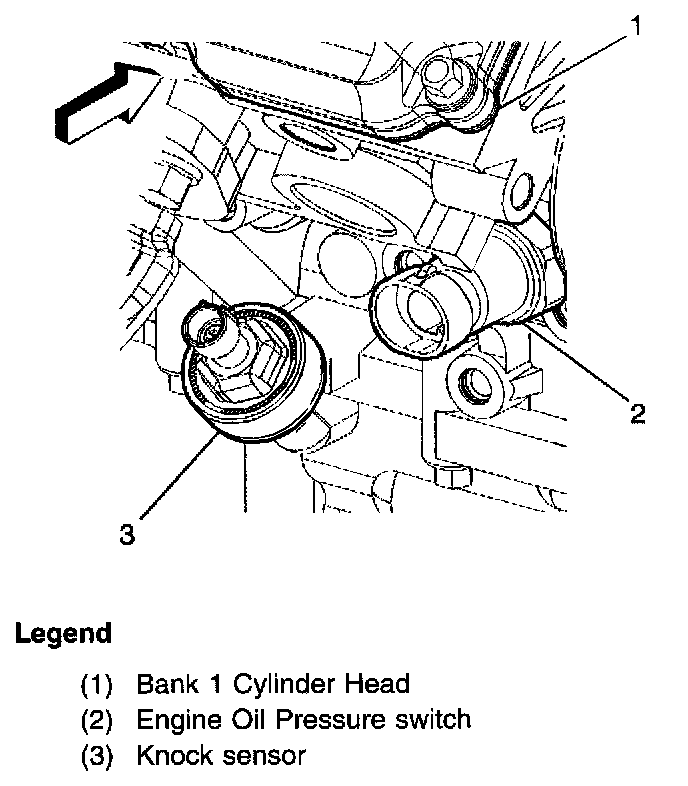

Knock Sensor, Oil Pressure Switch:
