Power Mirror Switch

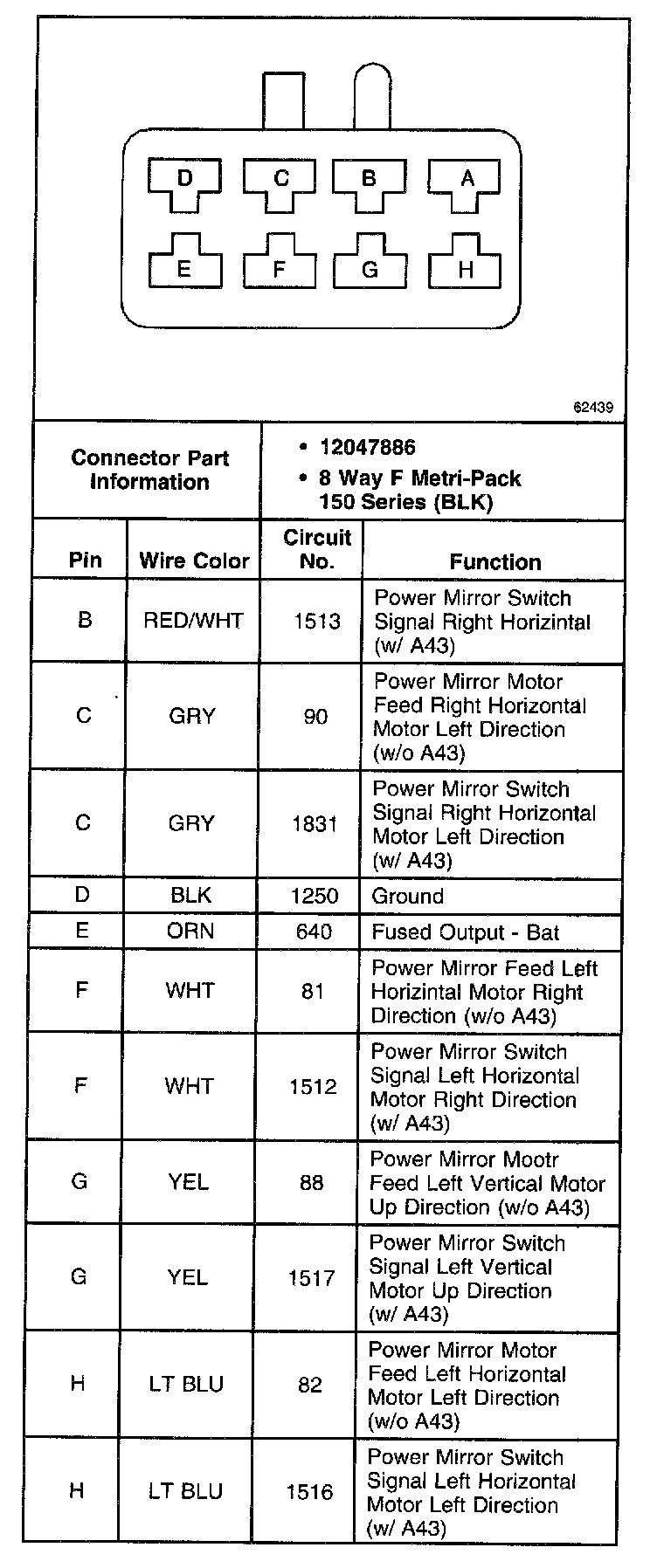

Mirror Switch (Oldsmobile) (Part 1 Of 2):

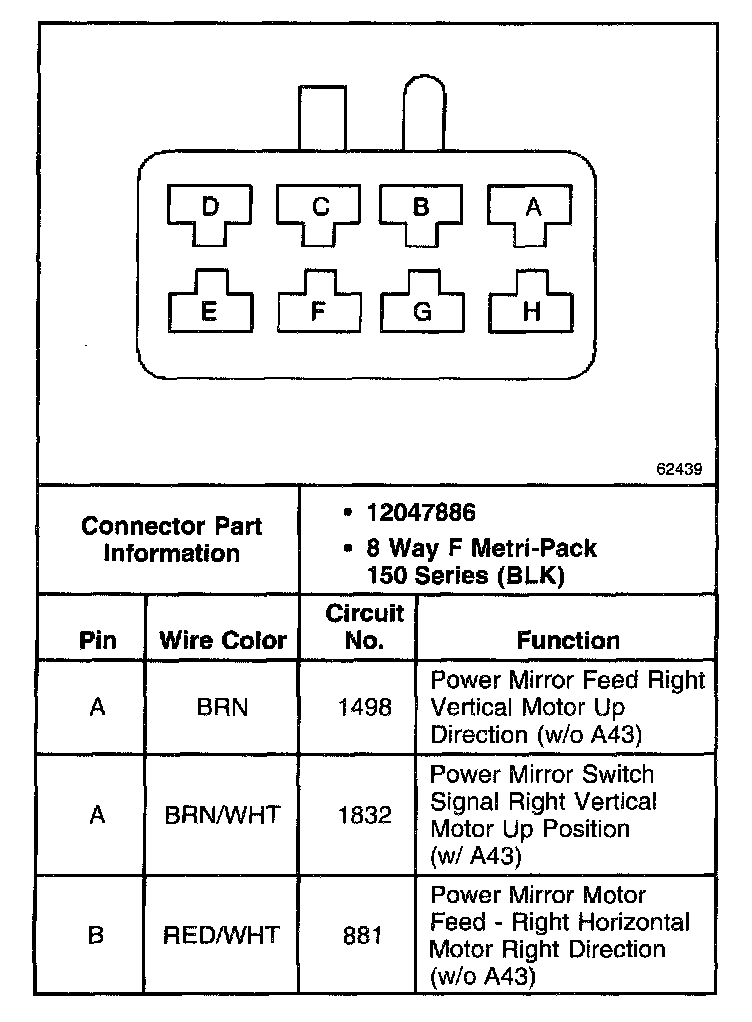

Mirror Switch (Oldsmobile) (Part 2 Of 2):
