Home >> Oldsmobile >> 1999 >> LSS V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram >> C1, LH

C1, LH

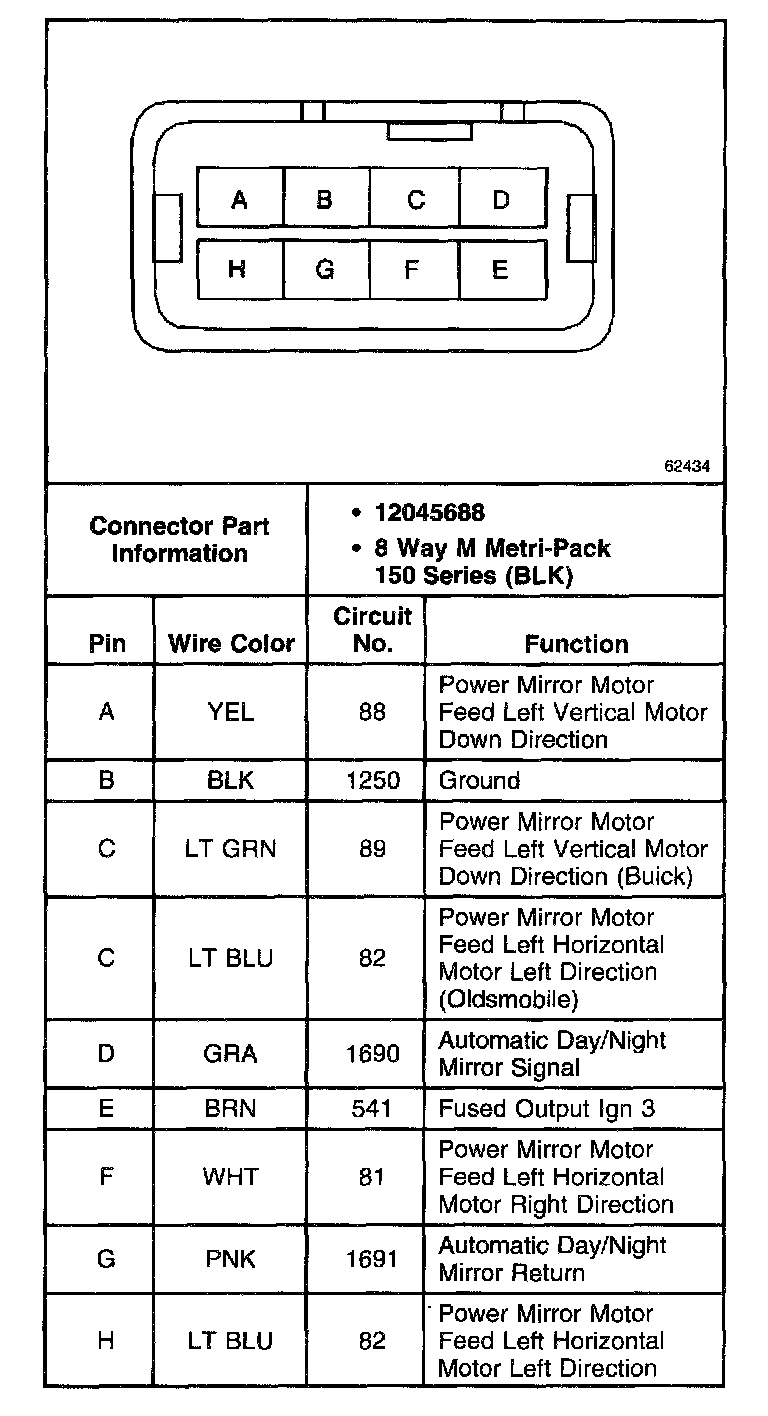

LH Outside Rearview Mirror C1:

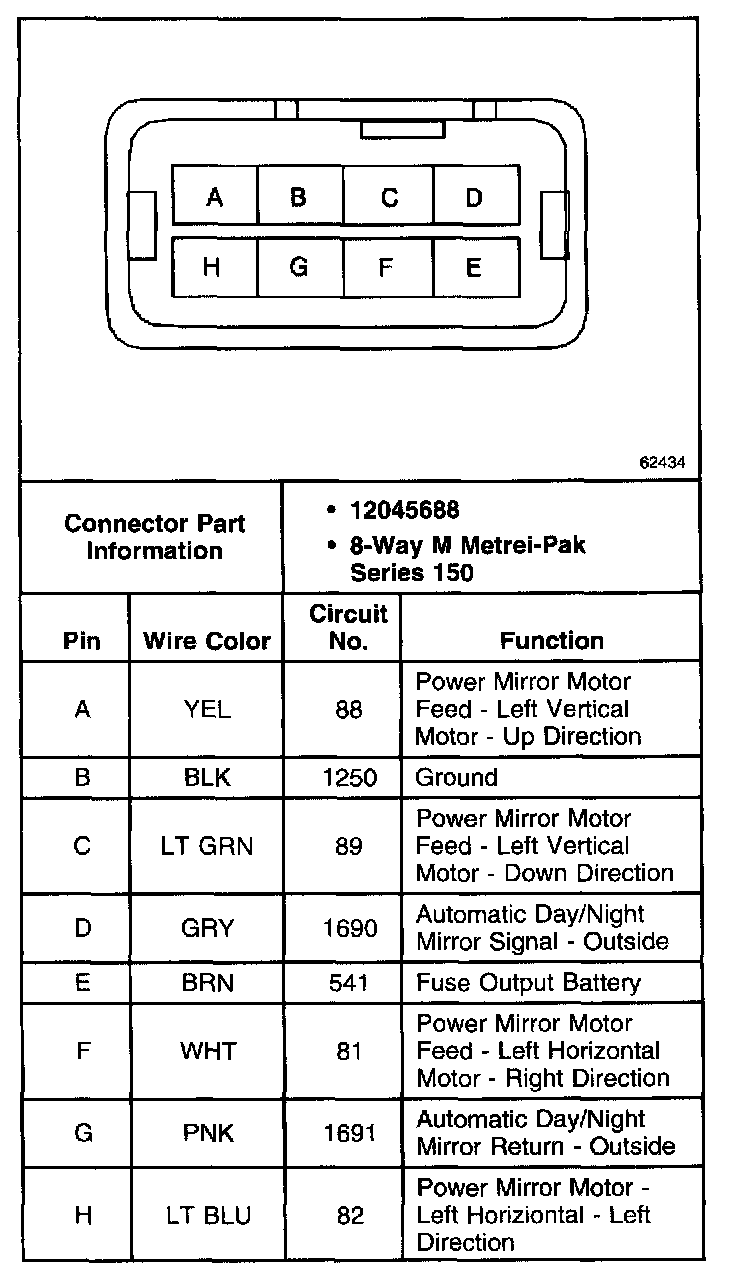

LH Outside Rearview Mirror C1:
