Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1999
>>
LSS V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>
C2, LH
C2, LH

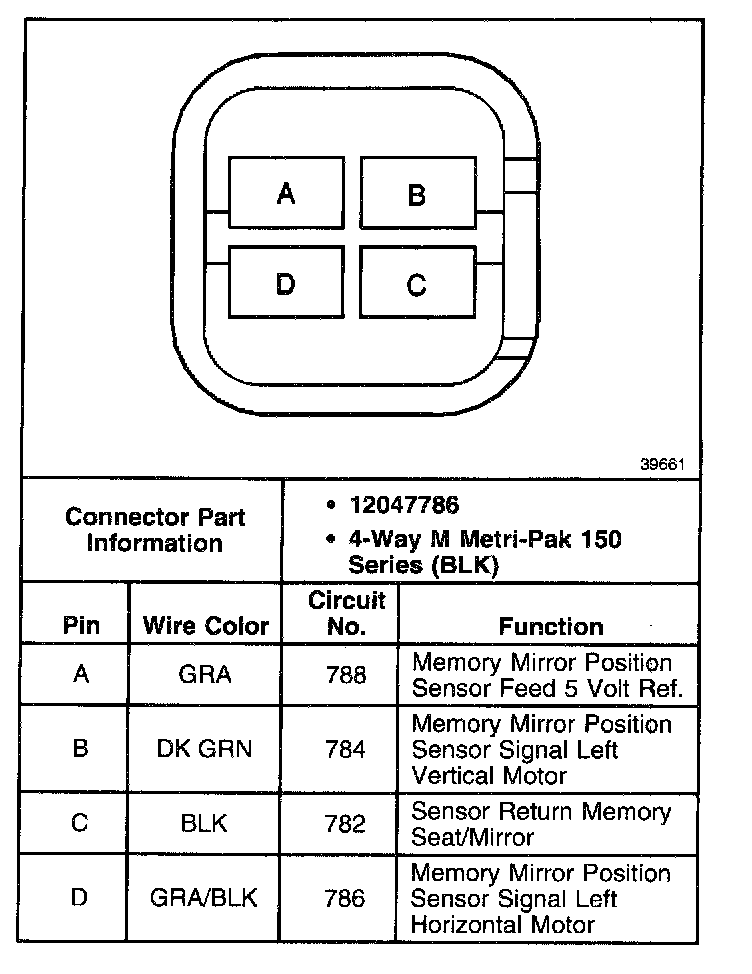

LH Outside Rearview Mirror C2:
