Home >> Oldsmobile >> 1999 >> LSS V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Switch >> Power Door Lock Switch, LH Front

Power Door Lock Switch, LH Front

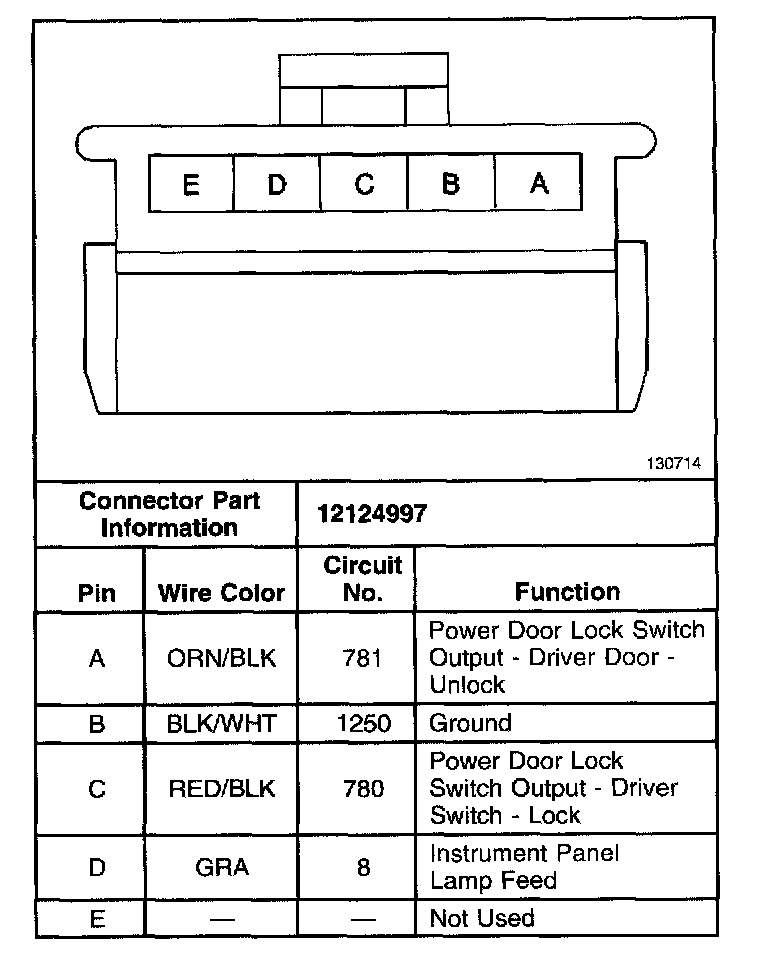

LH Front Power Door Lock Switch (Oldsmobile, Buick):
