Antenna Module Replacement

Antenna Module Replacement


Removal

1. Remove the right rear quarter upper trim panel.
2. Disconnect the rear window defog connectors from the glass.






3. Disconnect the body wiring harness connector.

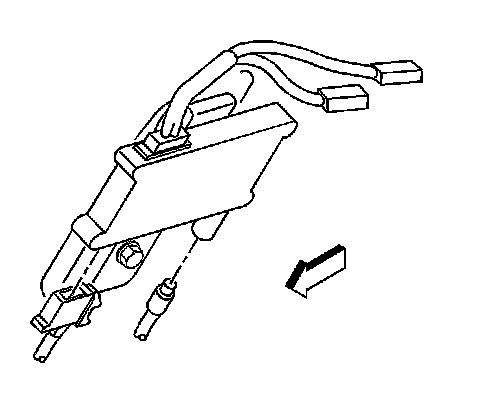

4. Disconnect the radio antenna cable.

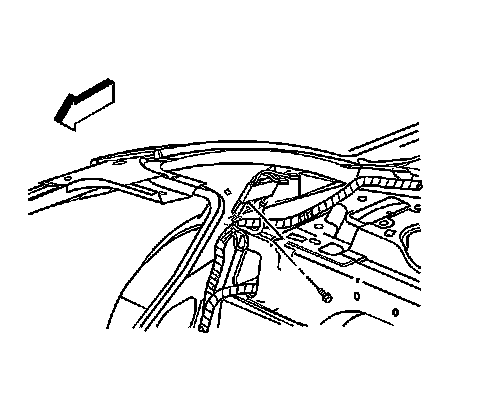

5. Remove the bolt.

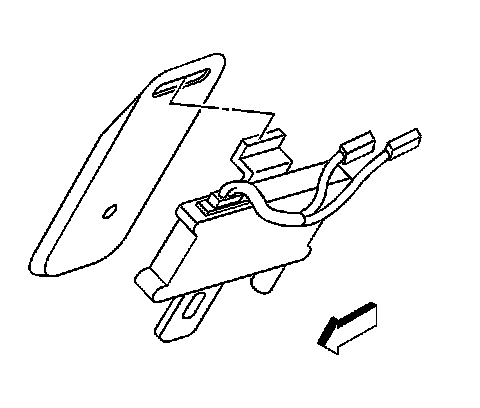

6. Disengage the tab on the module from the opening. Remove the radio antenna module.


Installation






1. Insert the tab on the module to the opening






2. Install the radio antenna module bolt.

Tighten the bolt to 6�Nm (53�lb�in).

3. Attach the radio antenna cable.






4. Attach the body wiring harness connector.
5. Attach the rear window defog connectors to the glass.
6. Install the right rear quarter upper trim panel.
