72. Oil Pump Installation

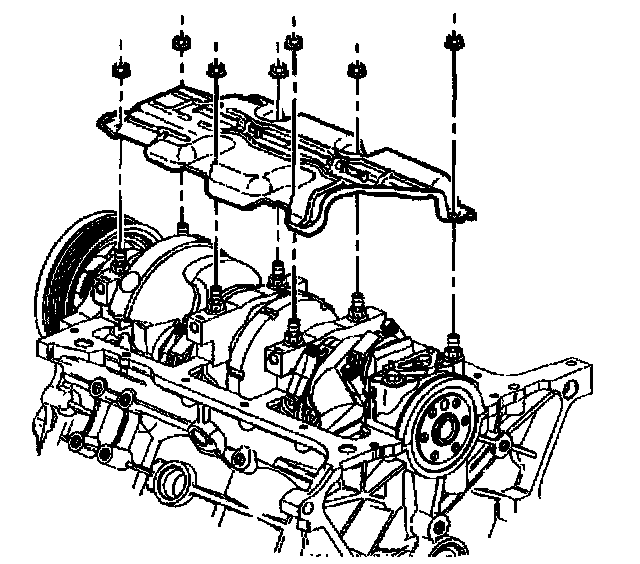

1. Install the crankshaft oil deflector.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the crankshaft oil deflector nuts.
^ Tighten the crankshaft oil deflector nuts to 25 Nm (18 ft. lbs.).

Important: Do not reuse the oil pump driveshaft retainer. During assembly, install a NEW oil pump driveshaft retainer.

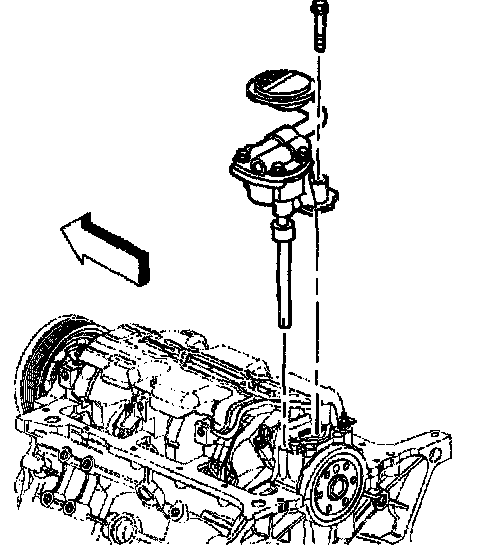

3. Install the oil pump.
4. Position the oil pump onto the pins.

Notice: Refer to Fastener Notice in Service Precautions.

5. Install the oil pump bolt attaching the oil pump to the rear crankshaft bearing cap.
^ Tighten the oil pump bolt to 41 Nm (30 ft. lbs.).
