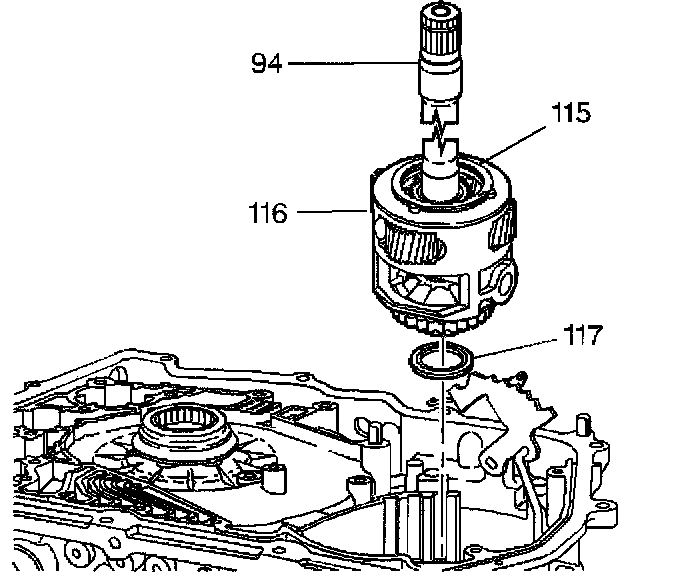

33. Output Shaft and Final Drive Assembly Removal
1. Remove, as one unit, the output shaft (94), the final drive assembly (116), and the final drive sun gear (115).
2. If the differential carrier to case thrust bearing (117) did not remain with the final drive assembly (116), remove the differential carrier to case thrust bearing (117).
