Body and Frame: Adjustments

Sheet Metal Adjustment

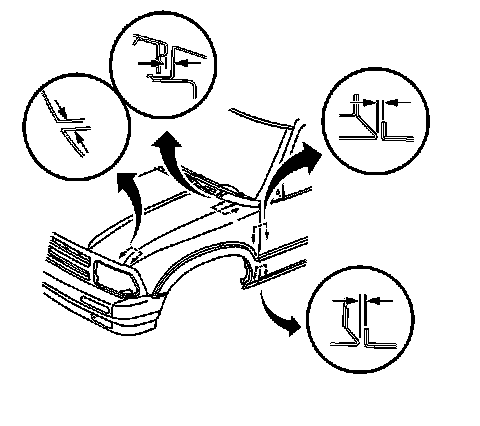

Aligning Sheet Metal




1. Start alignments at the fenders where the fenders meet the front edge of the doors. Work towards the front of the vehicle.
2. Align the rear edge of the fender to within 4-6 mm (0.16-0.24 in). Ensure that the fender is parallel to the door.
3. Align each side of the fender to within 4-6 mm (0.16-0.24 in).
4. You may need to adjust the front end sheet metal as a unit under the following conditions:

* The hood is difficult to center.
* The hood is out of square.

Adjustment Procedure

1. Loosen the radiator support bolts.
2. Lightly push the sheet metal into the proper position.
3. Tighten the radiator support bolts.
